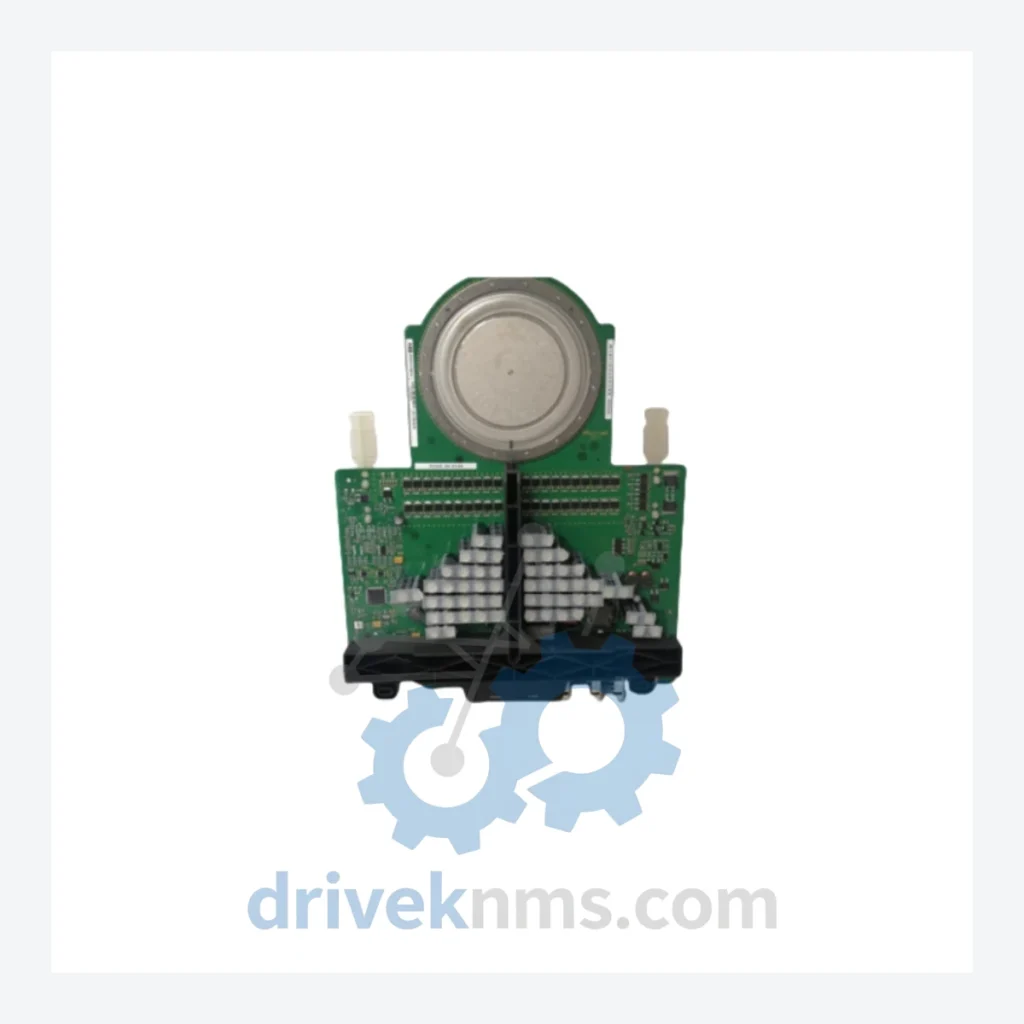

ABB 5SHY IGCT Modules: 3BHB020720R0002 5SHY3545L0016

Technical Dossier

Product Details And Specifications

ABB 5SHY Series Technical Notes

The ABB 5SHY series represents ABB's Integrated Gate-Commutated Thyristor (IGCT) product line, engineered for high-power industrial conversion applications. These devices are deployed globally in heavy-industry sectors including petrochemical plants, nuclear power stations, offshore oil platforms, steel rolling mills, and large-scale variable-speed drive systems. The 5SHY series occupies a critical position in ABB's power semiconductor portfolio, offering high blocking voltage, low conduction losses, and robust short-circuit turn-off capability. Units such as the 3BHB020720R0002 5SHY3545L0016 are found in ABB ACS6000, ACS5000, and PCS6000 medium-voltage drive platforms, as well as STATCOM and active front-end rectifier systems. The series is characterized by press-pack construction, enabling double-sided cooling and high power density in converter stacks.

The Evolution of 5SHY Architecture

ABB introduced the IGCT concept in the mid-1990s as a direct response to the limitations of GTO (Gate Turn-Off Thyristor) technology in medium-voltage drives. The first-generation 5SHY devices required external snubber circuits and had relatively constrained di/dt ratings. Subsequent generations progressively integrated the gate unit closer to the silicon wafer, reducing stray inductance and enabling higher switching frequencies without sacrificing blocking voltage.

The 5SHY3545 sub-family, to which the 5SHY3545L0016 belongs, targets the 4500 V blocking voltage class with optimized gate drive integration. Later variants in the 5SHX and 5SHY4045 families extended the voltage range to 4500–6500 V. Compatibility between generations is not guaranteed at the assembly level; press-pack diameter, gate connector pinout, and thermal interface specifications must be verified before substitution. Systems originally designed around early 5SHY variants may require gate unit firmware updates when migrating to current production equivalents.

5SHY Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the ABB 5SHY IGCT series. Each entry reflects a distinct voltage, current, or package configuration. Substitution between part numbers requires engineering validation.

5SHY3545L0016 (3BHB020720R0002): 4500 V / 3600 A asymmetric IGCT, press-pack, ACS6000 stack use
5SHY3545L0014: 4500 V IGCT variant, reduced gate drive current rating, converter stack
5SHY3545L0020: 4500 V / high-current IGCT, enhanced thermal interface, drive retrofit
5SHY4045L0003: 4500 V / 4000 A IGCT, large-diameter press-pack, MW-class drives
5SHY4045L0006: 4500 V IGCT, optimized for STATCOM reactive power compensation
5SHY4045L0008: 4500 V / 4000 A, dual-gate configuration, active front-end rectifier
5SHY4045L0010: 4500 V IGCT, extended reverse blocking, regenerative drive topology
5SHY5045L0003: 4500 V / 5000 A IGCT, heavy traction and steel mill main drive
5SHY5045L0006: 4500 V / 5000 A, low-loss silicon, high-cycle industrial press drive
5SHY6545L0003: 6500 V / 3600 A IGCT, high-voltage class, offshore platform MV drive
5SHY6545L0006: 6500 V IGCT, STATCOM and SVC reactive compensation systems
5SHY6545L0008: 6500 V / 3600 A, nuclear auxiliary power conversion, press-pack
5SHY6545L0010: 6500 V IGCT, petrochemical compressor drive, high-reliability grade
5SHY6545L0012: 6500 V / 4000 A IGCT, large converter stack, rolling mill main drive
5SHY7545L0003: 6500 V / 5200 A IGCT, ultra-high-power class, grid-tie inverter stack
5SHY7545L0006: 6500 V / 5200 A, advanced gate unit, PCS6000 wind power converter

Sourcing Hard-to-Find & Obsolete 5SHY Parts

The 5SHY series has entered a mature-to-declining lifecycle phase. ABB has progressively shifted new platform designs toward IGBT-based press-pack stacks and SiC hybrid modules. However, the installed base of ACS6000, ACS5000, and PCS6000 systems running 5SHY devices remains substantial, with many units operating in facilities where full drive replacement is not economically or operationally feasible within a 5–15 year horizon.

Quality Control for the 5SHY Range

IGCT press-pack devices present unique verification challenges compared to standard module-type semiconductors. DriveKNMS applies a multi-stage inspection protocol specific to the 5SHY series:

Visual and mechanical inspection: Press-pack contact surfaces are examined under magnification for pitting, contamination, or deformation. Clamping torque specifications per ABB documentation are verified.
Static parameter testing: Off-state blocking voltage (VDRM/VRRM), on-state voltage drop (VT), and gate trigger current (IGT) are measured against datasheet limits at controlled temperature.
Gate unit interface verification: Gate connector continuity and insulation resistance between gate and cathode are confirmed. Gate unit firmware version compatibility with the target drive platform is cross-referenced.
Thermal interface assessment: Contact resistance between press-pack faces and heat sink surfaces is measured using thermal imaging under controlled clamping load.
Functional stack simulation: Where test equipment permits, units are subjected to low-energy gate pulse testing to confirm turn-on and turn-off response without full-power energization.
