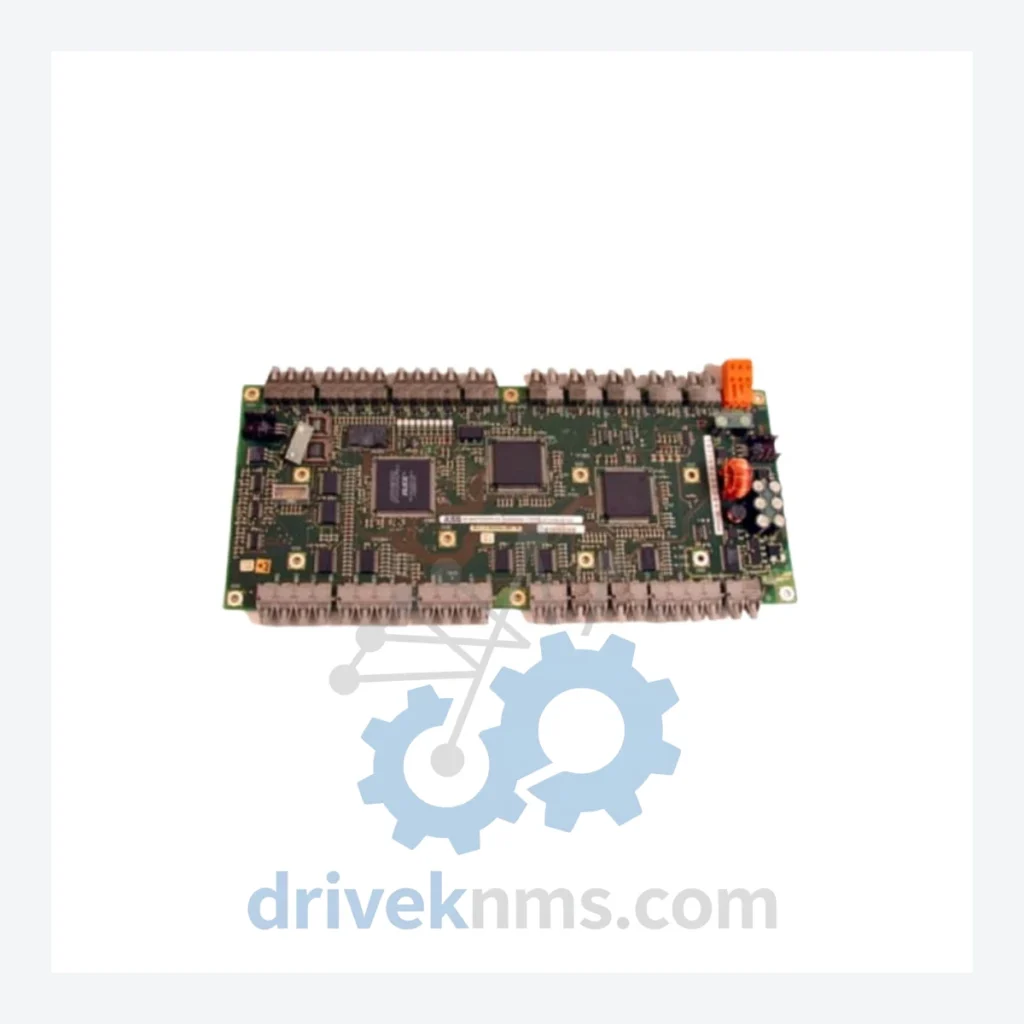

ABB UFC760 Modules: 3BHE004573R0143 UFC760 BE143 Interface Board

Technical Dossier

Product Details And Specifications

ABB UFC760 Series Technical Notes

The Evolution of UFC760 Architecture

The UFC760 designation belongs to ABB's UNITROL and Advant/AC800 control lineage. Early iterations of this interface board architecture emerged alongside ABB's Advant Controller 450 (AC450) platform in the late 1990s, where backplane communication relied on proprietary ABB Modulebus. As ABB transitioned its DCS portfolio toward the AC800M platform (introduced circa 2000), the UFC760 series was refined to support higher-bandwidth backplane communication, improved EMC shielding, and extended operating temperature ranges suitable for harsh industrial enclosures.

The BE143 variant (part number 3BHE004573R0143) represents a mid-generation revision incorporating updated FPGA logic for improved fault diagnostics and compatibility with later firmware revisions of the AC800M controller family. Compatibility considerations are critical: UFC760 boards are revision-sensitive. BE143 boards are not universally interchangeable with earlier BE-suffix variants (e.g., BE101, BE111) without verifying firmware compatibility matrices published in ABB's System Version Description (SVD) documents. Integrators operating mixed-revision backplanes must validate slot-level compatibility before substitution.

As of 2026, the UFC760 series has entered the mature/end-of-life phase of its product lifecycle. ABB has transitioned active development to the AC800M High Integrity (AC800M HI) and System 800xA next-generation platforms. However, the installed base of UFC760-dependent systems remains substantial, and ABB's long-term service agreements (LTSA) and third-party MRO suppliers continue to support this series through spare parts provisioning, repair, and functional testing.

UFC760 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced part numbers within the ABB UFC760 and closely associated interface board series used in AC800M, UNITROL, and Advant DCS architectures. Each entry reflects a distinct hardware revision or functional variant:

3BHE004573R0143 UFC760 BE143: Backplane interface board, BE143 revision, AC800M DCS communication bridge module.
3BHE004573R0101 UFC760 BE101: Early-revision interface board; original production release for AC800M backplane integration.
3BHE004573R0111 UFC760 BE111: Intermediate revision with updated EMC filtering and improved signal integrity on Modulebus.
3BHE004573R0121 UFC760 BE121: Revision incorporating enhanced thermal management for high-ambient enclosure environments.
3BHE004573R0131 UFC760 BE131: Firmware-updated variant supporting extended diagnostic register set for AC800M v5.x and above.
3BHE004573R0151 UFC760 BE151: Later production revision; improved FPGA logic for fault isolation and backplane arbitration.
3BHE004573R0161 UFC760 BE161: Final production revision in the UFC760 BE-series; highest firmware compatibility range.
3BHE006224R0001 UFC760 BE001: Alternate part number variant; used in specific UNITROL 5000 excitation controller configurations.
3BHE022294R0101 UFC760 BE101: Reissued part number for UFC760 interface board under updated ABB supply chain classification.
3BHE004573R0001 UFC760: Base-level interface board without BE-suffix designation; early Advant platform deployment.
3BHE013084R0001 UFC760 BE001: Interface board variant for AC800F (Field Controller) backplane communication.
3BHE013084R0002 UFC760 BE002: Revised AC800F-compatible interface board with updated connector pinout.
3BHE022294R0001 UFC760: Alternate supply classification for UFC760 base module; cross-referenced in ABB spare parts catalogs.
3BHE004573R0102 UFC760 BE102: Minor revision of BE101; corrects a known signal timing issue on high-speed Modulebus configurations.
3BHE004573R0112 UFC760 BE112: Minor revision of BE111; updated conformal coating specification for offshore/humid environments.
3BHE004573R0122 UFC760 BE122: Minor revision of BE121; revised capacitor specification for extended service life.
3BHE004573R0132 UFC760 BE132: Minor revision of BE131; corrected FPGA bitstream addressing a rare backplane arbitration fault.

Quality Control for the UFC760 Range

UFC760 interface boards present specific test challenges due to their role as backplane arbitration and communication controllers. DriveKNMS applies a multi-stage quality control protocol to all UFC760 units entering inventory:

Visual Inspection: Full board examination under magnification for solder joint integrity, capacitor condition, connector pin alignment, and conformal coating coverage. Boards with evidence of thermal stress, corrosion, or mechanical damage are rejected at this stage.

Electrical Continuity Testing: All backplane connector pins are verified for continuity and isolation resistance against the UFC760 reference schematic. Open circuits and cross-faults are identified and documented.

Functional Bench Test: UFC760 boards are installed in a reference AC800M test rack running validated firmware. Modulebus communication, diagnostic register read/write cycles, and fault relay outputs are exercised through a standardized test sequence. Pass criteria are defined against ABB's published functional specification.

Firmware Revision Verification: FPGA and embedded firmware versions are read and recorded. Boards are classified by compatible firmware range to ensure correct matching to customer system versions.

Burn-In Screening: Selected units undergo extended power-on testing at elevated ambient temperature to screen for latent component failures prior to dispatch.
