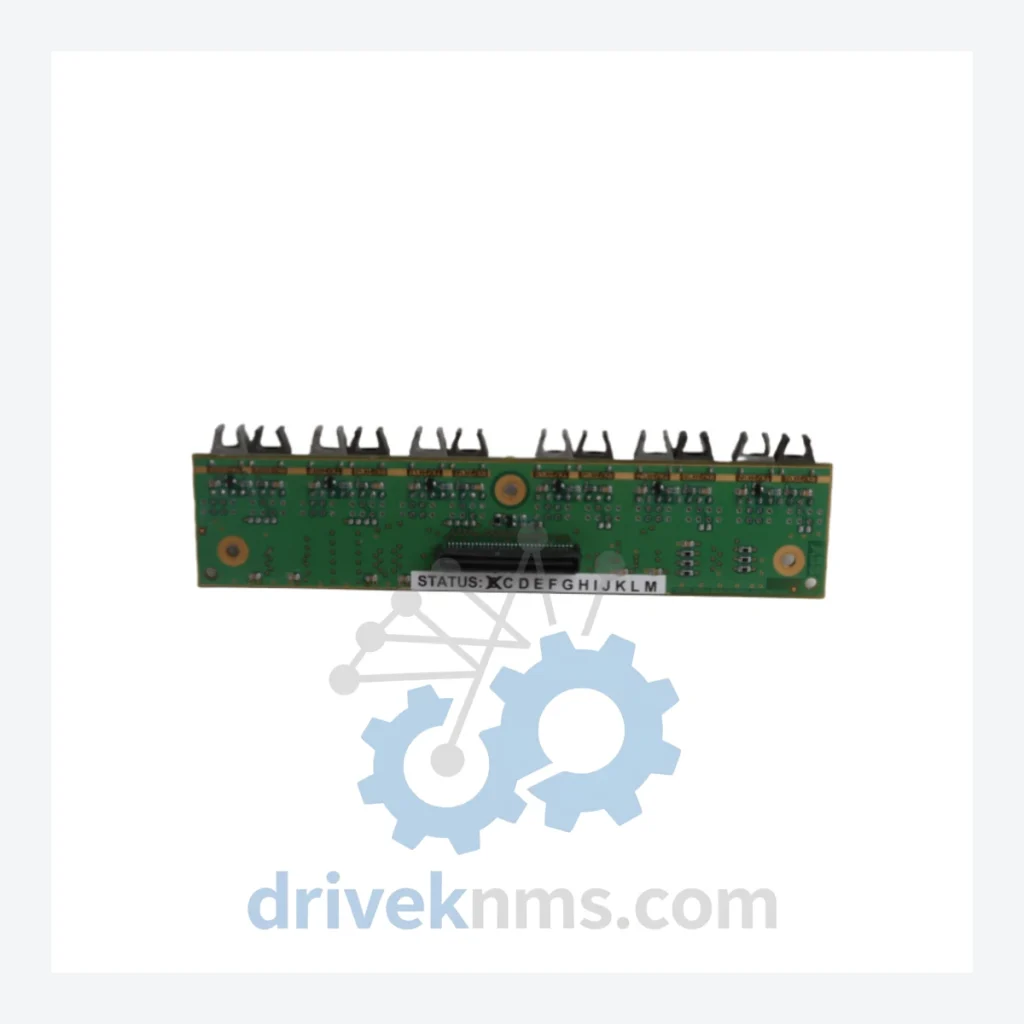

ABB 3BHE012049R0101 Optical Module – Obsolete UFD128A101 Spare Part

Technical Dossier

Product Details And Specifications

ABB 3BHE012049R0101 Optical Module – Obsolete UFD128A101 Spare Part

When the UFD128A101 optical module fails inside a legacy ABB high-voltage drive or excitation control system, the consequences extend far beyond a single component. The fiber optic communication link it maintains is the backbone of gate pulse transmission between the control board and the power electronics stack. Without it, the entire drive train stops. For plant operators running ABB UNITROL 5000, UNITROL 6000, or ACS 6000 platforms, a failed 3BHE012049R0101 does not trigger a simple repair — it triggers a system-level crisis.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The 3BHE012049R0101 UFD128A101 is not a peripheral accessory. In ABB's UNITROL and ACS 6000 drive architectures, the fiber optic module is the sole communication path between the digital control layer and the high-power switching stage. The control board issues firing commands; the UFD128A101 converts those commands into optical signals and transmits them across the isolation barrier to the IGCT or thyristor gate drivers. Remove this module from the signal chain and the drive cannot operate.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Condition & Reliability Assurance

Every 3BHE012049R0101 unit processed by DriveKNMS passes a structured five-stage inspection protocol before it is offered for sale. This protocol was developed specifically for obsolete power electronics components where field failure carries serious operational consequences.

Stage 1 – Visual and Mechanical Inspection: Full examination of the PCB surface, connector housings, and fiber optic ports for physical damage, corrosion, or contamination. Units with compromised connector ferrules are rejected at this stage.

Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point in stored power electronics. Each capacitor on the board is checked for ESR deviation, capacitance loss, and visible signs of electrolyte migration. Boards with out-of-specification capacitors are either recapped with equivalent-rated components or removed from serviceable inventory.

Stage 3 – Firmware and Configuration Verification: Where applicable, the firmware revision is confirmed against the known-compatible version matrix for UNITROL 5000 / 6000 and ACS 6000 platforms. Mismatched firmware versions are flagged before dispatch review.

Stage 5 – Functional Signal Path Test: The optical transmit and receive path is verified using calibrated test equipment to confirm signal integrity within the manufacturer's original specification envelope.

Key Features for System Maintenance

For plants managing multiple UNITROL or ACS 6000 units across a site, standardizing on a small strategic spare pool — typically two to three UFD128A101 modules per drive population — eliminates the single-point-of-failure risk that this component represents. The modules are compact, require no special storage conditions beyond standard ESD-safe dry storage, and carry no shelf-life limitation when stored correctly.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through documented supply channels and carry traceable lot markings. Physical inspection of ABB-specific board markings, component date codes, and resin formulations is part of our intake process. We do not source from unverified secondary markets.

Can this module be used across different UNITROL variants?
Compatibility depends on the specific drive configuration and software version. Contact our technical team with your drive nameplate data and we will confirm compatibility before dispatch review.
