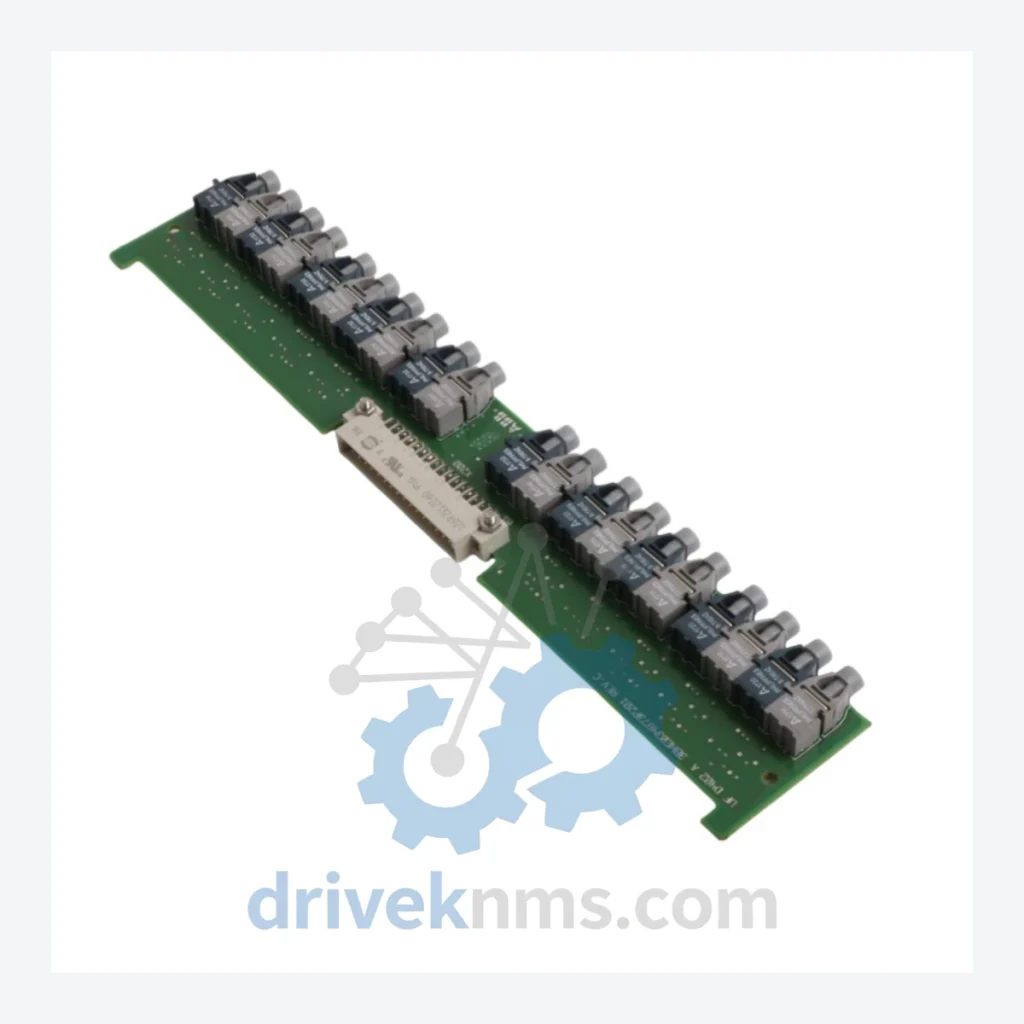

ABB UFD402A Series Modules: 3BHE034872R0101 UFD402A101

Technical Dossier

Product Details And Specifications

ABB UFD402A Series Technical Notes

The ABB UFD402A series is a family of excitation control and field flashing circuit boards deployed within ABB's UNITROL 5000 and AC800PEC-based generator excitation systems. These modules are installed across heavy industrial sectors including thermal power plants, hydroelectric stations, nuclear facilities, petrochemical refineries, and large-scale steel mills. The UFD402A series functions as the field discharge and crowbar protection interface, managing controlled de-excitation of synchronous generators during fault conditions, planned shutdowns, and load rejection events. Its role is safety-critical: incorrect field discharge can result in generator winding damage, insulation failure, or catastrophic rotor overvoltage. Installations span ABB UNITROL 5000, UNITROL 6000, and UNITROL 6080 excitation cubicles across Europe, Asia-Pacific, and the Americas, with documented deployments in facilities operated by major utilities and EPC contractors.

The Evolution of UFD402A Architecture

The UFD402A lineage traces to ABB's transition from analog thyristor-based excitation regulators (the UNITROL D and UNITROL F families) toward fully digital, fieldbus-integrated platforms in the late 1990s and early 2000s. Early field discharge boards in the UNITROL 5000 generation used discrete IGBT gate driver circuits with limited diagnostic feedback. The UFD402A generation introduced integrated fault logging, optocoupler-isolated gate drive outputs, and compatibility with the AC800PEC real-time controller via the DDCS (Distributed Drive Control System) fiber-optic communication backbone.

UFD402A Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB UFD402A / UNITROL excitation ecosystem. Each entry reflects a distinct hardware function within the excitation cubicle architecture.

3BHE034872R0101 UFD402A101: Field discharge circuit board, primary production variant, UNITROL 5000/6000 compatible.
3BHE034872R0201 UFD402A201: Field discharge board, revision 02, enhanced EMC shielding and updated gate driver topology.
3BHE022461R0101 UFD401A101: Predecessor field discharge module, UNITROL 5000 early-generation cubicles.
3BHE024577R0101 UFC760A101: Field current measurement board, analog output 4–20 mA, pairs with UFD402A in excitation loop.
3BHE022462R0101 UNS0108A-P: Power supply board for excitation control rack, 24 VDC regulated output.
3BHE014078R0001 SDCS-CON-4: AC800PEC control board, primary CPU for UNITROL 6000 excitation regulation.
3BHE009681R0101 UFC719A101: Pulse transformer board, thyristor gate firing interface for rectifier bridge.
3BHE004573R0001 SDCS-PIN-48: Power interface board, 48-pulse rectifier configuration, high-power generator applications.
3BHE022460R0101 UNS0881A-P: Measurement and protection board, generator terminal voltage sensing.
3BHE017590R0001 SDCS-DSL-4: DDCS fiber-optic link board, connects AC800PEC to drive/excitation I/O nodes.
3BHE009680R0101 UFC760A101: Rotor current transducer interface board, DC shunt measurement input.
3BHE004574R0001 SDCS-AMC-DC: Adaptive motor control board, used in DC exciter retrofit configurations.
3BHE022463R0101 UNS0109A-P: Auxiliary I/O expansion board, 16 DI / 8 DO, UNITROL 5000 rack mount.
3BHE034873R0101 UFD403A101: Crowbar protection trigger board, overvoltage suppression for rotor circuit.
3BHE034874R0101 UFD404A101: Field breaker control interface board, 110 VDC coil drive output.
3BHE009682R0101 UFC761A101: Excitation transformer secondary voltage measurement board, 3-phase input.
3BHE022464R0101 UNS0110A-P: Serial communication adapter, Modbus RTU / PROFIBUS DP dual-port interface.

Quality Control for the UFD402A Range

UFD402A circuit boards incorporate multi-layer PCB construction with high-voltage isolation barriers between the gate drive outputs and the logic-level control circuitry. DriveKNMS applies a dedicated test protocol for this series that includes: static insulation resistance measurement between gate drive rails and signal ground (minimum 100 MΩ at 500 VDC); functional verification of all optocoupler channels using a calibrated pulse generator; IGBT gate threshold voltage measurement against ABB factory specification bands; and visual inspection under 10× magnification for solder joint integrity, capacitor ESR, and PCB delamination. Units that have been in storage for more than 36 months are subject to capacitor re-formation procedures prior to dispatch. Each board is logged with a unique DriveKNMS test record number traceable to the outgoing inspection report.
