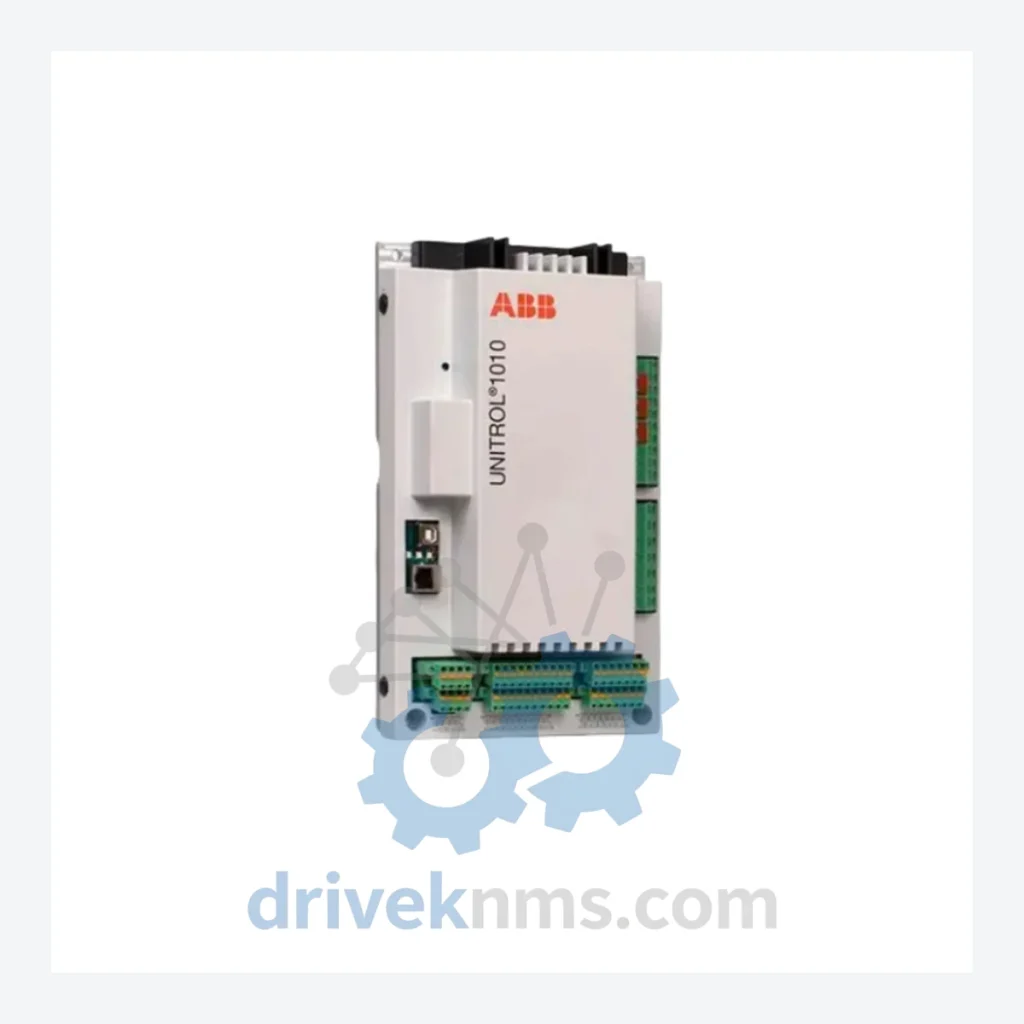

ABB 3BHE035301R1002 Excitation Control Unit – Obsolete UNS0121A Series Spare Part

Technical Dossier

Product Details And Specifications

ABB 3BHE035301R1002 Excitation Control Unit – Obsolete UNS0121A Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as input voltage range, current ratings, and communication interfaces vary by system configuration. DriveKNMS does not publish unverified specifications. Contact us with your system documentation for a confirmed compatibility assessment.

Solving the Discontinued Hardware Crisis

The UNS0121A excitation control series was deployed extensively in power plants, steel mills, cement facilities, and offshore platforms throughout the 1990s and 2000s. ABB's decision to discontinue this line left operators of UNITROL 1000 and UNITROL 5000 systems without a factory-supported upgrade path that preserves existing wiring, I/O mapping, and control logic.

The 3BHE035301R1002 sits at the core of the excitation loop. It processes voltage reference signals, manages AVR (Automatic Voltage Regulator) functions, and interfaces with the plant's protection relay network. There is no plug-compatible modern substitute. Any replacement requires re-engineering the excitation cabinet, re-commissioning the AVR, and re-validating protection coordination — a process that takes months and carries significant grid-stability risk during the transition window.

For plant managers facing board-level pressure to retire aging assets, the arithmetic is straightforward: a verified spare 3BHE035301R1002 at a fraction of a percent of the system's replacement cost buys 5 to 10 additional years of reliable operation. That window is sufficient to plan a controlled, budgeted migration rather than an emergency one.

Long-Term Asset Protection Strategy:

• Procure a minimum of two spare 3BHE035301R1002 units — one for immediate standby, one for long-term cold storage. Mean time to failure in field-aged units accelerates after 15 years of continuous operation.
• Store spares in a climate-controlled environment (10–25°C, <60% RH) to prevent electrolytic capacitor degradation and PCB moisture absorption.
• Establish a 3-year preventive replacement cycle for the installed unit, rotating the refurbished spare into service before failure rather than after.
• Document the current firmware version and AVR parameter set before any module swap. Version mismatches between the control unit and the excitation transformer interface board are the primary cause of post-replacement commissioning failures.
• Engage a qualified ABB excitation specialist for the first swap. Subsequent replacements can be handled by trained in-house electrical staff once the procedure is documented.

Condition & Reliability Assurance

Every 3BHE035301R1002 unit processed by DriveKNMS passes a structured 5-stage inspection protocol before it is offered for sale. This protocol was developed specifically for discontinued industrial control hardware where factory test benches no longer exist.

Key Features for System Maintenance

• Drop-in replacement: The 3BHE035301R1002 installs directly into the existing UNS0121A excitation cabinet slot. No mechanical modification to the cabinet is required.
• No reprogramming required: AVR parameters are stored in the host system's memory, not in this module. Swapping the control unit does not erase or alter the tuned control parameters, provided the replacement unit carries a compatible firmware version.
• No engineering redesign: The existing wiring harness, I/O terminations, and protection relay interfaces remain unchanged. Installation time for a trained technician is measured in hours, not weeks.
• Avoids forced system retirement: Maintaining this module in service preserves the entire surrounding infrastructure investment — switchgear, transformers, SCADA, and operator expertise — for the full extended service life.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: Can DriveKNMS source other ABB UNS0121A series modules?
A: Yes. Contact us with your full bill of materials for the excitation cabinet. We maintain sourcing relationships across the ABB legacy excitation product range.
