ABB 3BHE041626R0101 Control Unit – Obsolete ACS/UNITROL Spare Part

Technical Dossier

Product Details And Specifications

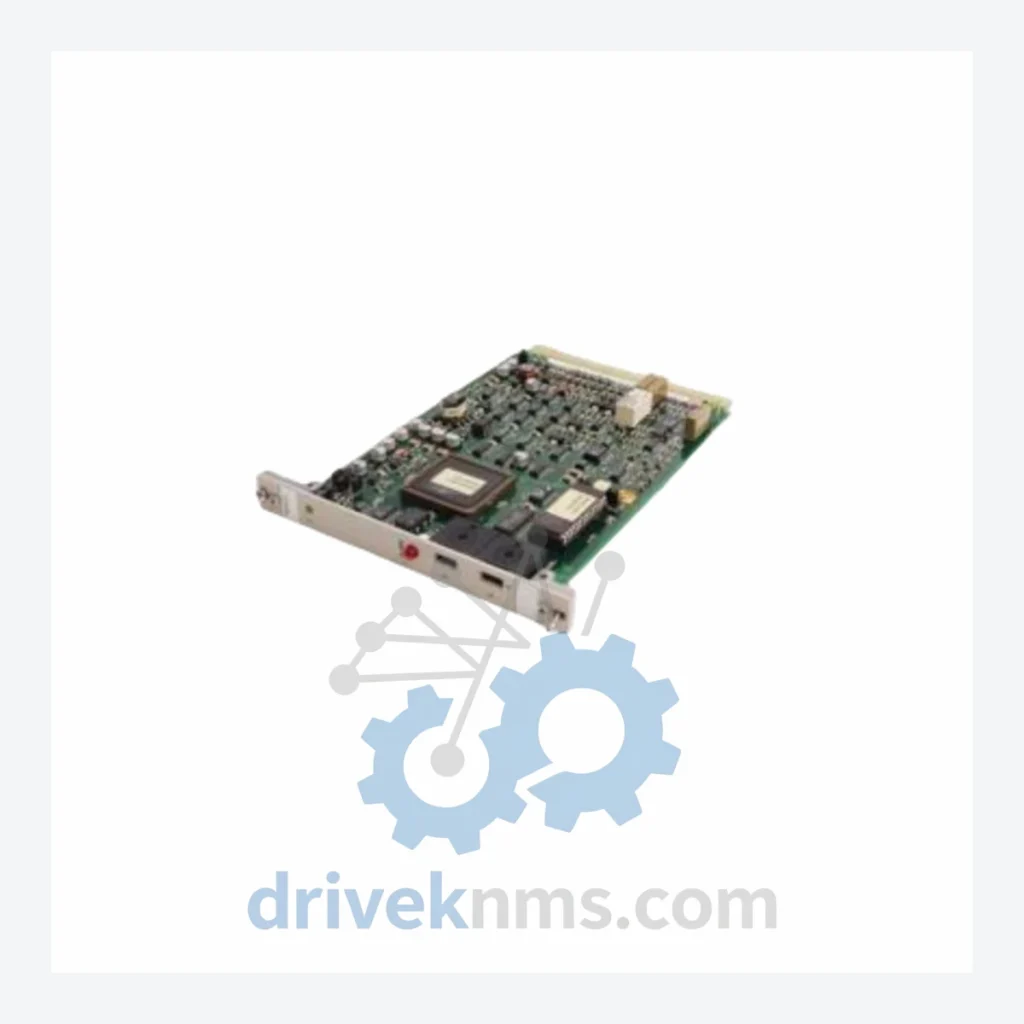

ABB 3BHE041626R0101 Control Unit – Obsolete ACS/UNITROL Spare Part

When a control unit like the ABB 3BHE041626R0101 fails in a legacy drive or excitation system, the consequences extend far beyond a single board replacement. For plants running ABB ACS medium-voltage drives or UNITROL excitation controllers, this module sits at the core of the control architecture. A confirmed discontinuation from ABB's active supply chain means that the next failure event carries a binary outcome: locate a verified spare, or face a forced system retirement.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this board revision are not published in ABB public documentation. DriveKNMS does not fabricate specifications. Buyers requiring detailed electrical data are advised to cross-reference their existing system documentation or contact our technical team.

Solving the Discontinued Hardware Crisis

The ABB 3BHE041626R0101 is embedded in control architectures engineered for 20–30 year operational lifespans. The drive systems and excitation controllers that depend on this board were not designed with easy module substitution in mind — the control logic, communication protocols, and firmware dependencies are tightly coupled to this specific hardware revision.

When ABB discontinues a part at this level of the control stack, plant engineers face a problem that cannot be solved by ordering a compatible alternative. A wrong board revision can introduce firmware incompatibilities, communication faults, or unsafe operating states in high-voltage environments.

How to extend your automation asset life by 5–10 years through targeted spare parts management:

• Identify your single points of failure. In any legacy drive system, there are typically 2–4 control modules with no active-market replacement. The 3BHE041626R0101 is one such module. Map these before a failure forces the decision.
• Hold a minimum of one verified spare per critical system. For facilities running multiple ACS or UNITROL units, a shared spare pool across similar platforms reduces per-unit holding cost while maintaining coverage.
• Establish a periodic inspection cycle. Electrolytic capacitor degradation and connector oxidation are the primary failure modes on boards of this age. A scheduled inspection every 18–24 months allows condition-based replacement rather than reactive replacement.
• Document firmware versions before any board swap. On legacy ABB platforms, firmware version mismatches between control boards and the broader system can cause commissioning failures. Retain the firmware version data from your current installed board before it fails.
• Negotiate long-term supply agreements with specialist distributors. Spot-market availability of obsolete ABB control boards is unpredictable. Locking in supply through a specialist like DriveKNMS provides price certainty and guaranteed access when the need arises.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all refurbished control units before dispatch review:

1. Visual and mechanical inspection: Full board inspection for physical damage, burnt components, cracked solder joints, and connector pin integrity. Boards with structural damage are rejected at this stage.
2. Electrolytic capacitor assessment: Capacitors are the primary age-related failure point on control boards of this generation. Each capacitor is tested for capacitance value, ESR, and leakage. Out-of-tolerance components are replaced with equivalent-rated parts.
3. Firmware version verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the target system platform.
4. Connector and pin corrosion inspection: All edge connectors and pin headers are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned and treated; severely corroded connectors are replaced.
5. Functional burn-in test: Units are powered and monitored under controlled conditions prior to packaging. Any unit that does not pass functional verification is not shipped.

Key Features for System Maintenance

• Drop-in replacement: The 3BHE041626R0101 is a direct hardware replacement for the same part number in compatible ABB systems. No hardware modification is required for installation.
• No reprogramming required (system-dependent): In most ACS and UNITROL configurations, control parameters are stored in the drive system, not on the control board itself. Board replacement does not require full system reprogramming in these configurations — verify against your specific system documentation.
• Avoids engineering redesign costs: Substituting a non-original control board in a legacy ABB system typically requires engineering validation, system re-commissioning, and in regulated industries, re-certification. Using the correct OEM part number eliminates this cost entirely.
• Maintains system compliance status: In facilities where the drive system operates under a maintenance contract or regulatory compliance framework, using the correct OEM spare preserves that status.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: Should I hold more than one spare?
A: For any facility running a single critical system dependent on this board, holding one spare is the minimum prudent position. For facilities running multiple ACS or UNITROL systems, a shared pool of two units is a reasonable baseline. The cost of a second spare is negligible against the cost of an extended outage while sourcing on the spot market.

Q: Can you source this part if it is not available for RFQ review?
A: Yes. DriveKNMS operates an active sourcing network for obsolete ABB control hardware. If the 3BHE041626R0101 is not in current inventory, we will initiate a sourcing request and provide a timeline and price indication within 5 business days.
