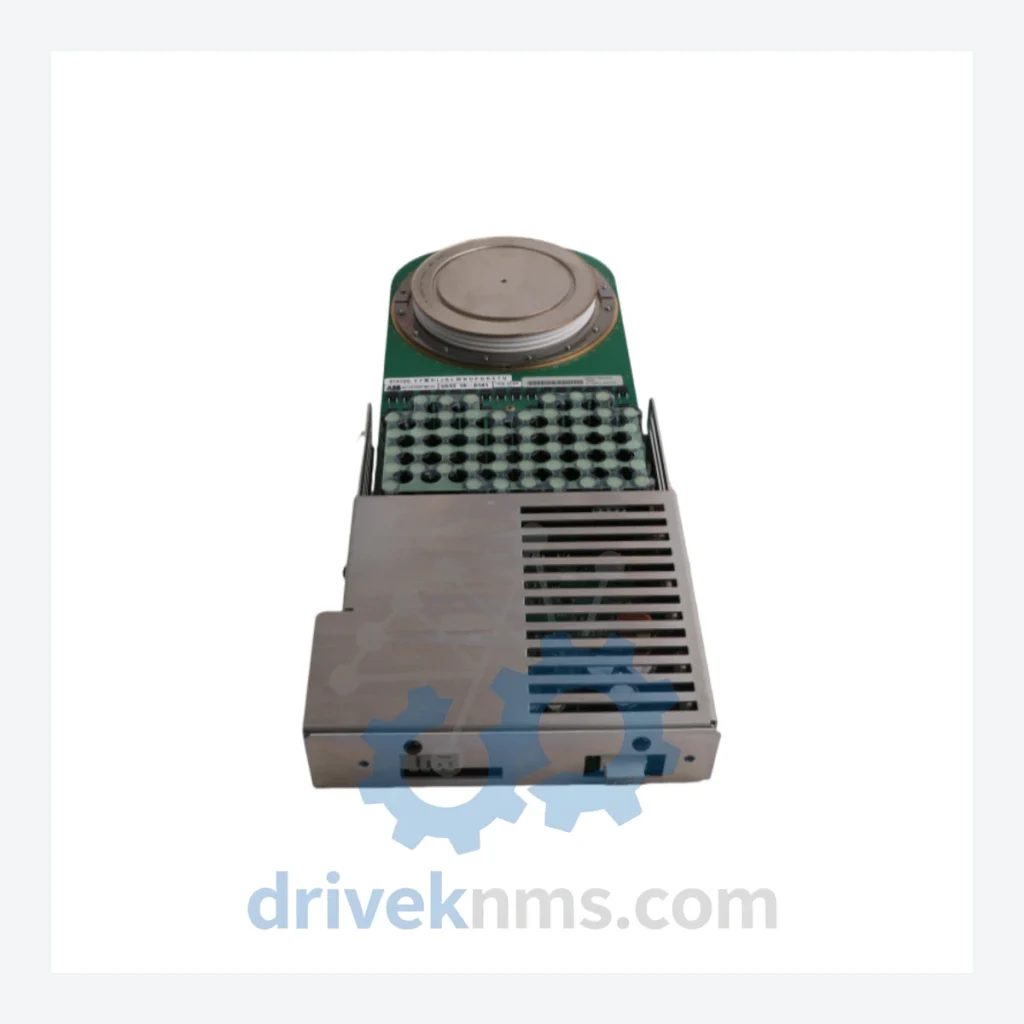

ABB 5SHX Series IGCT Modules: 5SHX36L4521 5SXE10-0181 AC10272001R0101

Technical Dossier

Product Details And Specifications

ABB 5SHX Series Technical Notes

The ABB 5SHX series represents ABB's Integrated Gate-Commutated Thyristor (IGCT) product line, engineered for high-power switching applications in heavy industrial environments. These devices are deployed globally in chemical processing plants, nuclear power stations, oil refineries, steel mills, and large-scale variable speed drives. The 5SHX series occupies a critical position in medium-to-high voltage power conversion systems, where reliability, switching precision, and thermal performance are non-negotiable. ABB's IGCT technology combines the low conduction losses of a GTO thyristor with the fast turn-off capability of a transistor, making the 5SHX series the preferred choice for multi-megawatt drive systems and STATCOM installations operating at voltage classes from 2.5 kV to 6.5 kV.

The Evolution of 5SHX Architecture

The 5SHX series evolved from ABB's earlier GTO (Gate Turn-Off Thyristor) technology platform. In the early 1990s, ABB pioneered the IGCT concept to address the limitations of GTOs — specifically their requirement for large, lossy snubber circuits and slow switching frequencies. The first-generation 5SHX devices introduced the integrated gate unit directly onto the thyristor housing, eliminating external gate drive inductance and enabling sub-microsecond turn-off times.

By the late 1990s and early 2000s, ABB refined the 5SHX architecture to support asymmetric (A-type) and reverse-conducting (RC-type) configurations, broadening the series' applicability to four-quadrant drive topologies and active front-end rectifiers. The 5SXE gate unit family was developed in parallel as the dedicated driver interface, with models such as the 5SXE10-0181 providing the gate signal conditioning, monitoring, and protection logic required for safe IGCT operation.

Modern installations using 5SHX devices are predominantly in the mature/sustaining phase of their lifecycle. ABB has transitioned new designs toward the HiPak IGBT module platform (5SNA series), but the installed base of 5SHX-based systems in power plants and industrial drives remains extensive, creating sustained demand for original spare parts and certified replacements through specialist distributors.

5SHX Full Catalog & Functionalities (SKU List)

IGCT Power Devices (Asymmetric & Reverse-Conducting)

• 5SHX36L4521: Asymmetric IGCT, 4500V / 3600A, press-pack housing, low-loss topology for VSI drives
• 5SHX26L4510: Asymmetric IGCT, 4500V / 2600A, medium-power converter applications
• 5SHX14H4502: Asymmetric IGCT, 4500V / 1400A, compact press-pack for retrofit installations
• 5SHX10H6004: Asymmetric IGCT, 6000V / 1000A, high-voltage traction and utility drives
• 5SHX19L6010: Asymmetric IGCT, 6000V / 1900A, STATCOM and reactive power compensation
• 5SHX08F6010: Asymmetric IGCT, 6000V / 800A, medium-voltage soft-starter systems
• 5SHX26L6010: Asymmetric IGCT, 6000V / 2600A, large industrial drive inverter stages
• 5SHX36L6510: Asymmetric IGCT, 6500V / 3600A, ultra-high-voltage power conversion
• 5SHX14H6510: Asymmetric IGCT, 6500V / 1400A, high-voltage direct drive wind turbine converters
• 5SHX08H4502: Asymmetric IGCT, 4500V / 800A, auxiliary converter and excitation systems

Gate Unit / Driver Modules (5SXE Series)

• 5SXE10-0181: IGCT gate unit for 5SHX36L4521, provides gate current pulse, desaturation protection, and status feedback
• 5SXE10-0171: Gate unit compatible with 4500V IGCT family, earlier revision with analog feedback interface
• 5SXE10-0156: Gate unit for 6000V IGCT devices, extended isolation voltage rating
• 5SXE10-0190: Gate unit with fiber-optic interface, for high-EMI environments
• 5SXE10-0200: Latest-revision gate unit, enhanced diagnostics and CAN-bus status reporting

Associated Capacitor / Snubber Components

• AC10272001R0101: Snubber/clamp capacitor assembly for 5SHX36L4521 press-pack stack, rated for high dV/dt suppression in VSI topology

Quality Control for the 5SHX Range

Press-pack IGCT devices present unique verification challenges compared to standard module-type semiconductors. The 5SHX series uses a clamped stack assembly where contact pressure directly affects forward voltage drop and thermal resistance. DriveKNMS applies the following test protocol to all 5SHX units prior to dispatch:

• Static parameter verification: Forward blocking voltage (VDRM), reverse blocking voltage (VRRM), and gate threshold current measured against ABB datasheet limits.
• Gate unit functional test: 5SXE gate units are bench-tested with a resistive load to verify gate pulse amplitude, pulse width, and interlock signal integrity.
• Insulation resistance test: 500V DC Megger test applied between gate terminal and anode/cathode to confirm internal isolation integrity.
• Thermal imaging inspection: Infrared scan of press-pack contact surfaces to identify delamination or internal void defects.
• Capacitor ESR measurement: For snubber assemblies such as AC10272001R0101, equivalent series resistance is measured to confirm capacitor health before installation in a live stack.
