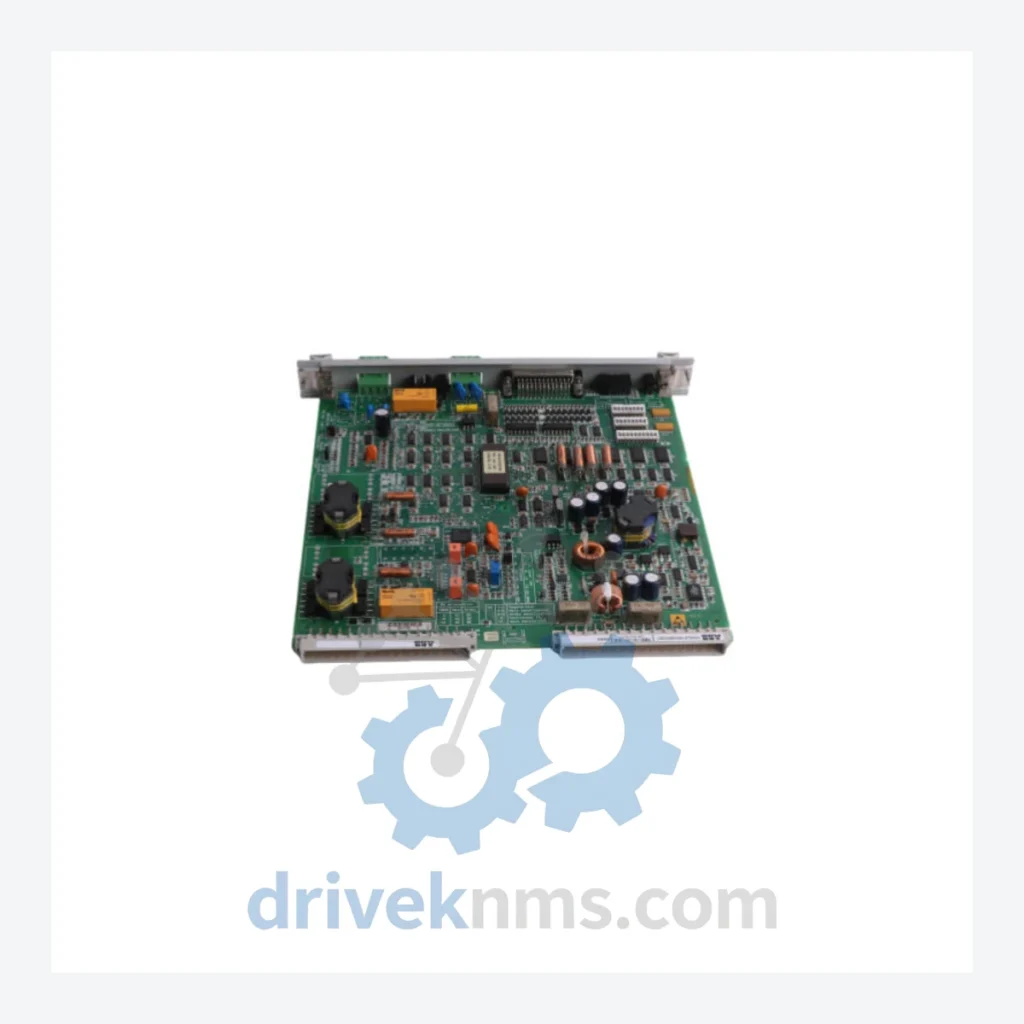

ABB 70BK06A-E HESG332194 R1 Circuit Board – Obsolete Advant Series Spare Part

DriveKNMS maintains RFQ-reviewed sourcing status of the HESG332194 R1. For facilities running ABB Advant or MasterPiece infrastructure, this board is not a commodity item. It is a production continuity asset.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known part identification data. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The ABB Advant and MasterPiece 200/1 platforms were workhorses of process automation throughout the 1980s and 1990s, deployed extensively in power generation, pulp and paper, chemical processing, and oil & gas facilities. ABB's end-of-life declaration for these platforms left thousands of installed systems without a forward support path.

The HESG332194 R1 board sits within the communication or I/O processing layer of these controllers. Its failure does not degrade performance gradually — it causes a hard fault. In a system where no modern equivalent exists without architectural redesign, the only viable short-term response is a direct board replacement.

Facilities that have extended the life of their Advant and MasterPiece systems by 5 to 10 years beyond OEM end-of-life have done so through a disciplined spare parts strategy, not through wishful thinking about vendor support. The core elements of that strategy are:

The economic case for this approach is straightforward. A plant running a MasterPiece 200/1 system that has already been fully amortized is generating margin on infrastructure that cost nothing in the current budget cycle. Every year that system runs without a forced migration is a year of capital expenditure deferred. The HESG332194 R1 spare board is the instrument of that deferral.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all obsolete circuit boards before dispatch review:

1. Visual inspection: Full board examination under magnification for physical damage, burn marks, cracked solder joints, and pin corrosion. Boards with compromised connectors or corroded edge contacts are rejected at this stage.
2. Electrolytic capacitor assessment: Capacitors on boards of this age are the primary failure vector. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with degraded capacitors are either recapped or downgraded.
3. Firmware version verification: Where readable, firmware revision is documented and disclosed to the buyer prior to shipment. Buyers are advised to confirm compatibility with their system revision before installation.
4. Functional bench test (where applicable): Boards are powered and tested on compatible test rigs where test infrastructure exists for the platform.
5. Anti-static packaging and documentation: All boards ship in ESD-safe packaging with a condition report. Lot traceability is maintained.

Key Features for System Maintenance

• Drop-in replacement: The HESG332194 R1 installs directly into the existing card slot. No mechanical modification required.
• No reprogramming required: The board does not store application logic. System configuration resides in the controller, not the board. Replacement does not require re-engineering of control loops.
• Avoids engineering redesign costs: A forced migration from Advant/MasterPiece to a current ABB System 800xA or third-party DCS involves full I/O remapping, loop checkout, and safety validation. This board replacement avoids that process entirely.
• Maintains system certification integrity: In regulated industries, replacing a like-for-like board preserves existing process safety and functional safety documentation. A platform migration triggers a full re-validation cycle.

Q: How do I know the board is genuine ABB and not a counterfeit?
A: All boards sourced by DriveKNMS are inspected for ABB part markings, PCB layer identification, and component date codes consistent with the known manufacturing period. We do not source from unverified brokers. Condition reports are available on request.

Q: Can you source other ABB Advant or MasterPiece spare parts?
A: Yes. DriveKNMS specializes in legacy ABB, Honeywell, Siemens, and Yokogawa DCS components. Contact us with your full part list for availability and pricing.
