ABB Advant Controller CI547 Modules - CI547 3BNP004429R1

Technical Dossier

Product Details And Specifications

ABB Advant Controller Series Technical Notes

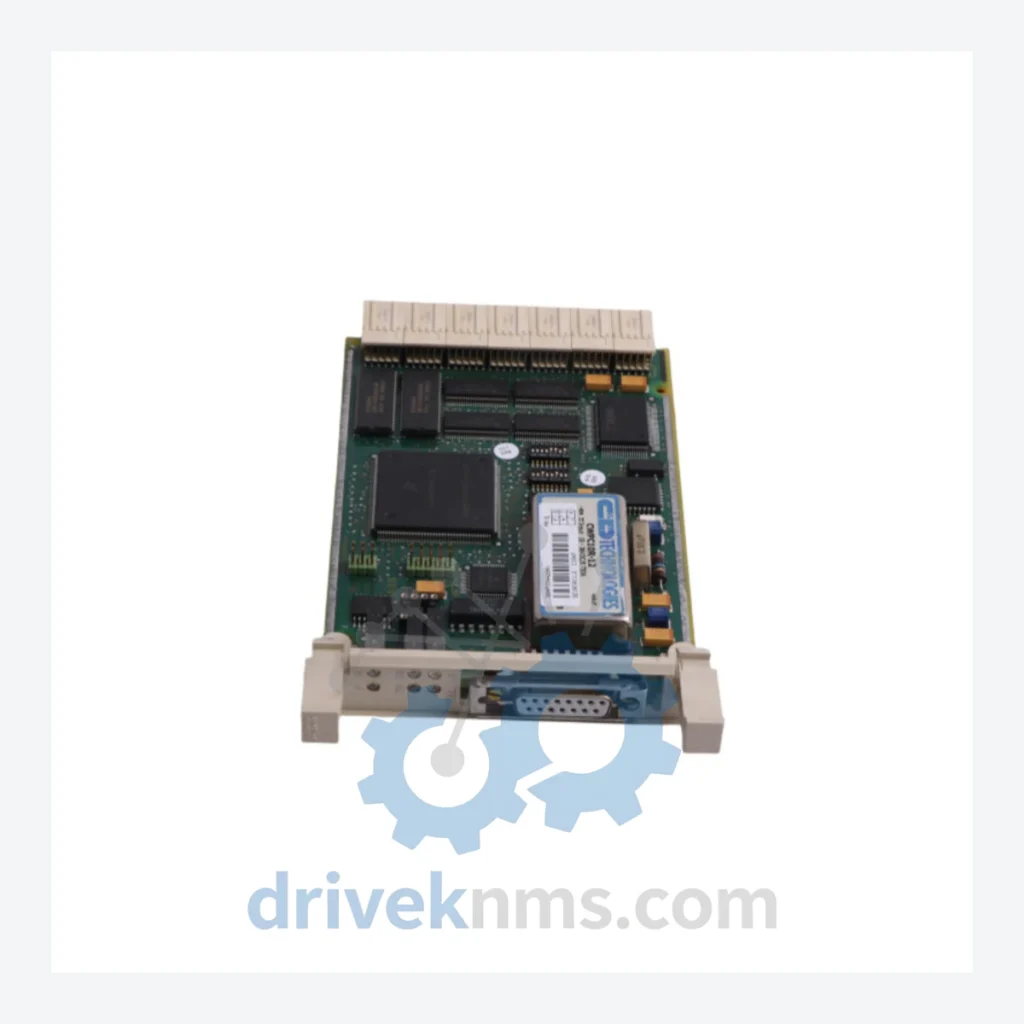

The CI547 (3BNP004429R1) is a MasterBus 300 communication interface board designed for use within the Advant Controller backplane architecture. It provides the physical and logical communication layer between the controller CPU and the MasterBus 300 fieldbus network — a proprietary ABB protocol used extensively in AC450 and AC460 installations. Loss of this module severs the controller's ability to communicate with field I/O stations, rendering entire process segments inoperable. Replacement from OEM channels is no longer straightforward; ABB has transitioned its DCS portfolio toward the System 800xA platform, leaving legacy Advant hardware in a diminishing supply chain.

The Evolution of Advant Controller Architecture

ABB's Advant Controller lineage traces to the early 1980s with the MASTER series (MasterPiece 200/1 and MasterPiece 90), which established the MasterBus fieldbus protocol as a backbone for distributed I/O communication. Through the late 1980s and 1990s, the architecture evolved into the formal Advant Controller designation:

• AC110 / AC160 — Entry-level controllers for smaller process segments; used RCOM and MasterBus 200 communication.
• AC410 — Mid-range controller with expanded I/O capacity; introduced modular backplane design.
• AC450 — The dominant platform in large-scale DCS installations; full MasterBus 300 support, redundant CPU configurations, and extensive analog/digital I/O module libraries.
• AC460 — High-availability variant of the AC450 with enhanced fault-tolerance for nuclear and critical infrastructure applications.

By the mid-2000s, ABB began migrating customers toward the System 800xA DCS, which uses a fundamentally different hardware and software architecture. The Advant Controller series entered end-of-active-development status, though ABB continued to provide limited support. As of the mid-2010s, many CI5xx and PM5xx series modules transitioned to manufacturer-discontinued status. Plants that have not completed migration to 800xA — a capital-intensive project often deferred due to cost and operational risk — now depend entirely on the secondary market for hardware continuity.

Advant Controller Full Catalog & Functionalities (SKU List)

The following modules represent the core hardware library of the Advant Controller AC450/AC460 platform. Each entry reflects a real, documented module within the ABB Advant ecosystem. Modules are categorized by function.

CPU & Controller Modules

• PM511V16 (3BSE011181R1): AC450 processor module, 16 MB RAM, MasterBus 300 interface.
• PM511V08 (3BSE008358R1): AC450 processor module, 8 MB RAM variant for smaller applications.
• PM510V16 (3BSE008696R1): Earlier AC450 CPU; single-bus architecture, widely installed in 1990s plants.
• PM150V08 (3BSE003641R1): AC410 processor module; used in mid-range Advant installations.

Communication Interface Modules

• CI547 (3BNP004429R1): MasterBus 300 communication interface board; primary fieldbus link for AC450/AC460 controllers.
• CI522A (3BSE018283R1): PROFIBUS DP master/slave communication interface for Advant controllers.
• CI532V01 (3BSE003827R1): MasterBus 300E communication interface; enhanced version for higher-speed networks.
• CI534V02 (3BSE006436R1): AF100 (FOUNDATION Fieldbus H1) communication interface module.
• CI541V1 (3BSE014666R1): Ethernet TCP/IP communication interface for Advant Controller integration with supervisory systems.
• CI543 (3BSE000177R1): INSUM communication interface for motor control center integration.

Analog Input / Output Modules

• AI610 (3BSE008386R1): 8-channel analog input, 4–20 mA / 0–10 V, 12-bit resolution.
• AO610 (3BSE008522R1): 8-channel analog output, 4–20 mA, used in valve and actuator control loops.
• AI620 (3BSE000527R1): 16-channel analog input module; high-density process measurement.
• AO820 (3BSE008546R1): 8-channel analog output with HART communication support.

Digital Input / Output Modules

• DI610 (3BSE008390R1): 16-channel 24 VDC digital input module; standard process interlock inputs.
• DO610 (3BSE008398R1): 16-channel 24 VDC digital output module; relay-driven actuator control.
• DI620 (3BSE008392R1): 32-channel 24 VDC digital input, high-density I/O expansion.
• DO620 (3BSE014271R1): 32-channel 24 VDC digital output for high-density control applications.

Power Supply Modules

• SS822 (3BSE018103R1): Redundant power supply module for AC450 backplane; 24 VDC input.
• SS832 (3BSE038534R1): Enhanced redundant power supply; supports hot-swap replacement without process interruption.

Sourcing Hard-to-Find & Obsolete Advant Controller Parts

The secondary market for Advant Controller hardware is constrained by three structural factors: the age of the installed base (many units are 20–30 years old), the proprietary nature of ABB's backplane and bus architecture (no third-party equivalents exist), and the ongoing attrition of specialist inventory holders as the market consolidates.

Quality Control for the Advant Controller Range

Advant Controller modules present specific QC challenges that differ from standard PLC hardware. The backplane communication architecture relies on precise bus timing; a module with degraded bus transceivers may pass basic power-on tests while causing intermittent communication faults under load. DriveKNMS applies the following test protocol to all Advant Controller modules prior to dispatch:

• Step 1 – Visual and Physical Inspection: Full board inspection for corrosion on edge connectors, backplane pins, and surface-mount components. CI547 boards are specifically checked for oxidation on the MasterBus 300 transceiver ICs.
• Step 2 – Electrolytic Capacitor Assessment: Capacitance and ESR measurement on all electrolytic capacitors. Modules with capacitors showing >20% capacitance loss or elevated ESR are flagged for recapping before dispatch.
• Step 3 – Firmware and Revision Verification: Onboard firmware version is read and documented. Revision compatibility with the target AC450/AC460 system version is confirmed against ABB's published compatibility matrix.
• Step 4 – Functional Bus Communication Test: Module is installed in a live Advant Controller test rack and MasterBus 300 communication is verified under simulated load conditions. Error counters are monitored for a minimum 30-minute burn-in period.
• Step 5 – Packaging and ESD Protection: All modules are packed in anti-static bags with desiccant. Connector covers are fitted to all backplane interfaces to prevent transit damage.
