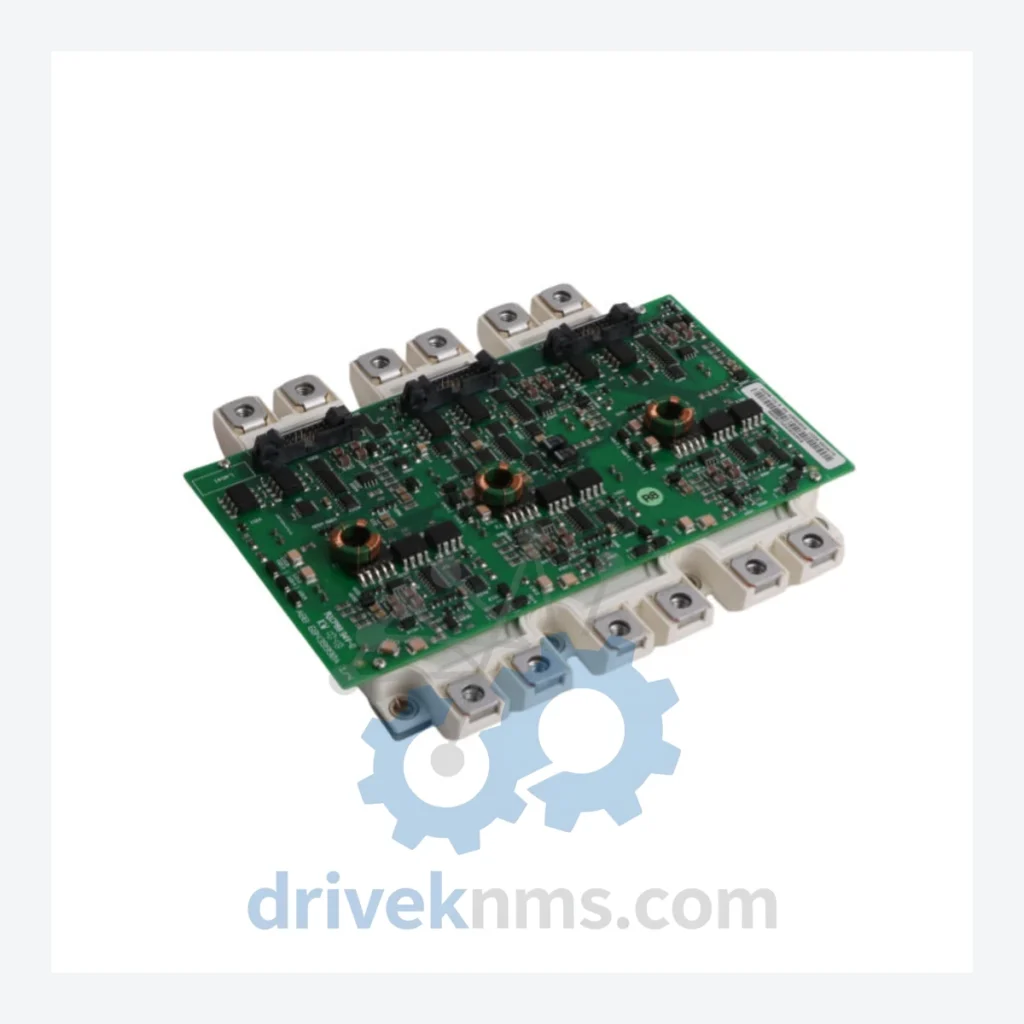

ABB FS300R12KE3/AGDR-72C IGBT Module – Obsolete ACS800 Series Spare Part

Technical Dossier

Product Details And Specifications

ABB FS300R12KE3/AGDR-72C IGBT Module – Obsolete ACS800 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Only parameters confirmed by manufacturer datasheets are listed above. No speculative values are included.

Solving the Discontinued Hardware Crisis

The ABB ACS800 and ACS600 drive families were workhorses of industrial automation through the 1990s and 2000s. Thousands of units remain in active service in pulp and paper, metals, mining, water treatment, and marine propulsion applications. ABB has progressively discontinued spare parts support for these platforms, and the FS300R12KE3/AGDR-72C combination is among the components that can no longer be sourced through standard distribution channels.

The AGDR-72C gate driver board is specifically engineered to interface with the FS300R12KE3 IGBT module. It manages gate voltage levels, short-circuit protection, and desaturation detection in a way that is calibrated to this exact IGBT's switching characteristics. Substituting a generic gate driver is not a viable field option — the protection thresholds will not match, and the risk of IGBT destruction under fault conditions is real. This is why the assembly must be sourced as a matched pair, and why availability has become a critical constraint for maintenance teams.

Condition & Reliability Assurance

DriveKNMS applies a five-stage inspection protocol to all obsolete power electronics before dispatch review:

• Visual and mechanical inspection: Housing integrity, connector pin condition, and absence of physical damage are verified under magnification. Pin corrosion and oxidation — the primary failure mode of stored legacy components — are assessed and documented.
• Electrolytic capacitor assessment: Where accessible on the gate driver board, capacitor condition is evaluated. Aged electrolytic capacitors are a known failure point in stored electronics; units showing evidence of electrolyte leakage or case deformation are rejected.
• Firmware and label verification: The AGDR-72C revision level is confirmed against known compatible firmware versions for ACS800 and ACS600 drive software releases.
• Insulation and continuity check: Basic electrical continuity across gate driver outputs and IGBT module terminals is verified prior to packaging.
• Packaging for long-term storage: Units are shipped in anti-static packaging with desiccant. Storage conditions during transit are controlled to prevent moisture ingress.

Units that do not pass all five stages are not offered for sale. We do not offer untested pulls.

Key Features for System Maintenance

• Drop-in replacement: The FS300R12KE3/AGDR-72C assembly installs directly into the existing drive chassis without mechanical modification. No new mounting hardware, no bus bar rerouting.
• No reprogramming required: The gate driver communicates with the ACS800 control board via the existing fiber optic interface. Drive parameters stored in the control unit are unaffected by a power module replacement.
• Avoids engineering reconstruction costs: Replacing this assembly in the field is a qualified electrician task. It does not require ABB commissioning engineers, software licenses, or drive configuration tools.
• Preserves existing motor tuning: Motor ID run data, speed controller tuning, and process-specific parameter sets remain intact in the drive control unit after a power module swap.
• Extends asset life without capital expenditure: A correctly executed power module replacement restores the drive to full rated performance. The remaining service life of the drive is determined by the condition of the control electronics, not the power stage.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How do I confirm the unit is new or quality-refurbished?
Each unit shipped by DriveKNMS is accompanied by an inspection record documenting the five-stage QA process described above. Condition grade (new surplus, tested refurbished, or tested pull) is stated explicitly on the invoice and packing documentation. We do not ship untested or uninspected units.

Can this assembly be used in drives other than the ACS800?
The FS300R12KE3 IGBT module has been used in multiple drive platforms from different manufacturers. The AGDR-72C gate driver is ABB-specific. If you are maintaining a non-ABB drive that uses the FS300R12KE3 module, contact us to discuss gate driver compatibility for your specific application.
