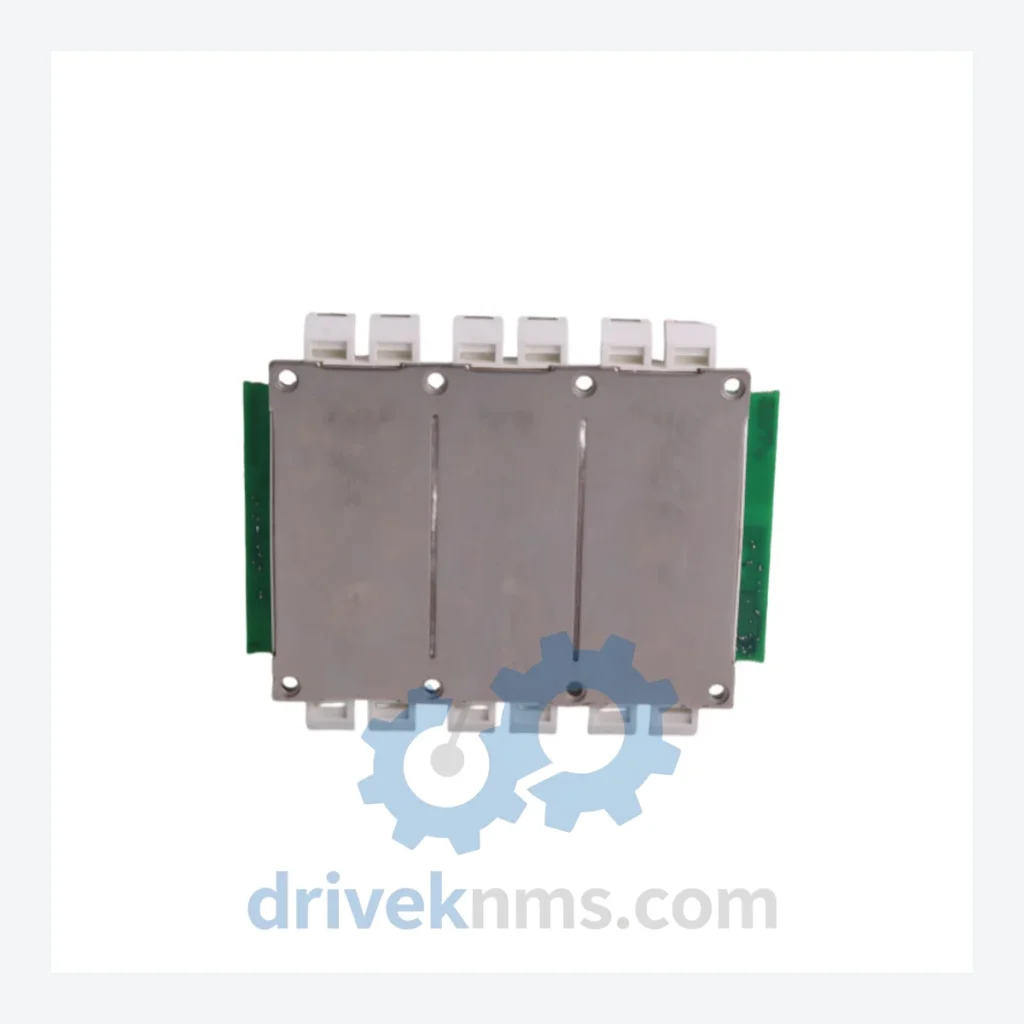

ABB FS450R17KE3’AGDR-72C IGBT Modules - FS450R17KE3'AGDR-72C

Name: ABB FS450R17KE3’AGDR-72C IGBT Modules - FS450R17KE3'AGDR-72C
Brand: ABB

Model: FS450R17KE3'AGDR-72C

Brand ABB

Series FS450R17KE3'AGDR-72C IGBT

Model FS450R17KE3'AGDR-72C

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB FS450R17KE3'AGDR-72C Series Technical Notes

The ABB FS450R17KE3'AGDR-72C is a high-power IGBT (Insulated Gate Bipolar Transistor) module manufactured by ABB Semiconductors, designed for demanding industrial power conversion applications. This module is rated at 450A / 1700V and is widely deployed in heavy industrial sectors including chemical processing plants, nuclear power auxiliary systems, petroleum refinery drive systems, rolling mill drives, and large-scale wind turbine converters. The AGDR-72C gate driver board is an integrated component of this assembly, providing isolated gate drive signals, fault detection, and desaturation protection for the IGBT die stack. ABB's FS-series IGBT modules occupy a critical position in medium-voltage drive topologies globally, with installed bases spanning Europe, Asia-Pacific, and North America across facilities with operational lifespans exceeding 20 years.

The Evolution of FS450R17KE3 Architecture

ABB's FS-series IGBT modules evolved through several generations of semiconductor packaging and gate drive technology. Early-generation modules in the 1700V class used wire-bonded die assemblies with discrete gate resistors and external driver boards. The introduction of the AGDR (Advanced Gate Driver) series consolidated gate drive electronics onto a dedicated PCB mounted directly to the module housing, reducing parasitic inductance and improving switching transient control. The FS450R17KE3'AGDR-72C represents the mature phase of this architecture, incorporating press-pack-compatible baseplate geometry, NTC thermistor integration for junction temperature monitoring, and a standardized 72-pin driver interface compatible with ABB's ACS series medium-voltage drives (ACS2000, ACS5000, ACS6000). Compatibility constraints exist between AGDR-72C and earlier AGDR-71C driver revisions due to firmware-level handshake differences; substitution requires driver firmware validation. As the ACS drive platform transitions toward SiC-based power stages in newer product generations, the FS450R17KE3'AGDR-72C has entered the mature/end-of-life phase, making long-term spare parts availability a primary concern for plant maintenance engineers.

FS450R17KE3 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified catalog of ABB FS-series IGBT modules and associated gate driver assemblies relevant to the FS450R17KE3 platform. Each entry reflects a distinct functional role within medium-voltage drive and power conversion systems:

FS450R17KE3'AGDR-72C: 450A/1700V IGBT module with integrated AGDR-72C gate driver, primary power switch for ACS5000/ACS6000 drives.
FS300R17KE3'AGDR-72C: 300A/1700V variant, used in lower-current ACS2000 drive configurations.
FS225R17KE3'AGDR-72C: 225A/1700V module, applied in auxiliary converter stages and smaller MV drive frames.
FS150R17KE3'AGDR-72C: 150A/1700V module, used in redundant bypass circuits and harmonic filter drives.
FS100R17KE3'AGDR-72C: 100A/1700V module, deployed in low-power MV converter auxiliary branches.
FS450R17KE3'AGDR-71C: Earlier AGDR-71C driver revision; functionally equivalent die, incompatible driver firmware with 72C systems without upgrade.
FS300R17KE3'AGDR-71C: 300A/1700V with legacy AGDR-71C gate driver interface.
FS450R12KE3'AGDR-72C: 450A/1200V variant for lower DC-link voltage topologies in ACS drives.
FS300R12KE3'AGDR-72C: 300A/1200V module for 690V AC input drive systems.
FS225R12KE3'AGDR-72C: 225A/1200V module, used in compact MV drive frames.
FS450R17KE3: Bare IGBT module without gate driver assembly; used in custom OEM power converter designs.
FS300R17KE3: 300A/1700V bare module for OEM integration without ABB driver board.
AGDR-72C: Standalone gate driver board assembly; replacement unit for damaged driver PCB without module replacement.
AGDR-71C: Legacy standalone gate driver board; compatible with first-generation FS-series module housings.
3BHB013088R0001: ABB spare part reference number for FS450R17KE3'AGDR-72C assembly in ACS5000 drive documentation.
3BHB007327R0001: ABB spare part reference for AGDR-72C driver board as individual line-replaceable unit.
5SNA0450J170300: ABB Semiconductors die-level part number cross-reference for the FS450R17KE3 IGBT stack.
