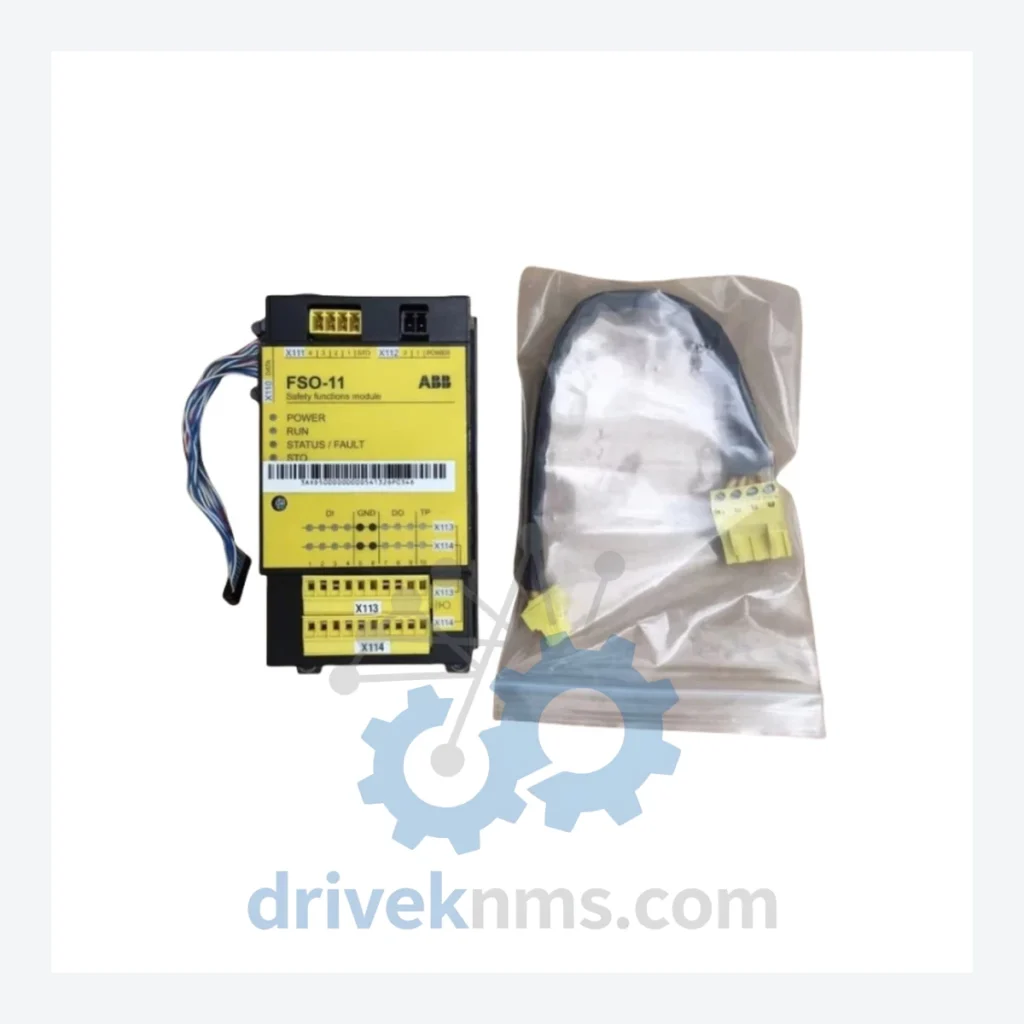

ABB FSO Series Safety Modules: FSO-11, FSO-12, FSO-21

Name: ABB FSO Series Safety Modules: FSO-11, FSO-12, FSO-21
Brand: ABB

Model: FSO-11

Brand ABB

Series FSO Series Safety

Model FSO-11

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB FSO Series Technical Notes

The Evolution of FSO Series Architecture

ABB introduced the FSO series as a response to the growing adoption of IEC 61508 SIL 2/3 requirements in process industries during the 2010s. The first-generation FSO-11 established the baseline architecture: a dedicated safety option module mounted directly onto the drive's option slot, communicating via the drive's internal DDCS (Drive-to-Drive Communication System) backplane. This eliminated the latency and wiring complexity of external safety PLC solutions.

The FSO-12 extended this architecture with additional safe I/O channels, supporting more complex machine safety topologies. The FSO-21 introduced PROFIsafe over PROFINET integration, enabling FSO modules to participate in safety-rated fieldbus networks — a critical evolution for plants standardizing on PROFINET infrastructure. Across generations, ABB maintained backward mechanical compatibility within the ACS880 option slot standard, though firmware and parameter set compatibility must be verified per drive firmware revision. As of 2024, the FSO-11 and FSO-12 are in mature/sustained phase; FSO-21 remains the current recommended variant for new installations requiring fieldbus safety integration.

FSO Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB FSO series. Each entry reflects the module's primary functional role within a drive safety architecture.

FSO-11: Safety option module for ACS880/ACS580; SIL 2 / PLd; supports STO, SS1, SS2, SLS, SMS, SDI, SBC functions via safe digital I/O.

FSO-12: Extended safe I/O variant of FSO-11; additional safe digital inputs/outputs for complex multi-axis safety topologies.

FSO-21: PROFIsafe over PROFINET safety module; SIL 2 / PLd; enables safety function control via PROFINET safety controller without hardwired I/O.

FSO-11 (3AXD50000011471): Standard FSO-11 with factory firmware; primary catalog part number for ACS880 single-drive series.

FSO-11 (3AXD50000158477): FSO-11 variant with updated firmware baseline for ACS880-07 cabinet drive compatibility.

FSO-12 (3AXD50000011472): Standard FSO-12 catalog part number; extended I/O configuration for multi-function safety applications.

FSO-21 (3AXD50000025701): Standard FSO-21 catalog part number; PROFINET/PROFIsafe interface module.

FSO-21 (3AXD50000158478): FSO-21 variant for ACS880-07 and ACS880-17 cabinet drive series.

FENA-21: PROFINET adapter module; frequently co-deployed with FSO-21 for full PROFINET safety network integration.

FDNA-01: DeviceNet adapter; used in legacy FSO-11 installations where DeviceNet fieldbus is the plant standard.

FCAN-01: CANopen adapter; co-deployed with FSO-11 in mobile machinery and crane applications.

FSPS-21: PROFIsafe over PROFIBUS DP safety module; alternative to FSO-21 for plants standardized on PROFIBUS infrastructure.

FSPS-21 (3AXD50000025702): Standard catalog part number for FSPS-21 PROFIBUS safety module.

FPTC-02: Thermistor protection module; co-installed with FSO series in motor thermal safety applications.

FAIO-01: Analog I/O extension module; used alongside FSO-11/FSO-12 for analog safe speed reference inputs.

FDIO-01: Digital I/O extension module; expands safe digital channel count in FSO-12-based safety architectures.

ACS880-01 Drive (FSO slot): Single-drive platform with dedicated option slot accepting FSO-11, FSO-12, FSO-21 without hardware modification.

ACS580-01 Drive (FSO slot): General purpose drive platform; FSO-11 compatible via option slot; SIL 2 certified system configuration.

Quality Control for the FSO Series Range

FSO series modules incorporate a dual-channel safety architecture with internal self-diagnostics. DriveKNMS applies a structured test protocol to all FSO units prior to dispatch: (1) Visual inspection of the option module connector pins and PCB for corrosion, mechanical damage, or evidence of thermal stress. (2) Firmware version verification using ABB Drive Composer Pro to confirm the module firmware matches the customer's specified drive firmware revision. (3) Functional safety I/O channel verification: each safe digital input and output channel is exercised through a test harness simulating STO, SS1, and SLS command sequences. (4) PROFINET/PROFIsafe communication test (FSO-21 / FSPS-21 only): module is connected to a test PROFINET controller and PROFIsafe F-address assignment is verified. (5) Internal diagnostic log review: ABB FSO modules maintain an internal event log accessible via Drive Composer; this log is reviewed for any latent fault codes prior to shipment. Units failing any stage of this protocol are quarantined and not dispatched.
