ABB FSO Safety Option Modules: FSO-12

Technical Dossier

Product Details And Specifications

ABB FSO Series Technical Notes

The Evolution of FSO Architecture

ABB introduced the FSO module concept alongside the ACS880 single drive platform, launched circa 2012–2013, as a response to tightening machinery safety directives (EU Machinery Directive 2006/42/EC) and the growing adoption of IEC 61800-5-2 (functional safety requirements for adjustable speed electrical power drive systems). Early FSO-11 modules provided a foundational set of safety functions — STO, SS1, SLS, SMS — via a dedicated fiber-optic or digital I/O interface to the drive's SPTO safety processor. The FSO-12 followed as the expanded-capability variant, adding support for SDI (Safe Direction Indication), SBC (Safe Brake Control), and extended SLS speed window configurations, making it suitable for more complex multi-axis and crane applications.

Compatibility is tightly coupled to ACS880 firmware generations. FSO modules require specific drive firmware versions and SPTO board revisions; cross-generation substitution without firmware alignment is not supported. The FSO series does not retrofit to ACS800, ACS600, or earlier ABB drive platforms — those platforms use separate safety relay or option board architectures. As the ACS880 platform matures into its second decade of production, FSO modules have transitioned from active development to sustained production and lifecycle support phase, with ABB committing to spare parts availability under its long-term service agreements.

FSO Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified FSO series module range and associated accessories for ACS880 drives. Each entry reflects a distinct hardware configuration or accessory role within the safety option ecosystem.

FSO-11: Safety functions option module, basic variant; supports STO, SS1, SLS, SMS, SOS via digital I/O interface.

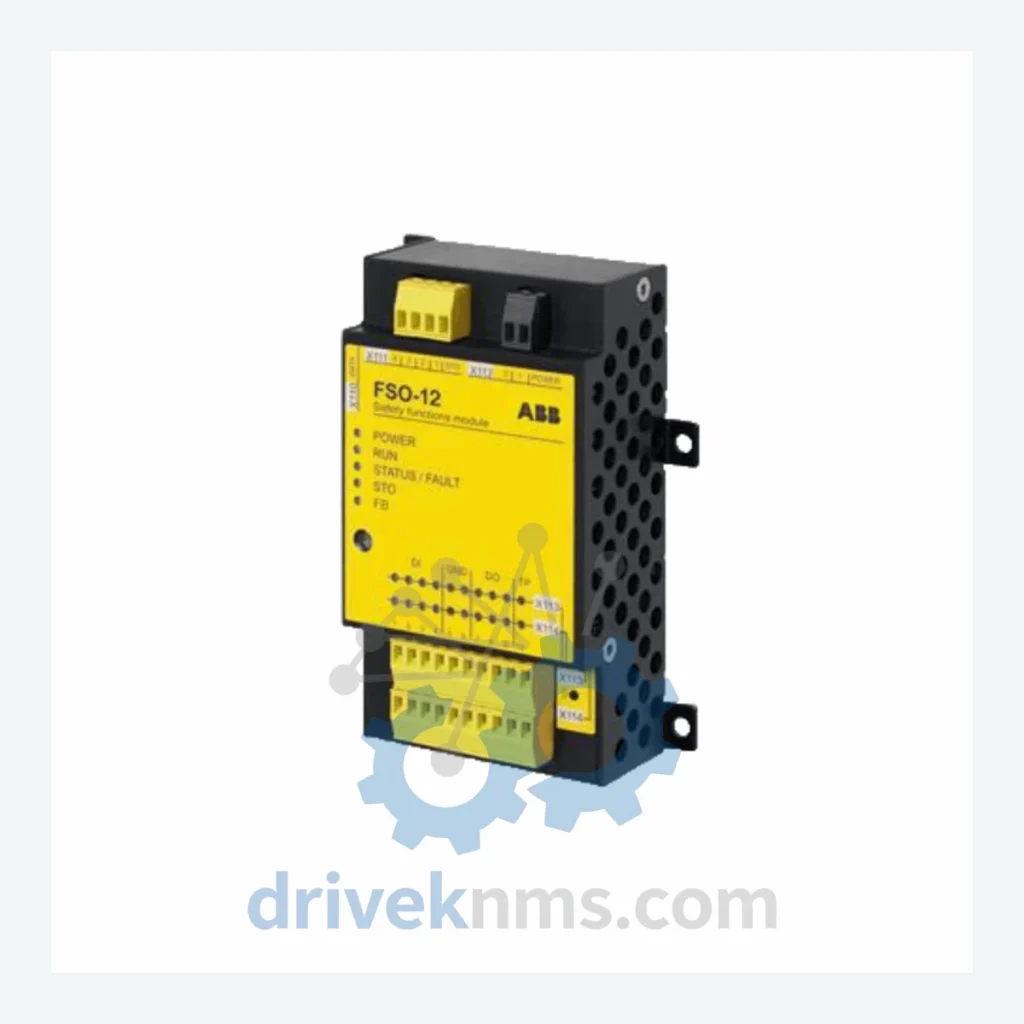

FSO-12: Safety functions option module, extended variant; adds SDI, SBC, and multi-window SLS to FSO-11 feature set.
FSO-21: Safety functions option module for ACS880 multidrives; rack-mount form factor for common DC bus cabinet configurations.
FSPS-21: PROFIsafe option module; enables FSO safety function control via PROFINET/PROFIsafe protocol (SIL 2 / PLd certified).
FENA-21: Ethernet adapter module; supports EtherNet/IP, Modbus TCP, PROFINET — used alongside FSO for network-integrated safety architectures.
FDIO-01: Digital I/O extension module; expands FSO-12 I/O capacity for applications requiring additional safe digital inputs/outputs.
FAIO-01: Analog I/O extension module; provides safe analog input channels for speed reference and feedback in SLS/SMS configurations.
FCAN-01: CANopen adapter module; integrates ACS880 drives into CANopen safety networks alongside FSO safety functions.
FDNA-01: DeviceNet adapter module; legacy fieldbus integration for FSO-equipped drives in DeviceNet plant networks.
FPBA-01: PROFIBUS DP adapter module; used in FSO installations requiring PROFIBUS process control integration.
FMBA-01: Modbus RTU adapter module; serial fieldbus integration for FSO-equipped ACS880 drives.
FECA-01: EtherCAT adapter module; high-speed cyclic communication for FSO-integrated drives in EtherCAT motion networks.
FSEA-21: Safety encoder interface module; provides SIL 2-rated encoder feedback for SSM, SLS, and SOS safety functions requiring closed-loop speed verification.
SPTO-01: Safety processor and I/O board (internal); the SPTO is the drive-resident safety processor that FSO modules interface with — a critical spare for SPTO board failures.
FSO-12 Spares Kit (SKU: FSO-12): Complete spare parts kit for FSO-12 module servicing, including connector sets, mounting hardware, and module assembly for field replacement.
