ABB HIEE205 Series Modules – HIEE20501R001

Technical Dossier

Product Details And Specifications

ABB HIEE205 Series Technical Notes

The ABB HIEE205 series comprises analog measuring and signal conditioning cards deployed within ABB's UNITROL excitation control systems and related power automation platforms. These modules are installed across critical heavy-industry infrastructure globally, including hydroelectric and thermal power stations, chemical processing plants, oil refineries, and nuclear facility auxiliary systems. The HIEE205 board family interfaces directly with ABB's excitation regulators (UNITROL 1000, 5000, 6000, and 6800 series), providing precision analog signal acquisition, scaling, and transmission to the central control processor. Their long service life — often exceeding 20 years in continuous operation — makes reliable spare part sourcing a primary concern for plant maintenance engineers worldwide.

The Evolution of HIEE205 Architecture

The HIEE205 series was introduced as part of ABB's second-generation analog I/O infrastructure for rotating machine excitation control, succeeding earlier HESG and HESE board families. Early revisions (R001–R002) used through-hole component technology with discrete op-amp signal chains, targeting 4–20 mA and ±10 V analog ranges. Subsequent hardware revisions introduced surface-mount components, improved EMI shielding, and tighter calibration tolerances to meet IEC 61000-4 immunity standards required in high-voltage switchgear environments.

HIEE205 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented HIEE205 series range. Each module is classified by primary function:

Analog Input / Measuring Cards

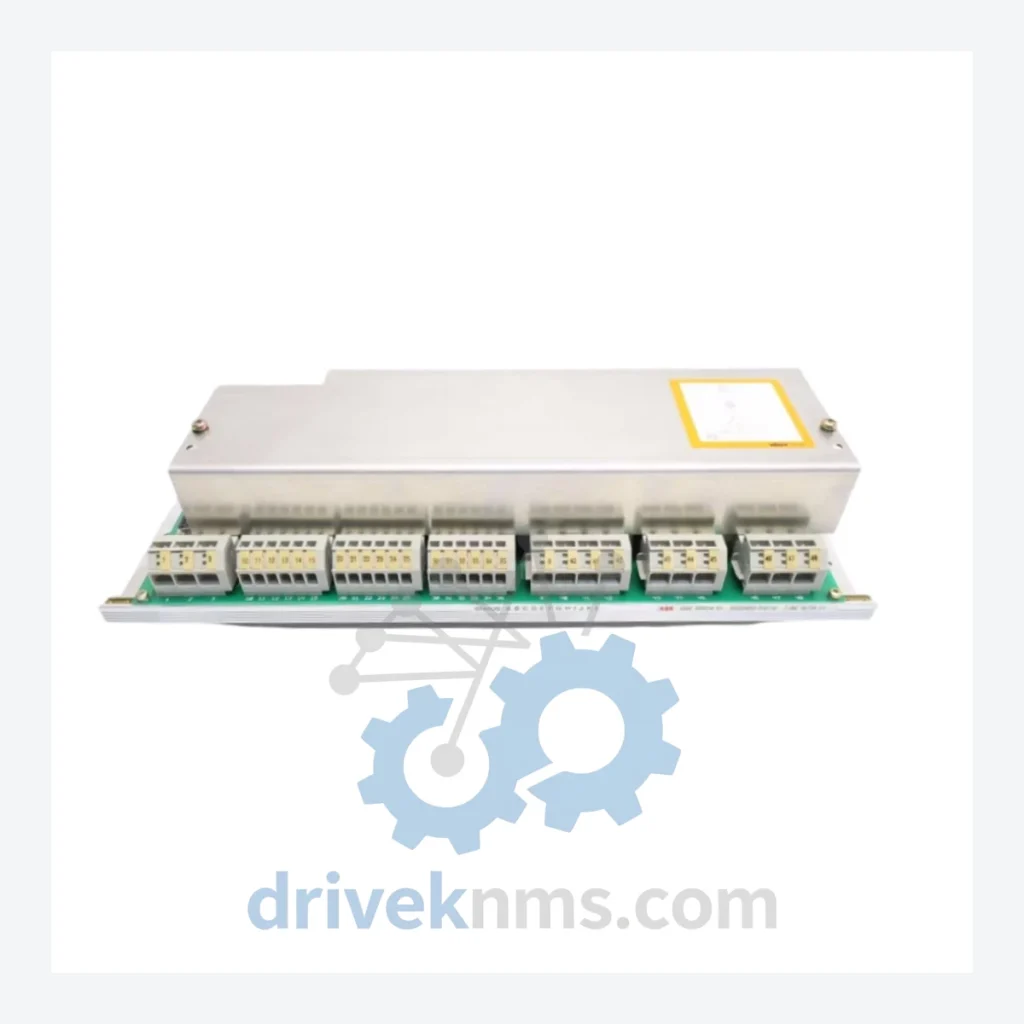

• HIEE20501R001: Analog measuring card, multi-channel voltage/current input, UNITROL excitation interface
• HIEE20501R002: Analog measuring card Rev.2, improved EMC filtering, drop-in replacement for R001
• HIEE20501R003: Analog measuring card Rev.3, SMD redesign, extended temperature range
• HIEE20502R001: Dual-channel analog input card, differential measurement, ±10 V range
• HIEE20502R002: Dual-channel analog input card Rev.2, 16-bit ADC resolution
• HIEE20503R001: Analog signal conditioning card, 4–20 mA loop-powered inputs
• HIEE20503R002: Analog signal conditioning card Rev.2, galvanic isolation per channel
• HIEE20504R001: High-accuracy analog measuring card, ±0.1% full-scale accuracy, PT100 compatible
• HIEE20505R001: Analog output card, 4-channel DAC, 0–10 V / 4–20 mA selectable
• HIEE20505R002: Analog output card Rev.2, 12-bit DAC, HART protocol support

Digital I/O & Interface Modules

• HIEE20506R001: Digital input card, 16-channel 24 VDC, optocoupler isolated
• HIEE20506R002: Digital input card Rev.2, extended voltage range 18–60 VDC
• HIEE20507R001: Digital output card, 8-channel relay output, 250 VAC / 5 A rated
• HIEE20508R001: Communication interface card, RS-485 / Modbus RTU, UNITROL bus compatible
• HIEE20509R001: Power supply interface card, 24 VDC regulated output, backplane distribution

Processor & Control Modules

• HIEE20510R001: Processor card, local control logic, EPROM-based firmware storage
• HIEE20511R001: Redundancy switchover card, hot-standby excitation channel management

Sourcing Hard-to-Find & Obsolete HIEE205 Parts

ABB ceased active production of the HIEE205 series as UNITROL platforms transitioned to the UNITROL 6800 and subsequent digital excitation architectures. For plant operators maintaining legacy UNITROL 1000, 5000, and 6000 installations, the HIEE205 modules represent a critical long-tail spare requirement with no direct OEM supply channel.

Quality Control for the HIEE205 Range

The HIEE205 series presents specific test challenges due to its integration with ABB's proprietary UNITROL backplane bus and its reliance on precision analog signal chains. DriveKNMS applies the following test protocol to all HIEE205 units prior to dispatch:

• Visual inspection: PCB for corrosion, component damage, capacitor bulge, and connector pin integrity
• Backplane connector continuity test: all signal, power, and ground pins verified against ABB reference schematics
• Analog channel functional test: each input/output channel exercised across full-scale range using calibrated signal sources; linearity and offset error recorded
• Isolation resistance test: channel-to-channel and channel-to-chassis isolation verified per IEC 61010-1
• Burn-in cycle: 48-hour powered soak at 40°C ambient to screen latent component failures
• Firmware/EPROM verification (where applicable): checksum validated against known-good reference images
• Final calibration check: output accuracy verified within ±0.5% full-scale before packaging
