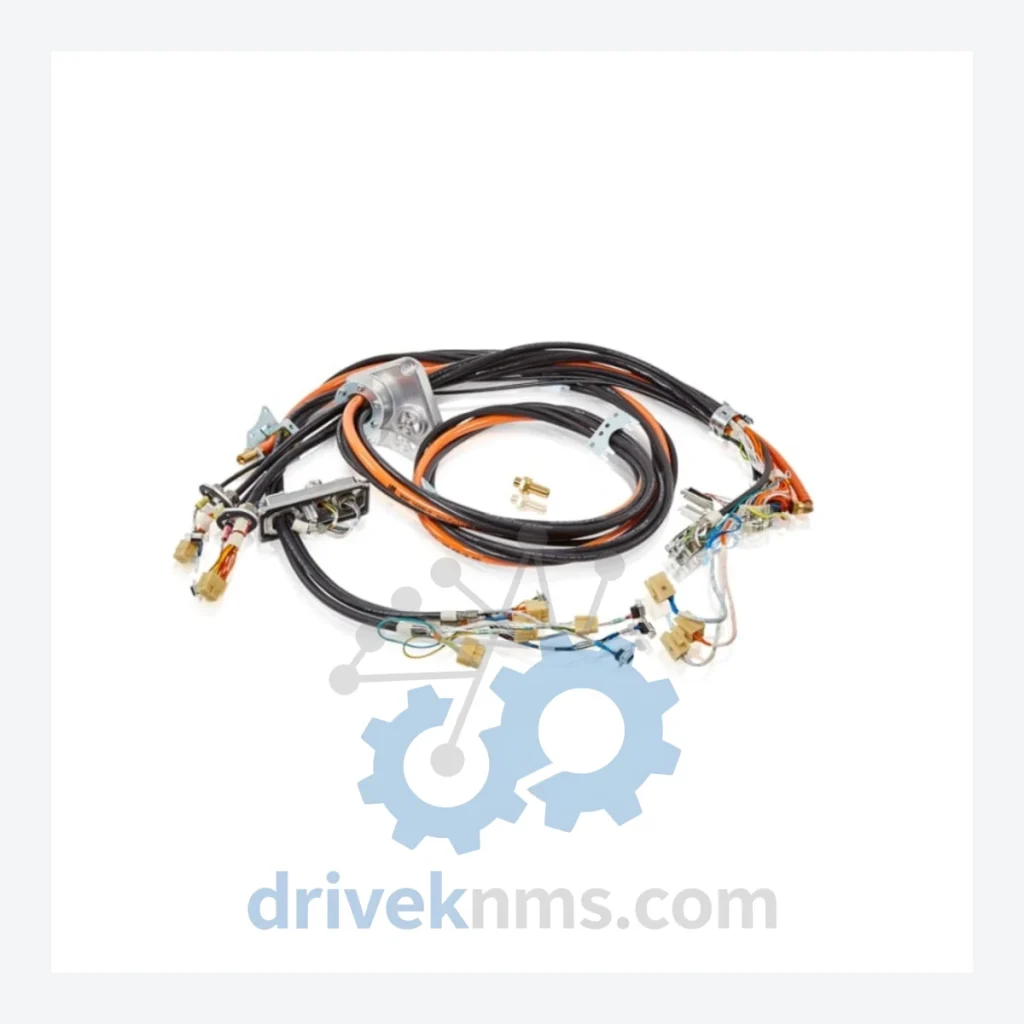

ABB 3HAC069651-001 Cable Harness Basic – Obsolete IRB 4600 Spare Part

Technical Dossier

Product Details And Specifications

ABB 3HAC069651-001 Cable Harness Basic – Obsolete IRB 4600 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this harness assembly are not published in open documentation. DriveKNMS does not fabricate specifications. Buyers requiring detailed wiring diagrams should reference ABB IRB 4600 Product Manual (Document ID: 3HAC026876-001) or contact our technical team.

Solving the Discontinued Hardware Crisis

The ABB IRB 4600 was a workhorse of mid-payload automation — deployed extensively in automotive body-in-white lines, foundry tending, and machine loading applications. Many of these installations represent capital investments made between 2007 and 2018. The robots themselves remain mechanically sound. The failure point is almost always a wear component: a cable harness that has cycled millions of times through the full range of motion of the manipulator.

The 3HAC069651-001 routes signal and power cables through the lower arm and base of the IRB 4600-1/63 variant. When insulation degrades, connectors oxidize, or the harness develops intermittent faults, the robot controller generates axis errors that are frequently misdiagnosed as servo drive or motor failures — leading to unnecessary and expensive component replacements before the root cause is identified.

How to extend your ABB IRB 4600 asset life by 5–10 years:

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance protocol to all obsolete and aged spare parts before dispatch review. For cable harness assemblies, this process addresses the specific failure modes associated with long-term storage and operational wear:

1. Visual and physical inspection: Full external inspection of the harness jacket, connector housings, and strain relief points. Any unit showing jacket cracking, connector deformation, or mechanical damage is rejected.
2. Pin and connector integrity check: Each connector is inspected for pin corrosion, oxidation, and seating integrity. Corroded contacts are treated or the unit is downgraded. Connectors with bent or recessed pins are not shipped.
3. Continuity and insulation resistance test: All signal and power conductors are tested for continuity. Insulation resistance is measured to confirm no internal breakdown has occurred during storage.
4. Firmware and labeling verification: Part numbers, revision markings, and ABB labeling are cross-checked against known-good reference units to confirm authenticity and correct revision level.
5. Packaging for long-term storage: Units are repackaged in anti-static, moisture-barrier packaging with desiccant. Storage conditions are logged. Units are not shipped in degraded packaging.

Key Features for System Maintenance

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are inspected against ABB reference documentation and known-good samples. Part number markings, connector types, and cable construction are verified. We do not source from unverified secondary markets. Provenance documentation is available on request.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: Can export requirements be reviewed?
A: Destination, documentation and routing requirements are confirmed during RFQ review.
