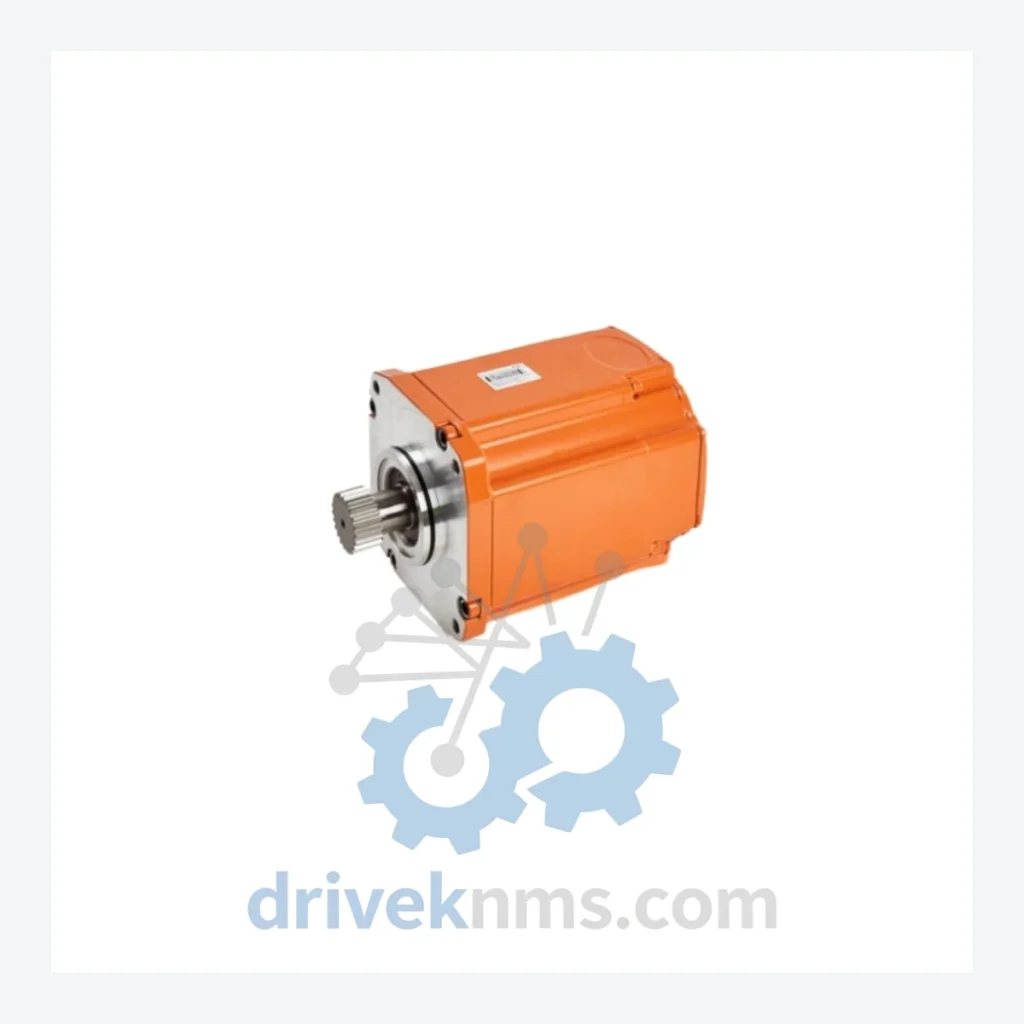

ABB IRB4603HAC025007-001 Reducer Motor – Obsolete IRB 4603 Spare Part

Technical Dossier

Product Details And Specifications

ABB IRB4603HAC025007-001 Reducer Motor – Obsolete IRB 4603 Spare Part

When a reducer motor fails on an ABB IRB 4603 robot, the production line stops. For facilities still running IRB 4603 cells — a platform ABB discontinued years ago — sourcing a replacement is not a matter of placing a standard purchase order. The HAC025007-001 reducer is no longer manufactured. A single failed unit can force a choice between an unplanned line shutdown and a full robotic cell replacement costing upward of $300,000 USD, plus engineering, reprogramming, and requalification costs that routinely double that figure. DriveKNMS maintains verified stock of this unit specifically to prevent that outcome.

Technical Specifications

Note: Electrical parameters such as rated torque, gear ratio, and input speed are axis-position dependent on the IRB 4603 platform. Confirm axis assignment before ordering. DriveKNMS technical staff can assist with cross-referencing.

Solving the Discontinued Hardware Crisis

The ABB IRB 4603 was a workhorse in automotive body-in-white, foundry, and heavy-payload assembly lines throughout the 1990s and 2000s. Many of these cells remain in production today — not because operators are unaware of the platform's age, but because the cost and disruption of replacement cannot be justified against a machine that still performs within specification.

The reducer motor is the single highest-wear mechanical component in any articulated robot joint. On the IRB 4603, the HAC025007-001 unit is a non-interchangeable, axis-specific assembly. There is no cross-compatible modern substitute that installs without mechanical modification and full axis recalibration. When this part fails, the robot arm is offline. When the robot arm is offline in a high-throughput cell, the downstream impact is measured in hours of lost production per day, not minutes.

Facilities that have extended IRB 4603 service life by 5 to 10 years beyond ABB's support window have done so through one consistent strategy: maintaining a dedicated spare parts inventory for the three highest-failure components — the reducer assembly, the motor encoder, and the axis brake module. The per-unit cost of holding one spare HAC025007-001 is a fraction of a single day of unplanned downtime. For plant managers operating under capital expenditure constraints, this is not a procurement decision — it is a risk management decision.

Condition & Reliability Assurance

Every HAC025007-001 unit processed by DriveKNMS passes a structured 5-stage inspection protocol before it is offered for sale:

• Stage 1 – Electrolytic Capacitor Assessment: Internal capacitors are tested for capacitance drift and ESR degradation. Units with aged capacitors are recapped with equivalent-spec components before release.
• Stage 2 – Firmware & Encoder Version Verification: Where applicable, encoder firmware is confirmed against the IRB 4603 compatibility matrix to prevent axis calibration conflicts post-installation.
• Stage 3 – Pin & Connector Corrosion Inspection: All electrical connectors and signal pins are inspected under magnification. Corroded or oxidized contacts are cleaned or replaced. Units with structural pin damage are rejected.
• Stage 4 – Mechanical Backlash & Seal Integrity Check: The reducer gearset is checked for abnormal backlash and the output shaft seal is inspected for integrity to prevent lubricant loss in service.
• Stage 5 – Final Functional Verification: Where test bench capacity permits, units are run under load simulation to confirm operational performance prior to packaging.

Key Features for System Maintenance

• Drop-in Replacement: The HAC025007-001 is a direct OEM-equivalent assembly. Installation follows the original ABB service manual procedure with no mechanical adaptation required.
• No Reprogramming Required: Axis parameters remain intact in the S4C/S4C+ controller after a like-for-like reducer swap. There is no requirement to re-enter robot programs or reconfigure motion paths beyond standard axis calibration.
• Avoids Engineering Reconstruction Costs: Substituting a non-OEM reducer or migrating to a different robot platform requires mechanical redesign of the end-of-arm tooling, fixture re-qualification, and full production revalidation — costs that routinely exceed $150,000 USD per cell. A verified OEM spare eliminates this exposure entirely.
• Long-Term Asset Protection: A single spare unit held in climate-controlled storage provides insurance against the most common failure mode on aging IRB 4603 installations, extending productive asset life without capital expenditure.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all refurbished units, and a 180-day warranty on verified New Old Stock units. Warranty terms are confirmed in writing at the time of order.

How do I confirm the unit is genuine ABB and not a counterfeit?
All units are sourced through documented industrial surplus and decommissioning channels. Upon request, DriveKNMS provides traceability documentation including source records and inspection reports. We do not source from unverified secondary markets.

Should I purchase more than one unit?
For facilities operating multiple IRB 4603 cells, or for single-cell operations where downtime cost exceeds $10,000 USD per day, holding a minimum of two spare reducer units is the standard recommendation. Global stock of HAC025007-001 is finite and diminishing. Units available today will not be available indefinitely.

Can this part be shipped internationally?
Yes. DriveKNMS ships globally with full export documentation. Lead time and shipping options are confirmed at the time of inquiry.
