ABB IRB6600 3HAC17484-8

Technical Dossier

Product Details And Specifications

ABB IRB6600 Series Technical Notes

The Evolution of IRB6600 Architecture

The IRB6600 was introduced in the early 2000s as a successor to the IRB6400 platform, inheriting the same large-frame philosophy but incorporating a redesigned parallel-arm kinematic structure that significantly improved reach-to-footprint ratio. Early production units (2002–2006) were paired exclusively with the S4C+ controller, using DSQC series drive and I/O boards. From approximately 2006 onward, ABB transitioned the IRB6600 to the IRC5 controller ecosystem, introducing the DSQC 661/663 drive unit architecture and the FlexPendant interface.

Key architectural milestones include the introduction of the M2000 and M2004 mechanical variants, which revised the axis-1 base casting and upper arm geometry for improved rigidity under eccentric loads. The M7 mechanical designation (as referenced in 3HAC17484-8) identifies a specific motor-gearbox assembly generation used on axis configurations requiring high torque output at reduced speed. Compatibility between M2000, M2004, and M7 mechanical generations must be verified against the robot's serial number plate before ordering replacement drive components.

IRB6600 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components associated with the ABB IRB6600 platform. Each entry reflects a discrete line-replaceable unit (LRU) or sub-assembly used in robot maintenance and overhaul operations.

Rotational AC Motors & Drive Assemblies

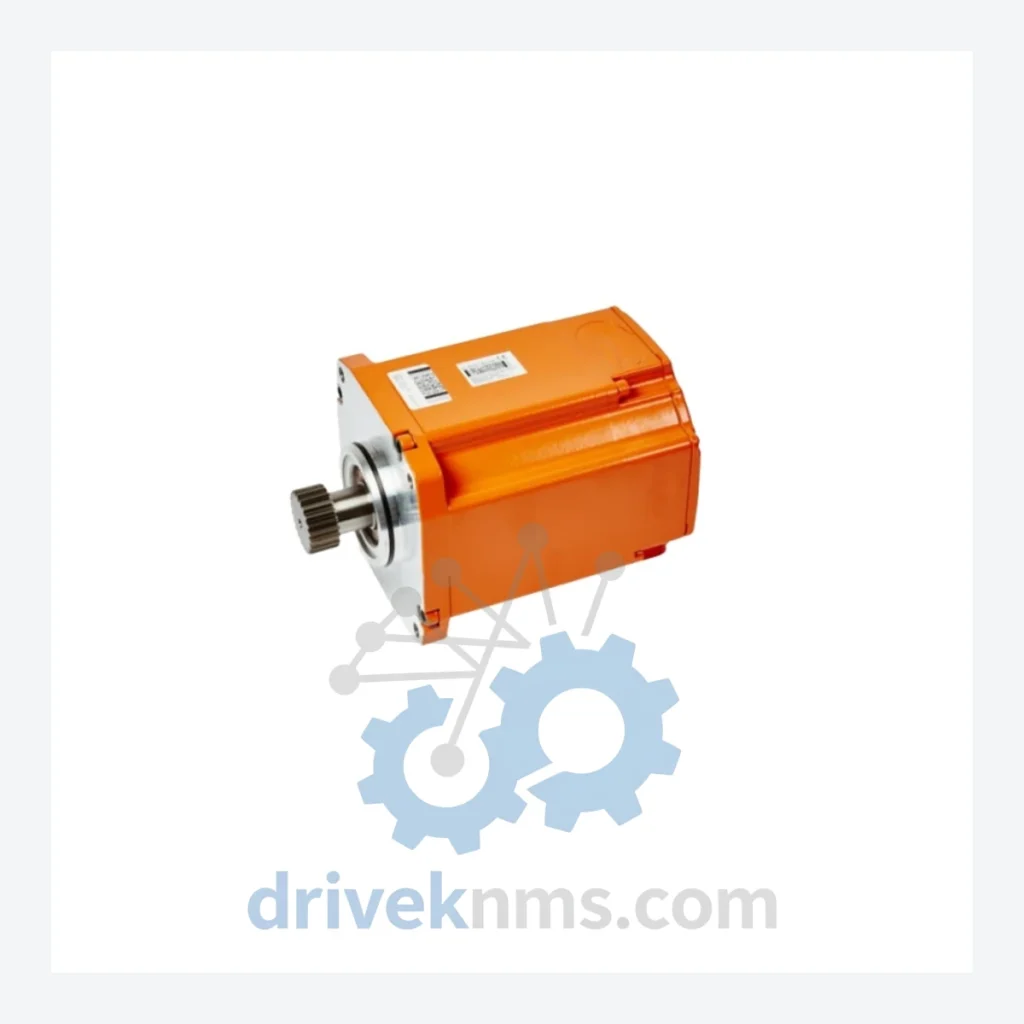

• 3HAC17484-8: Rotational AC motor M7, axis drive unit for high-torque joint actuation on IRB6600 upper arm.
• 3HAC14550-2: AC servo motor, axis 1 base rotation, compatible with M2004 mechanical generation.
• 3HAC14550-4: AC servo motor, axis 2 lower arm, revised winding specification for extended duty cycle.
• 3HAC14550-6: AC servo motor, axis 3 upper arm, standard replacement for M2000/M2004 frames.
• 3HAC17484-1: Rotational AC motor M7 variant, axis 4 wrist rotation, reduced inertia configuration.
• 3HAC17484-3: Rotational AC motor M7 variant, axis 5 wrist bend, IP67 sealed for foundry environments.

Gearbox & Mechanical Transmission

• 3HAC028284-001: Gearbox unit axis 1, complete assembly with output flange, IRB6600-175/2.55.
• 3HAC028285-001: Gearbox unit axis 2, lower arm, includes integrated lubrication port.
• 3HAC028286-001: Gearbox unit axis 3, upper arm, compatible with M2004 and M7 motor generations.
• 3HAC025562-001: Wrist unit complete, axes 4/5/6, IRB6600 standard reach variant.

Controller & Drive Electronics (IRC5 / S4C+)

• 3HAC026254-001: Drive unit IRC5, single-cabinet configuration, 400V AC input, axes 1–6.
• 3HAC025338-001: Computer unit IRC5 (DSQC 661), main controller board, IRC5 single cabinet.
• 3HAC025562-001: I/O unit DSQC 652, 16DI/16DO digital I/O board for IRC5 controller.
• DSQC 663: Axis computer board, IRC5 drive section, manages servo loop for axes 1–3.
• 3HAC031670-001: Teach pendant cable assembly, IRC5 FlexPendant, 10 m standard length.

Power Supply & Safety

• 3HAC024488-001: Power supply unit IRC5, 24VDC auxiliary rail, controller cabinet internal.
• 3HAC026254-002: Safety board DSQC 400, emergency stop and safeguard monitoring, IRC5 compatible.
• 3HAC14178-1: Battery backup unit, SMB (Serial Measurement Board) memory retention, axes 1–6.

Quality Control for the IRB6600 Range

IRB6600 motor and gearbox assemblies present specific test challenges due to the high torque ratings, integrated resolver feedback systems, and multi-axis mechanical interdependencies. DriveKNMS applies the following verification protocol to all IRB6600 units prior to dispatch:

• Electrical continuity and insulation resistance: Winding resistance measured per phase; insulation resistance tested at 500VDC (minimum 100 MΩ acceptance threshold).
• Resolver signal integrity: Excitation and feedback signals verified against ABB reference values for the specific motor generation (M7 resolver specification: 7 Vrms excitation at 10 kHz).
• Mechanical backlash measurement: Output shaft rotational play measured with dial indicator; acceptance limit per ABB service manual tolerance table.
• Thermal cycling: Motors subjected to operational temperature ramp (ambient to 80°C) to verify bearing preload stability and winding thermal coefficient.
• Functional run-in: Where test bench infrastructure permits, motor assemblies are run under load for a minimum 30-minute burn-in cycle with vibration signature monitoring.

All test results are documented and available to the customer upon request as part of the shipment package.
