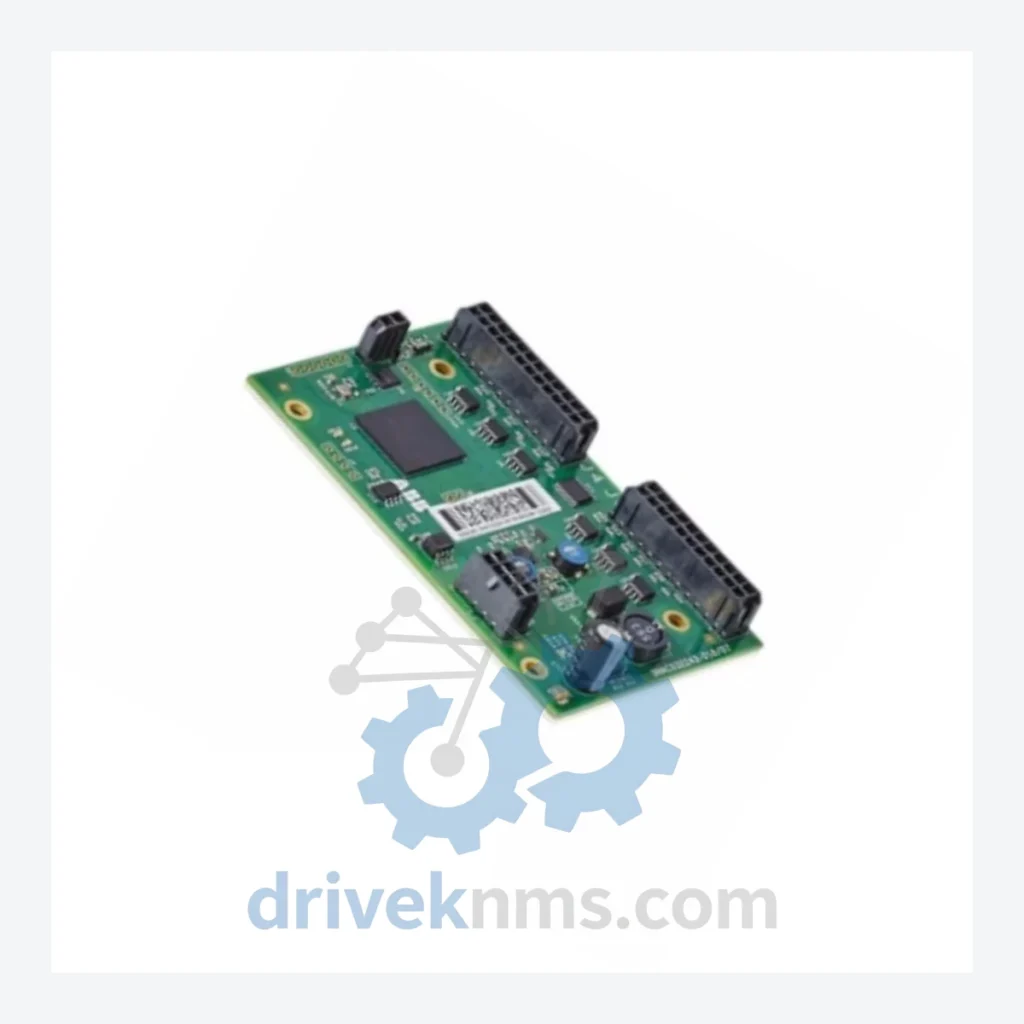

ABB DSQC401 3HAC032243-016 Drive Control Board – Obsolete IRC5 Spare Part

Technical Dossier

Product Details And Specifications

ABB DSQC401 3HAC032243-016 Drive Control Board – Obsolete IRC5 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage rails and bus specifications are controller-dependent. We do not publish unverified figures. Contact us with your controller serial number for a compatibility confirmation before ordering.

Solving the Discontinued Hardware Crisis

The ABB IRC5 platform entered widespread deployment in the mid-2000s and became the dominant controller architecture across automotive body shops, foundries, and heavy-part handling cells globally. The DSQC401 drive control board sits at the core of the IRC5 drive module, managing the power interface between the controller's main computer and the servo drive axes. Without it, the robot is inoperable — not degraded, not limited, inoperable.

Facilities that have extended IRC5 system life by 5 to 10 years beyond OEM support windows share a common practice: they treat critical discontinued boards as capital assets, not consumables. A structured spare parts inventory — covering the DSQC401, the DSQC400 main computer board, and the DSQC374 I/O board — provides a maintenance buffer that defers multi-million-dollar system replacement decisions until the mechanical components of the robot itself justify retirement. The servo motors, gearboxes, and structural arms of an IRB 6600 routinely outlast the electronics by a decade when the electronics are properly maintained and replaced at the board level.

Condition & Reliability Assurance

Sourcing a discontinued board from the secondary market carries legitimate risk. DriveKNMS applies a 5-step inspection protocol to every DSQC401 unit before it is offered for sale:

Step 1 – Visual and Physical Inspection: Full board examination under magnification. Solder joint integrity, PCB trace condition, connector pin inspection for corrosion, bending, or mechanical damage.

Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary failure point on boards of this age. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with degraded capacitors are either recapped or rejected — they are not sold as-is.

Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and disclosed. Compatibility with specific IRC5 software versions (RobotWare) is noted. Customers are advised to confirm RobotWare version compatibility with their system before installation.

Step 4 – Pin and Connector Corrosion Check: All edge connectors and board-to-board connectors are cleaned and inspected. Oxidation on connector pins is a common cause of intermittent faults that are misdiagnosed as board failure. Units with connector damage beyond cleaning tolerance are rejected.

Step 5 – Functional Verification (where test equipment permits): Boards are bench-tested against known-good IRC5 drive module configurations where our test infrastructure supports it. Test results are documented and available on request.

Key Features for System Maintenance

The DSQC401 is a direct drop-in replacement for the original board position within the IRC5 drive module. Installation does not require robot reprogramming, RAPID code modification, or changes to the IRC5 system parameters in most standard configurations. The replacement procedure follows ABB's standard board swap protocol documented in the IRC5 Product Manual (3HAC021313-001).

The cost differential between a board-level repair and a controller migration is not marginal. It is structural. Facilities that manage their IRC5 spare parts inventory at the board level retain full control over their maintenance budget and their production schedule. Facilities that do not are dependent on OEM upgrade timelines and OEM pricing when a failure occurs.

How do I know the unit is genuine and not counterfeit?
All DSQC401 units sourced by DriveKNMS are verified against ABB's physical part markings, PCB revision codes, and component layout. We do not source from unverified brokers. Provenance documentation is available for NOS units. If you require third-party authentication, we can facilitate that process prior to shipment.

Can you source other discontinued IRC5 boards?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components. If you maintain an IRC5 installation and want to build a structured spare parts inventory, contact us with your controller configuration and we will advise on availability across the full DSQC board range.
