ABB IRB 6640 Series: Comprehensive Module Range and Technical Overview

The ABB IRB 6640 is a six-axis industrial robot platform engineered for high-payload, high-precision applications across global heavy industry. With a payload capacity ranging from 130 kg to 235 kg and a reach envelope of up to 3.2 meters, the IRB 6640 series has established a dominant installed base in automotive body-in-white assembly, chemical plant material handling, nuclear facility maintenance operations, and petroleum refinery process automation. Its modular mechanical architecture — built around a cast iron frame, precision-ground gearboxes, and servo-driven axis motors — enables long service intervals and supports structured spare parts management programs across multi-decade plant lifecycles.

The IRB 6640 operates under ABB's IRC5 controller platform and is compatible with RobotWare 5.x and 6.x software environments. Its mechanical design is derived from the IRB 6600 lineage and shares dimensional and interface compatibility with select components from the IRB 6650S and IRB 6700 transition variants, making cross-series parts sourcing a structured discipline for maintenance engineers.

The Evolution of IRB 6640 Architecture

The IRB 6640 was introduced in the mid-2000s as a direct successor to the IRB 6600, addressing demand for higher payload density and improved axis speed in automotive transfer lines. The initial release covered the 130/3.2 and 185/2.8 payload/reach configurations. Subsequent variants extended the series to include the 205/2.75 and 235/2.55 configurations, targeting press-tending and spot-welding applications where compact reach with maximum payload is required.

Mechanically, the IRB 6640 introduced a revised axis-1 base casting with integrated cable routing channels, reducing external harness wear — a known failure mode on the IRB 6600. The axis-2 and axis-3 gearbox interfaces were standardized to accept Nabtesco RV-series reducers, enabling a more consistent spare parts matrix across the production run.

From a controls perspective, the IRB 6640 was designed exclusively for the IRC5 single-cabinet and dual-cabinet controller. It does not support the legacy S4C+ controller used with the IRB 6600. This architectural boundary is a critical compatibility constraint for facilities operating mixed-generation robot fleets. As of 2026, the IRB 6640 series is in the mature/end-of-active-production phase, with ABB having transitioned primary development resources to the IRB 6700 and IRB 6790 platforms. Long-term maintenance support for IRB 6640 installations therefore depends substantially on third-party spare parts suppliers and certified refurbishment channels.

IRB 6640 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB IRB 6640 mechanical and electrical spare parts matrix, organized by functional category:

Axis Drive Motors & Mechanical Drive Components

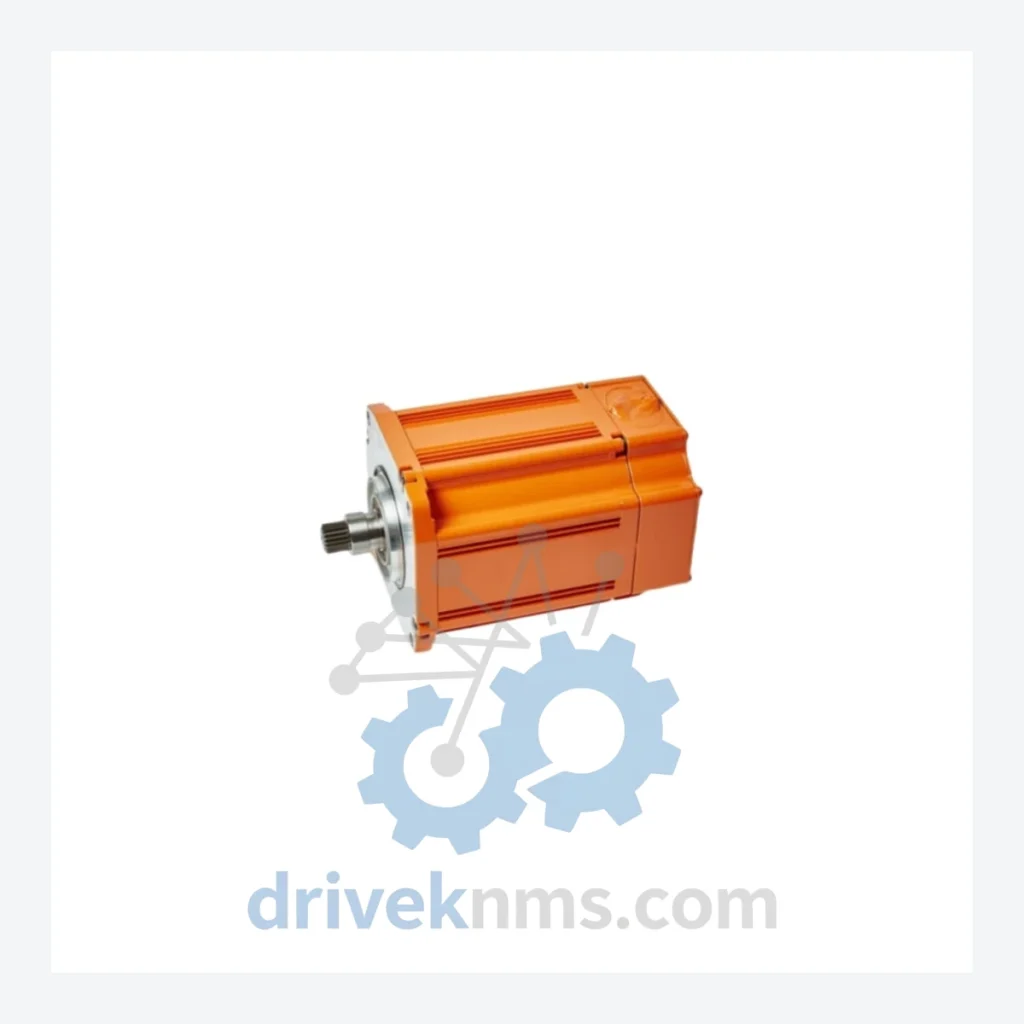

• IRB66403HAC033182-001: Axis motor assembly with integrated pinion gear for axis-1 base rotation drive — the subject SKU of this listing.
• 3HAC026253-001: Axis-1 motor unit, standard configuration, compatible with IRB 6640/185/2.8 and 205/2.75 variants.
• 3HAC026254-001: Axis-2 motor unit with resolver feedback, rated for continuous duty in press-tending cycles.
• 3HAC026255-001: Axis-3 motor unit, upper arm drive, compatible across all IRB 6640 payload variants.
• 3HAC026256-001: Axis-4 wrist rotation motor, compact frame, integrated encoder.
• 3HAC026257-001: Axis-5 wrist bend motor, high-resolution resolver, IP67 rated.
• 3HAC026258-001: Axis-6 tool flange rotation motor, low-inertia design for high-cycle tooling applications.

Gearboxes & Reducers

• 3HAC028357-001: Axis-1 gearbox assembly, Nabtesco RV-320E reducer, pre-lubricated, ready-to-install.
• 3HAC028358-001: Axis-2 gearbox assembly, RV-500E series, rated for 185 kg payload configuration.
• 3HAC028359-001: Axis-3 gearbox, upper arm, compatible with 130/3.2 and 185/2.8 reach variants.
• 3HAC028360-001: Axis-4 wrist gearbox, compact harmonic drive unit.

Structural & Mechanical Frame Components

• 3HAC031683-001: Lower arm assembly, complete with axis-2/3 interface flanges, for 185/2.8 configuration.
• 3HAC031684-001: Upper arm tube assembly, pre-drilled for standard cable harness routing.
• 3HAC033593-001: Axis-1 base casting with integrated cable channel, cast iron, powder-coated.

Electrical & Signal Components

• 3HAC031683-003: Axis measurement unit (AMU), serial measurement board for axes 1–3, IRC5 compatible.
• 3HAC026254-003: Resolver cable harness, axis-2, shielded, 3-meter standard length.
• 3HAC033182-002: Pinion gear, standalone replacement, axis-1 motor output shaft, module 2.5.

Sourcing Hard-to-Find & Obsolete IRB 6640 Parts

As the IRB 6640 series transitions from active production to lifecycle support status, procurement of mechanical drive components — particularly axis motors with integrated pinions such as the IRB66403HAC033182-001 — increasingly requires engagement with specialist distributors outside ABB's standard channel. OEM lead times for obsolete or low-volume SKUs frequently exceed 16–24 weeks, creating unacceptable downtime risk for continuous-process facilities.

DriveKNMS maintains a dedicated inventory program for IRB 6640 mechanical and electrical spare parts, sourced through verified industrial surplus channels, authorized refurbishment partners, and direct factory-new stock where available. Each unit is catalogued against the original ABB part number matrix and cross-referenced for variant compatibility before listing. For facilities operating IRB 6640 fleets in chemical, nuclear, or refinery environments — where robot downtime carries regulatory and safety implications — DriveKNMS provides expedited sourcing, condition-graded inventory options, and documented traceability records suitable for maintenance management systems.

Quality Control for the IRB 6640 Range

The IRB 6640's mechanical architecture presents specific inspection requirements that differ from lighter-payload robot families. Axis-1 base rotation assemblies — including the motor/pinion interface covered by IRB66403HAC033182-001 — are subject to backlash measurement against ABB's published tolerance specifications (typically <0.05 mm at the output flange under rated load). All motor units processed by DriveKNMS undergo no-load run-in testing at rated speed, insulation resistance verification at 500 VDC, and resolver signal integrity checks using IRC5-compatible diagnostic equipment.

Gearbox assemblies are inspected for lubricant condition, seal integrity, and input/output bearing play prior to dispatch. Structural components are dimensionally verified against ABB interface drawings to confirm mounting hole patterns and flange face tolerances. All tested units are issued with a condition report referencing the specific test parameters applied, providing maintenance engineers with documented evidence for plant maintenance records.
