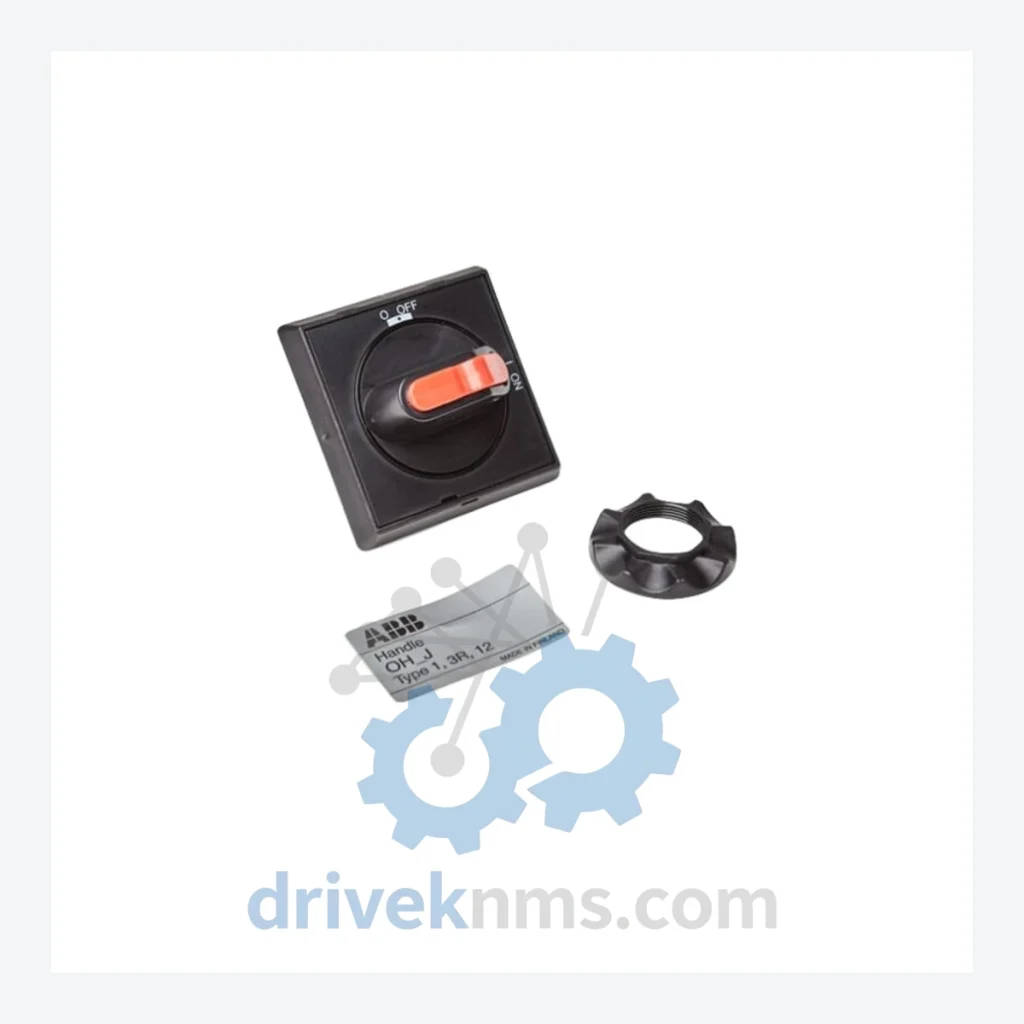

ABB 3HAC024776-001 Handle for 6 mm Switch – Obsolete IRB760 Spare Part

Technical Dossier

Product Details And Specifications

ABB 3HAC024776-001 Handle for 6 mm Switch – Obsolete IRB760 Spare Part

When a single mechanical component on an ABB IRB760 robot arm fails, the consequences extend far beyond a line stoppage. Facilities running legacy ABB IRB760 cells face a stark choice: locate the exact discontinued spare part, or commit to a full robotic cell replacement program that routinely exceeds $500,000 USD in hardware, integration engineering, and production downtime costs. The ABB 3HAC024776-001 Handle for 6 mm Switch is one such component — no longer manufactured, no longer supported through standard ABB distribution channels, yet still load-bearing in thousands of active production environments worldwide.

DriveKNMS maintains verified physical stock of this part. This is not a listing built on broker speculation. If you are reading this, inventory exists at time of publication.

Technical Specifications

Note: Electrical parameters specific to this mechanical handle component are not published by ABB for aftermarket reference. No parameters have been assumed or fabricated. Contact us for full technical documentation if required.

Solving the Discontinued Hardware Crisis

The ABB IRB760 was engineered for high-payload palletizing and material handling tasks — a workhorse platform deployed across food & beverage, automotive logistics, and heavy manufacturing sectors throughout the 1990s and 2000s. ABB has since migrated its portfolio toward the IRB760 successor lines, leaving facilities still operating original IRB760 cells without a factory support path.

The 3HAC024776-001 handle assembly interfaces directly with the 6 mm switch mechanism governing specific axis movement or safety interlock functions on the IRB760 arm. Failure of this component does not merely degrade performance — it can trigger a full robot fault state, halting the cell entirely. In high-throughput palletizing environments, a single robot cell outage can cost $10,000–$50,000 USD per day in lost throughput, depending on line configuration and downstream dependencies.

Replacing the entire robot cell to resolve a failed handle assembly is an engineering and financial decision that no plant manager should be forced into. The correct response is targeted component replacement — provided the part can be sourced. That sourcing problem is precisely what DriveKNMS exists to solve.

How to extend your ABB IRB760 asset life by 5–10 years without a capital replacement program:

• Identify your single points of failure. Conduct a structured audit of all mechanical and electrical components on your IRB760 cells that are no longer available through standard distribution. Prioritize by failure frequency and lead time risk.
• Build a controlled spare parts buffer. For discontinued components with no substitute, holding 2–3 units of critical spares on-site eliminates the sourcing delay that causes extended downtime. The carrying cost of spare parts is a fraction of one day's lost production.
• Establish a refurbishment cycle. Mechanical components such as handles, brackets, and switch assemblies can be professionally refurbished and returned to service. This extends the effective service life of the robot cell without requiring OEM support.
• Document your cross-reference matrix. Parts like the 3HAC024776-001 carry multiple cross-reference numbers (3HAC033624-001, 3HAC026269-003). Maintaining a complete cross-reference list accelerates future sourcing and prevents procurement errors under time pressure.
• Negotiate long-term supply agreements with specialist distributors. Spot-buying obsolete parts at the moment of failure is the most expensive procurement strategy. Establishing a relationship with a specialist supplier like DriveKNMS before a failure event gives you access to reserved inventory and priority allocation.

Facilities that implement these five practices consistently report robot cell operational lifespans of 15–20 years from original installation — well beyond the OEM support window — at a fraction of the cost of capital replacement.

Condition & Reliability Assurance

Every obsolete part shipped by DriveKNMS passes a structured 5-step quality assurance process before dispatch:

1. Visual and mechanical inspection: Full external examination for physical damage, corrosion, pin deformation, and housing integrity. Components showing structural compromise are rejected at this stage.
2. Electrolytic capacitor assessment: Where applicable, aging electrolytic capacitors are identified and flagged. Components with capacitor degradation are either recapped by qualified technicians or classified as refurbished with full disclosure.
3. Firmware and label verification: Part numbers, revision codes, and any firmware version markings are cross-checked against known ABB documentation to confirm authenticity and revision compatibility.
4. Pin and connector corrosion inspection: All electrical contact surfaces are examined under magnification. Oxidation is treated; severely corroded contacts result in part rejection.
5. Functional pre-shipment check: Where test fixtures are available for the component type, a functional verification is performed prior to packaging.

Parts that do not pass all five stages are not sold as functional spares. Condition is disclosed accurately on every order — New Old Stock (NOS) or Professionally Refurbished — with no ambiguity.

Key Features for System Maintenance

• Drop-in replacement: The 3HAC024776-001 installs directly into the original IRB760 mounting position. No mechanical modification required.
• No reprogramming required: This is a mechanical handle assembly. Replacement does not affect robot controller parameters, teach pendant configurations, or safety zone definitions. The robot returns to service with its existing program intact.
• Avoids engineering reconstruction costs: Sourcing this part eliminates the need to engage a systems integrator for cell redesign. The cost differential between a spare part and a cell retrofit is measured in orders of magnitude.
• Compatible cross-references: Verified compatible with part numbers 3HAC033624-001 and 3HAC026269-003 within the IRB760 platform family.
• Immediate dispatch: In-stock items ship within 1–3 business days from our warehouse. No lead time uncertainty.

FAQ

Q: What warranty applies to discontinued parts?
A: DriveKNMS provides a 90-day warranty against defects in material and workmanship on all parts sold as functional. New Old Stock items carry a 90-day warranty. Professionally refurbished items carry a 90-day warranty with full condition disclosure provided at time of sale.

Q: How do I confirm this is a genuine ABB part and not a counterfeit?
A: All parts sourced by DriveKNMS are verified against ABB part number documentation. We provide photographic evidence of the physical part, including label markings and revision codes, prior to shipment upon request. We do not sell unmarked or unverified components as OEM parts.

Q: Should I buy multiple units for long-term inventory?
A: For any discontinued component that is critical to your production continuity, holding a minimum of two spare units on-site is standard practice in industrial asset management. Given that the 3HAC024776-001 is no longer manufactured, available stock in the secondary market is finite. Procurement decisions made under time pressure — after a failure event — consistently result in higher costs and longer downtime. We recommend assessing your IRB760 fleet size and purchasing accordingly.

Q: Can you source other ABB IRB760 discontinued parts?
A: Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. Contact us with your full part number list for availability and pricing.
