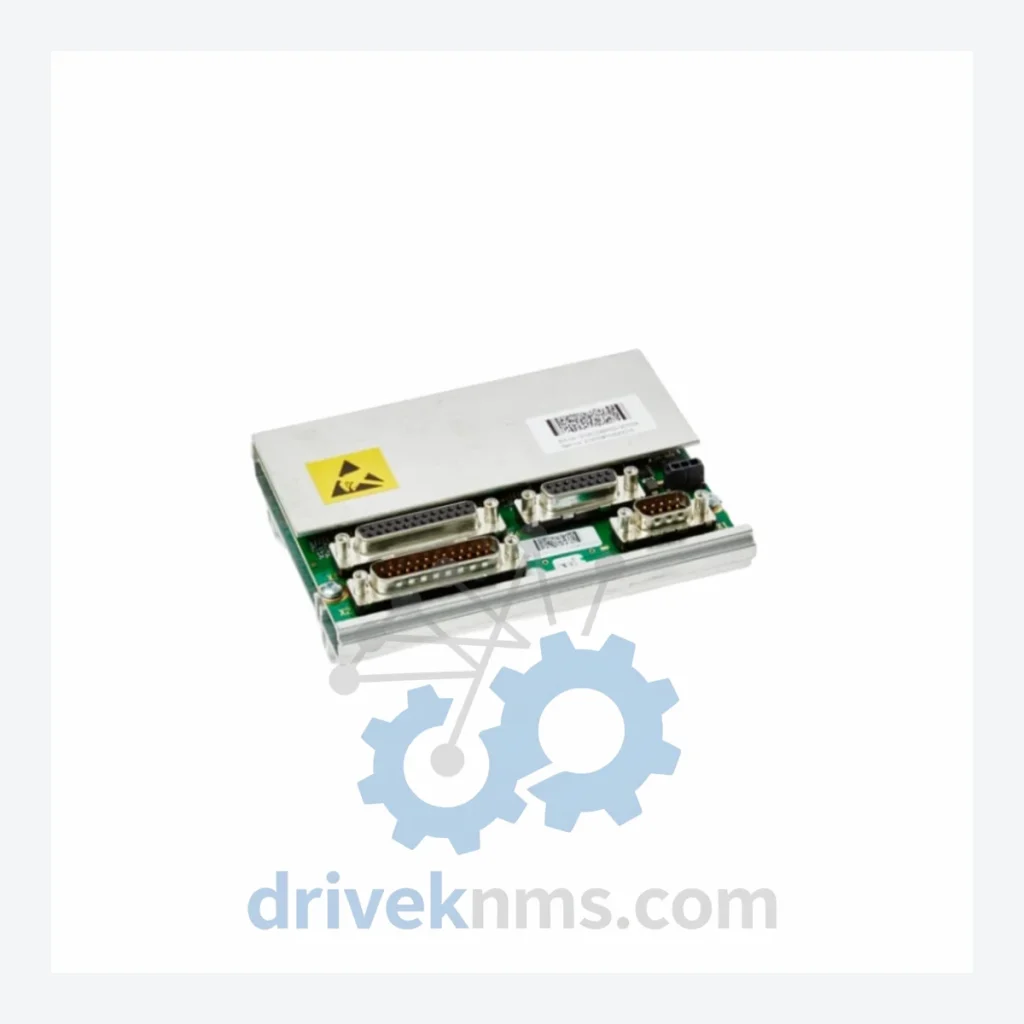

ABB 3HAC14550-2 SMB Unit – Obsolete IRC5 Spare Part

When the Serial Measurement Board (SMB) in an ABB IRC5 robot controller fails, the consequences extend far beyond a single robot arm going offline. In a typical automotive body shop or electronics assembly line, one IRC5 controller governs axis position feedback for the entire robot cell. Without a functioning SMB unit, the controller loses encoder data integrity — the robot cannot be homed, cannot run production cycles, and the line stops. Replacing the entire IRC5 cabinet and migrating to a current-generation OmniCore controller carries a project cost that routinely exceeds USD 150,000–300,000 per robot, once engineering, re-programming, safety re-certification, and production downtime are factored in.

DriveKNMS holds verified physical stock of the ABB 3HAC14550-2 (also catalogued as 3HAC031851-001). This is not a listing built on broker speculation. Securing one board today is the difference between a 48-hour repair and a six-month capital project.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB IRC5 platform was the dominant industrial robot controller from its introduction in 2004 through the mid-2010s. Hundreds of thousands of units remain in active production service globally. ABB's transition to the OmniCore controller architecture has progressively moved IRC5 components — including the SMB unit — out of active production and into end-of-life status.

The SMB board is not a peripheral component. It is the axis measurement backbone of the IRC5 system. It manages the serial communication between the robot's resolver circuits and the main computer, and it holds the battery-backed calibration offset data that defines the robot's zero position. A failed SMB does not produce degraded performance — it produces a hard fault. The robot will not move.

Factory maintenance teams facing this failure have three options: source a replacement SMB from the secondary market, undertake a full controller replacement, or retire the robot. For any facility running more than five IRC5-generation robots, the secondary market sourcing path is the only option that preserves capital budget and avoids a multi-month engineering project. DriveKNMS exists precisely to support that path.

For plant managers under pressure to justify continued operation of IRC5-era assets: a single SMB unit sourced today extends the productive life of a robot that may have 10–15 years of mechanical life remaining in its arm and gearboxes. The controller is the constraint, not the mechanics. Addressing that constraint with a verified spare part — rather than a capital replacement — is a defensible, auditable maintenance decision.

Condition & Reliability Assurance

Every 3HAC14550-2 unit that leaves DriveKNMS passes a five-stage inspection protocol developed specifically for legacy automation hardware:

• Stage 1 – Visual & Mechanical Inspection: Board-level examination for physical damage, burnt traces, cracked solder joints, and connector pin integrity.
• Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on boards of this generation. Each capacitor is measured for ESR (Equivalent Series Resistance) and capacitance drift. Units showing degradation are recapped with equivalent-spec components before dispatch.
• Stage 3 – Firmware Version Verification: The SMB firmware version is confirmed and documented. Compatibility with the target IRC5 software version (RobotWare) is verified prior to shipment.
• Stage 4 – Pin & Connector Corrosion Check: All board connectors and edge pins are inspected under magnification for oxidation and corrosion. Affected contacts are treated or the unit is rejected.
• Stage 5 – Functional Burn-In: Where test infrastructure permits, boards are powered and monitored for thermal stability and signal output before packaging.

Units that do not pass all five stages are not sold as functional spares. They are documented and held separately.

Key Features for System Maintenance

• Drop-in Replacement: The 3HAC14550-2 installs directly into the IRC5 SMB slot with no hardware modification. Connector pinout and mounting are identical to the original factory configuration.
• No Re-Programming Required: After installation, the IRC5 system prompts for axis calibration (revolution counter update). This is a standard maintenance procedure performed with the FlexPendant and does not require ABB service engineers or software licenses.
• Avoids Engineering Reconstruction Costs: Retaining the IRC5 platform means existing RAPID programs, safety configurations, and cell layouts remain valid. There is no need to re-validate robot paths, re-certify safety circuits, or retrain operators on a new controller interface.
• Extends Asset Life by 5–10 Years: IRC5 robot arms — the mechanical structure, gearboxes, and motors — routinely operate for 20–25 years with proper lubrication and maintenance. The controller electronics are the limiting factor. Replacing a failed SMB board removes that constraint and restores the full productive capacity of the mechanical asset.
• Documented Spare for Audit Purposes: Each unit ships with a condition report suitable for inclusion in maintenance management systems (CMMS) and asset registers.

FAQ

Q: What warranty applies to a discontinued part like the 3HAC14550-2?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers failure under normal operating conditions within the IRC5 system. It does not cover damage resulting from incorrect installation or pre-existing controller faults.

Q: How do I confirm the unit is genuine ABB and not a counterfeit?
A: All units are inspected for ABB part markings, PCB revision codes, and component sourcing consistent with genuine ABB manufacturing. We provide the physical board serial number and revision level with each shipment. Customers are encouraged to cross-reference against their existing installed unit before installation.

Q: Should I buy more than one unit as a long-term reserve?
A: For facilities running three or more IRC5 robots, holding one spare SMB unit per controller generation in your maintenance store is a standard risk mitigation practice. Secondary market availability of this part is finite and will decrease over time. Procurement now, at current pricing, is materially less expensive than emergency sourcing during an unplanned outage.

Q: Can this board be used with IRC5 Compact or Panel Mounted Controller variants?
A: Compatibility depends on the specific IRC5 variant and RobotWare version in your installation. Contact DriveKNMS with your controller serial number and RobotWare version before ordering to confirm fitment.
