ABB LEX11 Series: Comprehensive Module Range and Technical Overview

The ABB LEX11 series represents a core hardware platform within ABB's industrial automation and drive control architecture, deployed extensively across heavy-process industries including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and offshore oil and gas platforms. The LEX11 board family functions as the primary interface and logic execution layer within ABB's drive and excitation control cabinets, providing deterministic real-time processing for high-availability applications where unplanned downtime carries significant operational and safety consequences. Installed base figures for the LEX11 series span multiple decades of continuous service, making spare parts availability a critical procurement concern for plant maintenance engineers worldwide.

The Evolution of LEX11 Architecture

The LEX11 board series was introduced as part of ABB's modular excitation and drive control platform, designed to replace earlier discrete-logic control boards with a standardized, firmware-upgradeable hardware layer. Early revisions of the LEX11 used through-hole component technology with EPROM-based firmware storage, requiring physical chip replacement for software updates. Subsequent hardware revisions (R1, R1A, R1B, R1C, R1D) introduced surface-mount components, flash-programmable memory, and enhanced EMC shielding to meet evolving IEC 61800 and EN 55011 compliance requirements.

The R1D revision — as found in the LEX11 R1D ANR27900277 — represents a mature, stabilized hardware iteration with improved thermal management and extended component sourcing commitments from ABB. Compatibility between LEX11 revisions is firmware-dependent; substituting an R1B for an R1D in the same cabinet requires verification of the control software version loaded in the parent drive or excitation controller. Cross-revision interoperability is documented in ABB service bulletins and must be confirmed before field replacement.

As ABB has progressively migrated its drive and excitation product lines toward the ACS880, ACS580, and UNITROL 1020/1010 platforms, the LEX11 series has entered a mature/end-of-active-production phase. ABB continues to provide repair and limited spare parts support through its service network, but new production runs are not guaranteed. Third-party MRO suppliers and certified repair facilities have become the primary sourcing channel for LEX11 boards in active plant service.

LEX11 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced part numbers within the ABB LEX11 board family. Each entry reflects a distinct hardware revision or assembly variant used across ABB excitation and drive control systems:

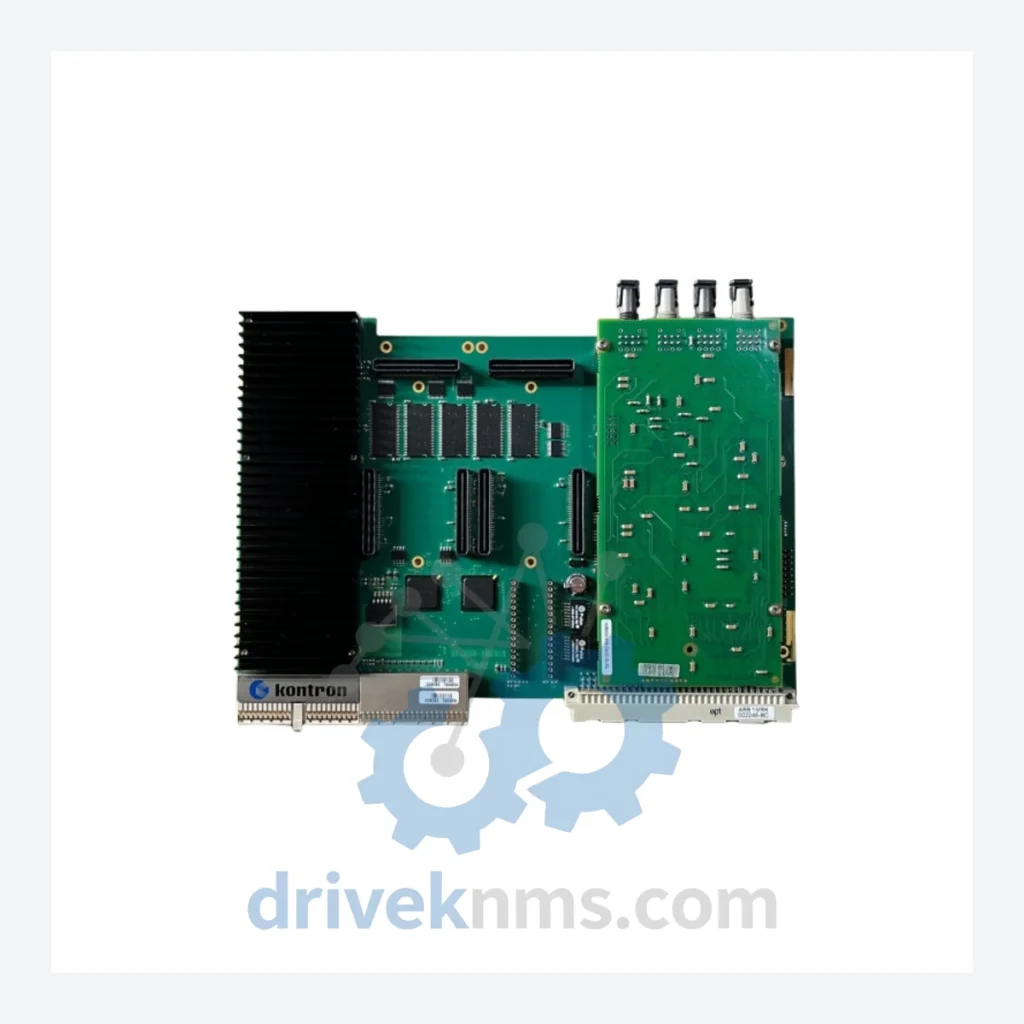

LEX11 R1D ANR27900277: Main control board, R1D revision, excitation controller interface layer
LEX11 R1C ANR27900277: Main control board, R1C revision, predecessor to R1D with equivalent pinout
LEX11 R1B ANR27900277: Main control board, R1B revision, earlier EMC compliance standard
LEX11 R1A ANR27900277: Main control board, R1A revision, through-hole dominant assembly
LEX11 R1 ANR27900277: Original production revision, EPROM firmware, legacy installations
LEX11 R2D ANR27900278: Secondary logic board variant, extended I/O mapping configuration
LEX11 R2C ANR27900278: Secondary logic board, R2C revision, compatible with UNITROL 5000 series
LEX11 R3A ANR27900280: Auxiliary interface board, analog signal conditioning, 4–20 mA inputs
LEX11 R3B ANR27900280: Auxiliary interface board, R3B revision, improved ADC resolution
LEX11 R4A ANR27900282: Communication adapter board, PROFIBUS-DP interface module
LEX11 R4B ANR27900282: Communication adapter board, R4B revision, extended baud rate support
LEX11 R5A ANR27900285: Power supply regulation board, 24 VDC internal bus, overcurrent protection
LEX11 R5B ANR27900285: Power supply regulation board, R5B revision, enhanced ripple suppression
LEX11 R6A ANR27900290: Digital I/O expansion board, 16 DI / 8 DO, optocoupler isolated
LEX11 R6B ANR27900290: Digital I/O expansion board, R6B revision, increased sink current rating
LEX11 R7A ANR27900295: Pulse encoder interface board, HTL/TTL dual-mode input
LEX11 R8A ANR27900300: Fieldbus gateway board, Modbus RTU / TCP dual-stack firmware

Sourcing Hard-to-Find & Obsolete LEX11 Parts

DriveKNMS maintains a dedicated inventory program for ABB LEX11 series boards, with particular focus on revisions that have exited ABB's active spare parts catalog. Our sourcing methodology combines direct OEM surplus acquisition, certified third-party repair and refurbishment, and cross-reference matching against superseded part numbers published in ABB's internal service documentation.

Quality Control for the LEX11 Range

ABB LEX11 boards incorporate multi-layer PCB construction with impedance-controlled signal traces, making standard continuity testing insufficient for functional verification. DriveKNMS applies a dedicated test protocol for LEX11 boards that includes: powered functional simulation using ABB-compatible drive emulation fixtures, backplane bus communication verification (CAN or proprietary ABB serial bus depending on revision), analog I/O calibration check against factory tolerance bands (±0.5% full scale), firmware version readback and checksum validation, thermal cycling soak (–10°C to +70°C, 4-hour cycle) for refurbished units, and high-potential isolation testing at 500 VDC between signal and power domains. Each board shipped by DriveKNMS is accompanied by a test report referencing the specific serial number and revision code, providing full traceability for plant quality management systems.
