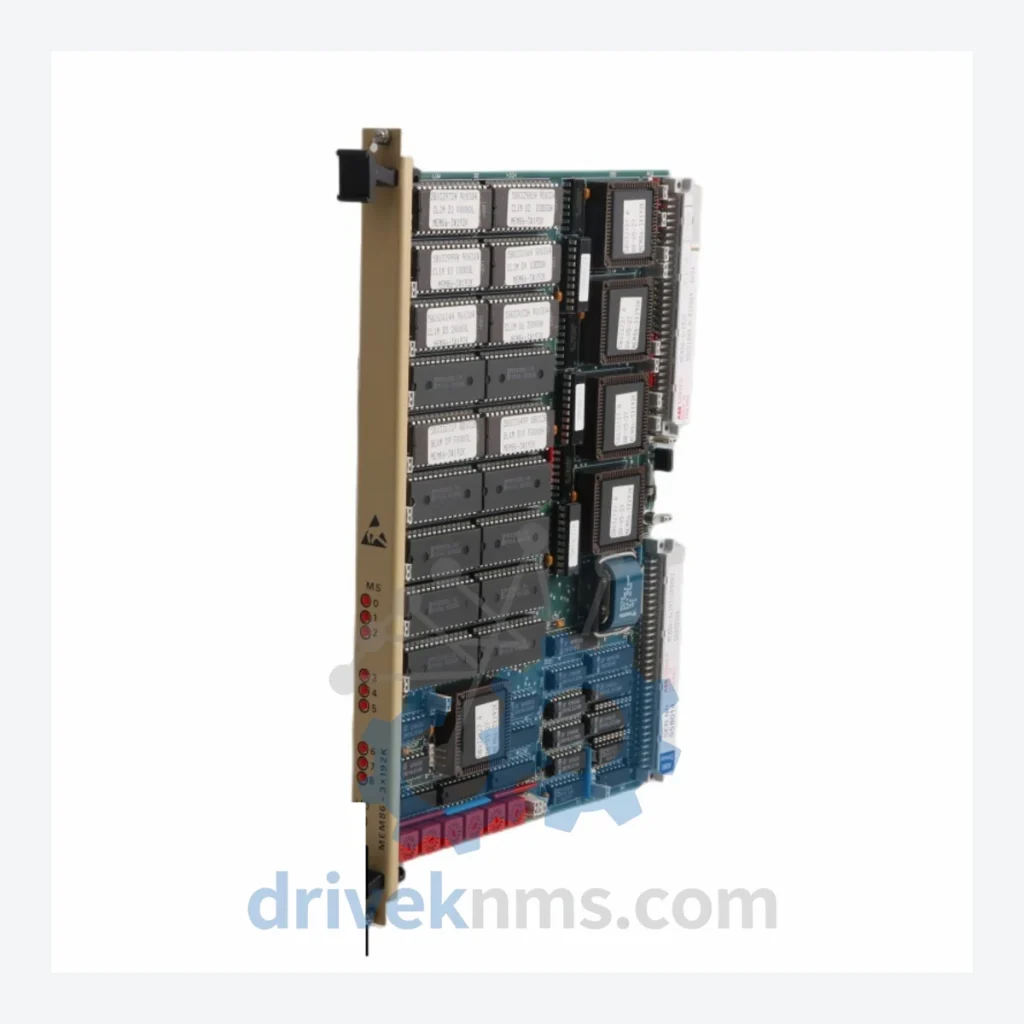

ABB MEM86-3*192 CMBMR3 Memory Board – Obsolete MasterPiece 200 / Advant OCS Spare Part

When a memory board fails inside an ABB MasterPiece 200 or Advant OCS distributed control system, the consequences extend far beyond a single module. These platforms were engineered as tightly integrated architectures: the memory board is not a peripheral—it is the backbone of process data retention and program execution. A confirmed failure of the MEM86-3*192 CMBMR3 does not present a simple swap-and-continue scenario for most facilities. It presents a decision point: source the exact replacement, or face a forced migration to a modern DCS platform that carries engineering costs, re-commissioning expenses, operator retraining, and production downtime that routinely exceed several million USD in capital-intensive industries such as oil refining, chemical processing, and power generation.

DriveKNMS maintains verified inventory of the ABB MEM86-3*192 CMBMR3. This is not a catalog listing with a lead time measured in months. This is physical, inspected stock—available now.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB MasterPiece 200 and Advant OCS families represent a generation of DCS infrastructure that was installed across thousands of process facilities during the 1980s and 1990s. Many of these systems remain in active production service today—not because operators are unaware of their age, but because the cost and risk of replacement outweigh the cost of maintenance, provided that spare parts remain accessible.

The MEM86-3*192 CMBMR3 memory board occupies a critical position within this architecture. It handles program storage and data retention functions that are tightly coupled to the system's proprietary communication and I/O structure. There is no generic substitute. A facility that loses this board without a replacement on hand faces one of two outcomes: extended unplanned downtime while sourcing a replacement through the secondary market, or an emergency decision to begin a DCS migration under the worst possible conditions—reactive, unbudgeted, and under production pressure.

Facilities that have extended the operational life of their MasterPiece 200 systems by 5 to 10 years beyond the original end-of-life date have done so through a disciplined approach to critical spare inventory. The MEM86-3*192 CMBMR3 belongs on that list. Its failure mode is not gradual—memory board degradation in legacy systems often presents as intermittent faults before complete failure, and by the time the fault is confirmed, the window for an orderly sourcing process has already closed.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all obsolete boards before they are offered for sale. This process is designed specifically for the failure modes common to legacy industrial hardware that has been in storage or removed from service.

Step 1 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mechanism in boards of this era. Each electrolytic capacitor is visually inspected for bulging, leakage, and ESR deviation. Boards with compromised capacitors are either reconditioned by qualified technicians or removed from inventory.

Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known-compatible versions for the MasterPiece 200 / Advant OCS platform. Mismatched firmware is a common source of integration failures when sourcing from unverified suppliers.

Step 3 – Pin and Connector Inspection: All edge connectors and backplane pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned using appropriate methods; boards with structural pin damage are rejected.

Step 4 – Board-Level Functional Test: Where test fixtures are available, boards undergo powered functional verification. Test results are documented and available upon request.

Step 5 – Packaging and ESD Protection: Boards are packaged in anti-static materials with desiccant to prevent moisture ingress during transit and storage.

Key Features for System Maintenance

The MEM86-3*192 CMBMR3 is a direct, drop-in replacement for the original module position within the MasterPiece 200 / Advant OCS rack. No hardware modification is required. No reprogramming of the host system is necessary. The replacement procedure follows the standard ABB module swap protocol documented in the system maintenance manual.

This matters operationally. An emergency replacement carried out by maintenance personnel—without the need for a controls engineer or a vendor service call—reduces mean time to recovery significantly. It also eliminates the engineering labor cost that would otherwise accompany a non-standard repair or a partial system reconfiguration. For facilities operating on tight maintenance windows, the difference between a four-hour recovery and a four-day recovery is often determined by whether the correct spare was on the shelf.

Sourcing a verified MEM86-3*192 CMBMR3 now, before a failure event, is the lowest-cost insurance available for this class of equipment. The secondary market for obsolete ABB memory boards is not deep. Availability windows are unpredictable, and pricing under emergency conditions reflects that scarcity.

Extending Automation Asset Life: A Maintenance Strategy for Legacy DCS Operators

For plant managers and reliability engineers operating ABB MasterPiece 200 or Advant OCS systems, the question is not whether these platforms will eventually require replacement—it is whether that replacement happens on a planned schedule or under emergency conditions. The difference in total cost between these two scenarios is substantial.

A structured critical spare program for legacy DCS hardware typically delivers a 5 to 10 year extension of viable system life at a fraction of the cost of a full migration. The core elements of such a program are straightforward: identify the modules with no modern equivalent and no secondary-market depth, establish minimum stock levels for each, and source from suppliers who can verify condition rather than simply ship from unknown storage.

The MEM86-3*192 CMBMR3 meets all three criteria for inclusion in a critical spare program. It is obsolete, it has no direct modern equivalent, and its failure has a disproportionate impact on system availability. Facilities that have implemented this approach report that the cost of maintaining a two-unit spare inventory for boards of this type is recovered within the first avoided downtime event.

DriveKNMS specializes in sourcing and verifying obsolete industrial control hardware for exactly this purpose. Our inventory is not speculative—it is maintained for customers who understand the cost of being unprepared.

FAQ

What warranty applies to this obsolete part?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the obsolete status of this component, we recommend customers treat this as a working spare and maintain a backup unit where operationally feasible.

How do I confirm the board is new or quality-refurbished?
Each unit is inspected under our 5-step QA protocol prior to shipment. Condition grade (new surplus, tested refurbished, or pull-tested) is disclosed at the time of quotation. We do not ship untested or uninspected units.

Should I stock more than one unit?
For systems where the MasterPiece 200 / Advant OCS platform is expected to remain in service for more than 24 months, holding a minimum of two units is advisable. Secondary market availability for this specific board is not guaranteed, and sourcing timelines under emergency conditions can extend to 4–8 weeks or longer.

Can this board be used across different MasterPiece 200 rack configurations?
Compatibility depends on the specific rack and firmware configuration of your system. Confirm your system's hardware revision against ABB documentation before installation. DriveKNMS technical staff can assist with compatibility questions prior to purchase.
