ABB H&B Contronic MM Series: Comprehensive Module Range and Technical Overview

The H&B Contronic MM series, developed under the Hartmann & Braun (H&B) brand — subsequently integrated into ABB's process automation portfolio — represents a foundational distributed control system (DCS) platform deployed extensively across global heavy industry. Installations span petrochemical complexes, nuclear power generation facilities, crude oil refineries, pulp and paper mills, and large-scale chemical processing plants. The Contronic MM architecture was engineered for high-availability continuous process control, with a modular backplane design that allows individual function modules to be replaced without full system shutdown. Its installed base remains substantial in facilities operating legacy DCS infrastructure, making spare parts availability a critical operational concern for plant maintenance engineers worldwide.

The Evolution of Contronic MM Architecture

The Contronic MM series emerged in the late 1970s and early 1980s as H&B's response to the growing demand for modular, rack-based process control in continuous manufacturing environments. The original architecture relied on a proprietary parallel backplane bus for inter-module communication, with analog signal conditioning performed at the module level. Early variants used discrete component logic; later revisions incorporated CMOS-based microprocessors for improved noise immunity and self-diagnostics.

Following ABB's acquisition of Hartmann & Braun in 1996, the Contronic MM series was maintained as a supported legacy platform while ABB transitioned new projects toward the Contronic P and subsequently the Symphony Plus (800xA) architecture. This transition created a long-tail installed base: thousands of Contronic MM systems remain in service at facilities where full DCS migration is economically or operationally impractical. Compatibility between early MM modules and later revisions is generally maintained at the backplane level, though firmware and calibration differences require verification during module substitution. Cross-compatibility with Contronic E and Contronic P subsystems is limited and must be confirmed against site-specific engineering documentation.

Contronic MM Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the H&B Contronic MM series. Modules are classified by primary function:

Controllers & Processors

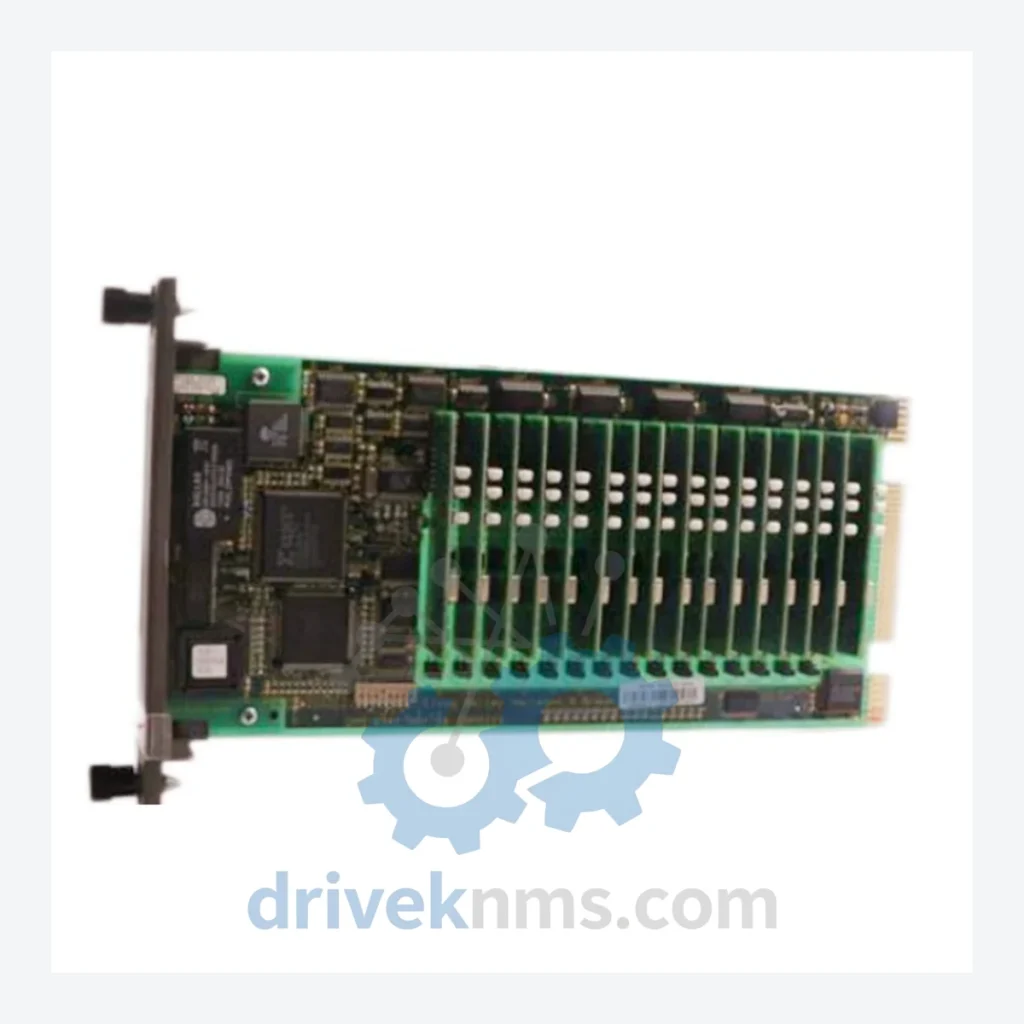

• MM21: Central controller module, MM 21 architecture, primary process loop management
• MM22: Redundant controller module, hot-standby configuration support
• MM11: Basic single-loop controller, analog PID regulation
• MM12: Dual-loop controller module, independent channel isolation
• MM31: Advanced sequence controller, batch process logic execution

Analog Input (AI) Modules

• MM41: 8-channel analog input, 4–20 mA, with signal conditioning
• MM42: 16-channel analog input, multiplexed, thermocouple/RTD compatible
• MM43: High-accuracy analog input, 12-bit resolution, isolated channels
• MM44: Analog input module with HART protocol pass-through support

Analog Output (AO) Modules

• MM51: 4-channel analog output, 4–20 mA, loop-powered
• MM52: 8-channel analog output, voltage/current selectable per channel

Digital Input (DI) / Digital Output (DO) Modules

• MM61: 16-channel digital input, 24 VDC, optically isolated
• MM62: 32-channel digital input, high-density rack format
• MM71: 16-channel digital output, relay contact, 2A per channel
• MM72: 16-channel digital output, transistor sink, 24 VDC

Communication & Bus Adapters

• MM81: PROFIBUS-DP communication adapter, master/slave configurable
• MM82: Modbus RTU/TCP gateway module, serial and Ethernet interface
• MM83: Contronic internal bus coupler, inter-rack data exchange

Power Supply Modules

• MM91: 24 VDC rack power supply, 10A output, redundancy-capable
• MM92: Redundant power supply module, automatic failover, status relay output

Sourcing Hard-to-Find & Obsolete Contronic MM Parts

ABB formally discontinued active production of Contronic MM series modules following the consolidation of its DCS portfolio around the Symphony Plus platform. However, the operational lifespan of installed Contronic MM systems routinely extends 20–30 years beyond initial commissioning, creating sustained demand for replacement modules that are no longer available through standard OEM channels.

Quality Control for the Contronic MM Range

Contronic MM modules present specific testing challenges due to their proprietary backplane bus architecture and analog signal path complexity. DriveKNMS applies a structured verification protocol to all MM series units prior to dispatch:

• Backplane bus integrity test: Each module is seated in a reference Contronic MM rack and subjected to full bus communication cycling to verify address decoding and data transfer integrity.
• Analog channel calibration verification: AI and AO modules are tested across the full 4–20 mA range using calibrated signal sources and loads, with linearity and offset error recorded against OEM specification limits.
• Digital I/O functional test: All DI/DO channels are individually exercised under rated voltage and current conditions. Relay contact modules are tested for actuation force and contact resistance.
• Power supply load test: MM9x power modules are tested under full rated load for thermal stability and output voltage regulation.
• Visual and component inspection: PCB inspection for corrosion, capacitor condition, connector pin integrity, and conformal coating status.
• Firmware revision logging: Where readable, firmware version is recorded to support compatibility verification at the customer site.

Test records are retained and available upon request for traceability purposes.
