ABB NBIO Series: Comprehensive Module Range and Technical Overview

The ABB NBIO series represents a core I/O board family within ABB's industrial automation and drive control architecture. These modules are widely deployed across global heavy industries including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and large-scale water treatment facilities. The NBIO series interfaces directly with ABB's AC drive platforms — most notably the ACS800 and ACS600 drive families — providing standardized digital and analog I/O expansion, fieldbus communication bridging, and real-time process signal conditioning. Their ruggedized PCB construction and DIN-rail compatible form factor make them a preferred choice for OEM panel builders and end-user maintenance teams operating in harsh electrical environments.

The Evolution of NBIO Architecture

The NBIO board family was introduced as part of ABB's modular drive I/O expansion strategy in the mid-1990s, designed to complement the RDCO, RINT, and RMIO control board ecosystems. Early NBIO variants focused on basic digital I/O interfacing for ACS600-series drives. As the ACS800 platform matured through the 2000s, the NBIO series was extended to support higher-density I/O configurations, improved EMC shielding, and compatibility with DDCS (Distributed Drive Control System) fiber-optic communication links.

By the 2010s, the NBIO series entered a mature/stable lifecycle phase. ABB continued to support these boards as long-term spare parts for installed base maintenance rather than introducing new hardware revisions. Customers operating legacy ACS600 and ACS800 installations — many with 15–25 year operational lifespans — rely on NBIO boards as critical replacement components. DriveKNMS maintains dedicated inventory of both current and obsolete NBIO variants to support this installed base globally.

NBIO Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, real-world NBIO series part numbers sourced from ABB technical documentation and field service records. Each module is categorized by primary function:

I/O Interface & Expansion Boards

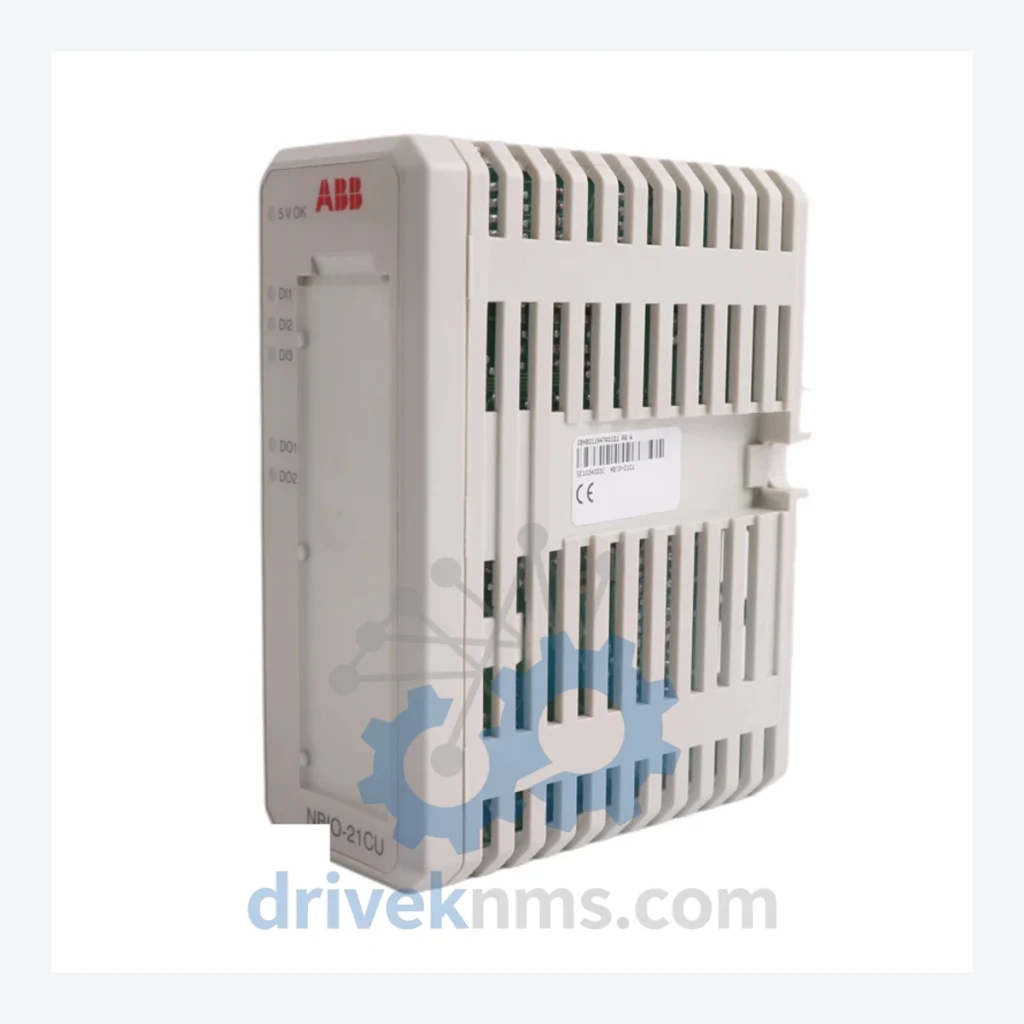

• NBIO-21CU: Standard I/O board for ACS800 drive control unit; digital/analog signal interface
• NBIO-01: Basic I/O expansion board; 6 DI, 3 DO, 2 AI, 1 AO channels
• NBIO-11: Extended I/O board with enhanced analog input resolution for process control
• NBIO-12: I/O board variant with relay output configuration for contactor control
• NBIO-21: Standard I/O board for ACS800 series; predecessor to NBIO-21CU revision
• NBIO-31: High-density I/O board; supports expanded DI/DO count for complex automation sequences
• NBIO-41: Analog-optimized I/O board; precision signal conditioning for sensor inputs

Communication & Fieldbus Adapter Boards

• NINT-41: DDCS interface board; fiber-optic link for multi-drive communication
• NINT-51: DDCS communication board; master/follower drive topology support
• NAMC-11: Application and motor control board; integrated with NBIO I/O layer
• NAMC-51: Advanced motor control board; supports DTC (Direct Torque Control) algorithms

Power Supply & Auxiliary Boards

• NPOW-41: Internal power supply board; 24VDC auxiliary rail for NBIO and control boards
• NPOW-51: Enhanced power board; dual-rail output for redundant I/O supply configurations
• NREG-01: Regulation board; voltage reference and signal conditioning for NBIO analog channels
• NREG-11: Advanced regulation board; improved thermal management for high-ambient installations
• NREG-21: Regulation board revision; compatible with ACS800-37 and ACS800-67 drive variants

Sourcing Hard-to-Find & Obsolete NBIO Series Parts

Many NBIO series boards — particularly early NBIO-01, NBIO-11, and NBIO-21 variants — have been discontinued by ABB and are no longer available through standard distribution channels. However, the installed base of ACS600 and ACS800 drives running these boards remains substantial worldwide, creating persistent demand for replacement units.

DriveKNMS operates a dedicated obsolete and hard-to-find parts procurement program for the NBIO series. Our sourcing process includes:

• Global surplus inventory acquisition from decommissioned plant equipment
• Cross-referencing ABB revision history to identify compatible substitute part numbers
• Direct procurement from verified ABB authorized service partners in Europe and Asia-Pacific
• Consignment stock agreements with industrial MRO distributors holding legacy ABB inventory

Customers requiring long-term maintenance agreements for NBIO-equipped drive systems are encouraged to contact DriveKNMS to discuss scheduled spare parts provisioning and lifecycle extension support contracts.

Quality Control for the NBIO Range

NBIO series boards present specific testing challenges due to their multi-layer PCB construction, DDCS fiber-optic interface circuitry, and sensitivity to ESD during handling. DriveKNMS applies the following QC protocol to all NBIO units processed through our facility:

• Visual Inspection: Component-level examination for capacitor bulge, trace corrosion, connector pin damage, and conformal coating integrity
• ESD-Safe Handling: All boards processed in certified ESD-controlled workstations per IEC 61340-5-1
• Functional Bench Test: Each NBIO board is installed in a compatible ACS800 test rig and subjected to full I/O channel verification — all digital inputs, digital outputs, analog inputs, and analog outputs are individually stimulated and measured
• DDCS Communication Test: Fiber-optic link integrity verified using ABB DriveWindow or equivalent diagnostic software
• Thermal Cycling: Boards are subjected to operational temperature cycling (0°C to +55°C) to identify latent solder joint failures
• Final Documentation: Each unit ships with a test report, revision label verification, and traceability record
