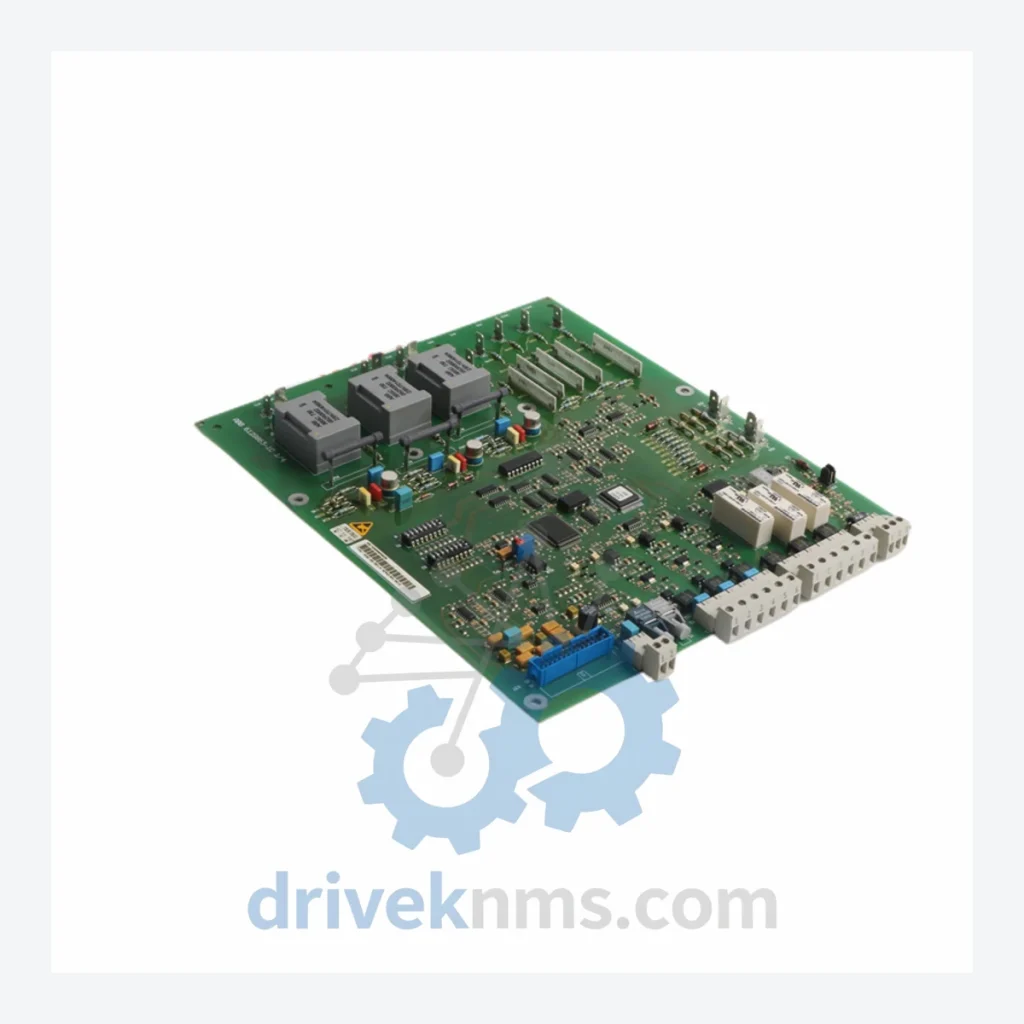

ABB NDSC Series Modules: NDSC-02 3ADT220090R0039

Technical Dossier

Product Details And Specifications

ABB NDSC Series: Comprehensive Module Range and Technical Overview

The ABB NDSC series represents a core family of control and interface boards deployed within ABB's DCS800 DC drive platform and associated AC drive architectures. These modules are installed across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, steel rolling lines, and offshore marine propulsion. The NDSC series provides the primary control intelligence, I/O expansion, and fieldbus communication backbone for multi-drive systems requiring deterministic real-time performance. Installed base spans several hundred thousand units globally, with active deployments dating from the mid-1990s through current production lines. The combination of long service life and high replacement cost of host equipment makes NDSC spare parts a critical procurement category for plant maintenance engineers worldwide.

The Evolution of NDSC Architecture

The NDSC series was introduced as part of ABB's modular drive control philosophy, designed to separate the power conversion stage from the control and communication layers. Early revisions (NDSC-01, NDSC-02) provided foundational closed-loop speed and torque regulation for DCS800 DC drives, using a proprietary DDCS (Distributed Drive Control System) fiber-optic ring for inter-module communication. This architecture allowed deterministic cycle times below 1 ms for current control loops, a requirement in precision rolling mill and winder applications.

Subsequent generations introduced enhanced diagnostics, expanded parameter memory, and compatibility with PROFIBUS-DP, CANopen, and Modbus RTU via plug-in adapter boards (NINT series). The NDCU sub-family extended the architecture to AC drives (ACS800, ACS600), sharing the same DDCS backbone and enabling mixed DC/AC drive systems under a unified control topology. The NDBU series added distributed I/O branching capability, allowing a single master controller to address up to 12 drive units on a single fiber ring. As of 2026, the NDSC-01 and early NDSC-02 hardware revisions are classified as obsolete by ABB, with no active production. Replacement pathways include the SDCS-CON-4 and SDCS-CON-F for DCS800 platforms. Long-term maintenance support for installed NDSC-based systems is the primary driver of aftermarket demand.

NDSC Full Catalog & Functionalities (SKU List)

Control & CPU Modules

• NDSC-01 (3ADT220090R0001): First-generation DCS800 main control board; closed-loop DC motor speed and torque regulation.
• NDSC-02 (3ADT220090R0039): Second-generation main control board; enhanced parameter storage, improved EMC filtering, direct replacement for NDSC-01 in most applications.
• NDSC-03 (3ADT220090R0051): Third-generation variant; extended temperature range, revised firmware architecture for DCS800 R7 and above.
• NDCU-51C: AC800M-compatible control unit for ACS800 multi-drive; supports DDCS master/follower topology.
• NDCU-52C: Enhanced NDCU-51C with expanded application program memory; used in winder and crane applications.
• NDCU-53C: High-performance CPU module for ACS800; supports dual encoder feedback and advanced motion control.
• NDCU-33C: Compact control unit for ACS600 single-drive; DDCS channel 0 master capability.

I/O Expansion Modules

• NDIO-01: Standard digital/analog I/O extension board; 8 DI, 4 DO, 2 AI, 2 AO; mounts directly on NDSC/NDCU backplane.
• NDIO-02: Extended I/O module; 16 DI, 8 DO; used in multi-motor coordination applications.
• NDIO-03: High-speed digital I/O board; 1 ms input scan time; suited for position-critical applications.

Communication & Fieldbus Adapters

• NINT-41C: PROFIBUS-DP adapter for NDCU/NDSC; supports DP-V1 acyclic services; max 12 Mbps.
• NINT-42C: DeviceNet adapter; 500 kbps; explicit and implicit messaging.
• NINT-43C: CANopen adapter; DS402 drive profile; used in coordinated multi-axis systems.
• NINT-62C: Modbus RTU/TCP adapter; dual-port; supports gateway mode for legacy SCADA integration.
• NINT-63C: EtherNet/IP adapter; 100 Mbps; CIP motion profile support.

Distributed I/O Branching & Power

• NDBU-85C: DDCS branching unit; connects up to 8 drive units on a single fiber ring; used in multi-drive cabinet systems.
• NDBU-95C: Extended branching unit; supports up to 12 nodes; includes diagnostic LED array for ring integrity monitoring.

Sourcing Hard-to-Find & Obsolete NDSC Parts

DriveKNMS maintains a dedicated inventory of NDSC-series boards sourced from decommissioned plant equipment, authorized surplus channels, and controlled factory stock. For obsolete variants including NDSC-01 (3ADT220090R0001) and early NDSC-02 hardware revisions, DriveKNMS provides lifecycle extension support including board-level inspection, firmware version verification, and functional burn-in testing prior to shipment. All units are cross-referenced against ABB's published hardware revision tables to confirm compatibility with the target DCS800 or ACS800 firmware version. Customers operating legacy systems beyond ABB's standard support window can request long-term supply agreements covering multi-year procurement schedules. DriveKNMS also supports cross-reference sourcing for discontinued NDCU and NINT variants, providing equivalent or upgraded replacement options where direct substitution is not available.

Quality Control for the NDSC Range

NDSC-series boards incorporate a multi-layer backplane with high-density DDCS fiber-optic transceivers and precision analog signal conditioning circuits. DriveKNMS applies a dedicated test protocol for this family: each board undergoes visual inspection for capacitor condition, solder joint integrity, and connector pin alignment. Functional testing is performed using ABB-compatible drive test rigs that simulate live DDCS ring communication, verifying that the board correctly executes speed reference processing, current limit functions, and fault code generation. Analog I/O channels are calibrated against traceable reference standards. EEPROM parameter memory is verified for read/write integrity. Boards that pass all test stages are issued a test report and shipped with ESD-protective packaging. Units with repairable faults (failed optocouplers, degraded capacitors) are reconditioned and re-tested before being offered as refurbished stock at clearly indicated pricing.
