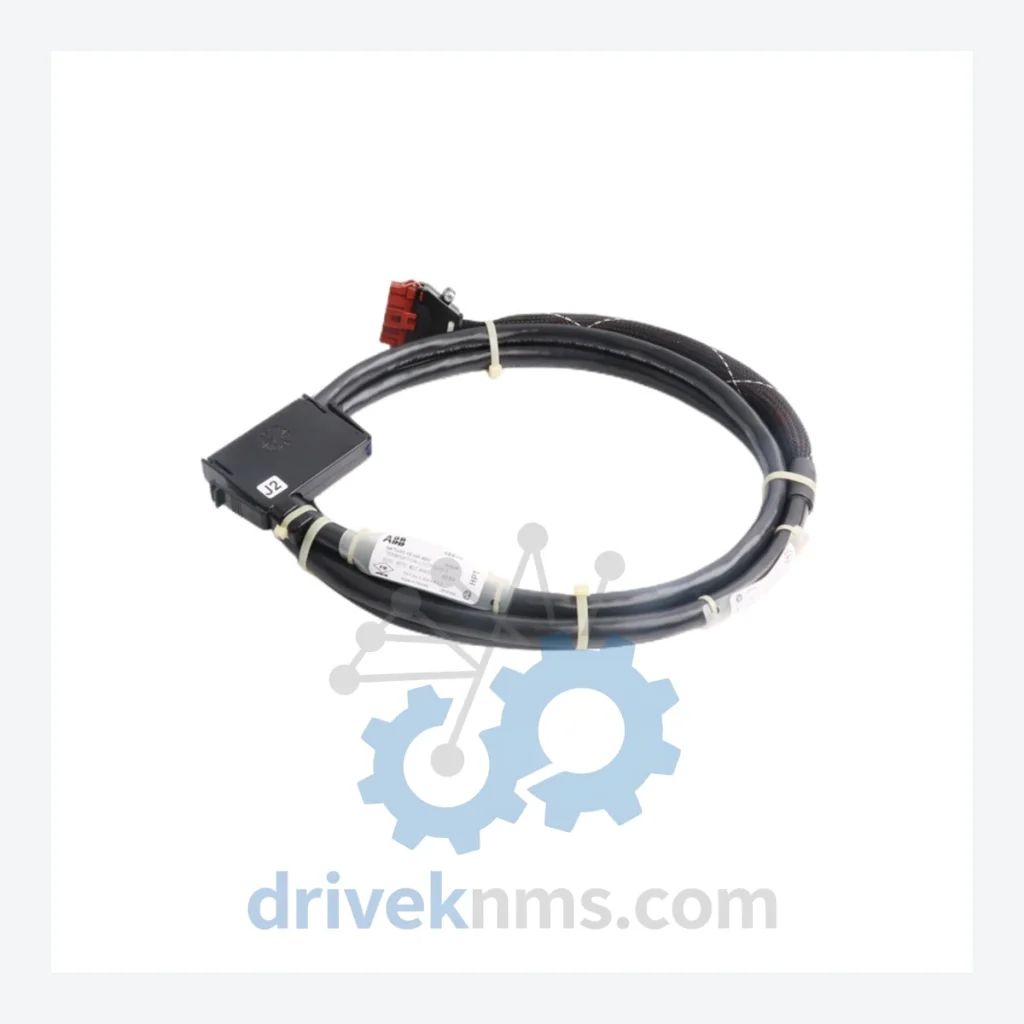

ABB NKTU01-10 Termination Unit Cable – Obsolete Advant OCS Spare Part

When an ABB NKTU01-10 cable fails inside a MasterPiece 200 or Advant OCS control architecture, the clock starts immediately. This is not a component you source from a distributor's live catalog — ABB discontinued the NKTU01-10 along with the broader Advant OCS product line. The replacement path, if forced, means migrating an entire I/O subsystem: new termination units, new module racks, new field wiring, and — most critically — a full re-engineering of the control logic. Conservative estimates for that scope of work run into hundreds of thousands of dollars per production line, before accounting for downtime losses.

DriveKNMS holds verified physical stock of the NKTU01-10. For plant managers and maintenance engineers operating facilities built on Advant OCS infrastructure, this is a direct, low-cost alternative to a forced system retirement.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB Advant OCS platform — including the MasterPiece 200 controller family — was deployed extensively in process industries throughout the 1990s and 2000s: pulp and paper mills, chemical plants, power generation facilities, and offshore platforms. Many of these installations remain operational today, not because replacement has been evaluated and rejected, but because the cost and risk of migration are prohibitive.

The NKTU01-10 sits at a critical junction in this architecture. It is the physical link between the I/O module backplane and the field termination unit where field wiring connects. A single failed cable of this type can take an entire I/O group offline. In a process control environment, that translates directly to lost production, emergency maintenance callouts, and — in worst cases — unsafe process states requiring manual intervention.

There is no generic substitute. The connector pinout, cable length, and shielding specification are matched to the Advant OCS mechanical design. Attempting to fabricate a replacement in the field introduces signal integrity risk that is unacceptable in safety-instrumented environments. The only reliable solution is an original ABB NKTU01-10 or a verified equivalent from a specialist supplier with documented sourcing.

Facilities that have extended their Advant OCS systems by 5 to 10 years beyond the original end-of-life date have done so through a consistent strategy: identify every cable and connector in the I/O subsystem that has no modern equivalent, establish a minimum stock level for each, and treat that stock as a capital asset — not a consumable. The cost of holding three to five NKTU01-10 cables in a spare parts cabinet is measured in hundreds of dollars. The cost of not having one when it fails is measured in production days.

Condition & Reliability Assurance

All NKTU01-10 units supplied by DriveKNMS pass a structured 5-step inspection protocol before dispatch:

1. Visual and mechanical inspection: Connector housings, locking tabs, and cable jacket examined for physical damage, deformation, or UV degradation.
2. Pin and contact inspection: Each connector pin checked for corrosion, oxidation, and mechanical deformation. Corroded contacts are a primary failure mode in cables stored in industrial environments.
3. Continuity and isolation testing: Full point-to-point continuity verification across all conductors. Isolation resistance tested between signal conductors and shield.
4. Shield integrity check: Drain wire and foil shield continuity confirmed. Compromised shielding in an Advant OCS I/O environment introduces noise susceptibility that can cause intermittent I/O faults — a failure mode that is difficult to diagnose and often misattributed to module failure.
5. Documentation and traceability: Each unit is logged with inspection date and condition grade prior to shipment.

Key Features for System Maintenance

• Drop-in replacement: The NKTU01-10 connects directly to existing Advant OCS I/O modules and termination units with no modification to field wiring or module configuration.
• No firmware or software changes required: Cable replacement does not affect controller configuration, I/O addressing, or application logic. Maintenance can be completed during a planned shutdown window without engineering involvement.
• Avoids engineering rework costs: Substituting a like-for-like cable eliminates the need for I/O remapping, loop testing, and control system validation that would accompany any hardware migration.
• Preserves existing safety certifications: In facilities where the control system is part of a safety case or functional safety assessment, replacing a cable with an identical part avoids triggering a re-validation cycle.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty covering defects identified under normal operating conditions. Given the obsolete status of this part, we recommend purchasing a minimum of two units to maintain a local spare.

How do I confirm the unit is genuine and not a counterfeit?
All units are sourced through documented supply channels. Physical markings, connector geometry, and cable construction are verified against known-good reference units. We do not supply unmarked or rebranded substitutes.

Should I stock additional NKTU01-10 cables as long-term spares?
Yes. Given that this part is no longer manufactured, global supply is finite and declining. If your facility operates more than one Advant OCS I/O cabinet, holding a minimum of two to three cables per installation is a defensible maintenance strategy. The cost of a planned spare purchase is a fraction of the cost of an unplanned production stoppage.

Can you supply other Advant OCS cables and connectors?
Contact us with your full bill of materials. DriveKNMS specializes in obsolete ABB Advant OCS, MasterPiece 200, and related legacy automation components.
