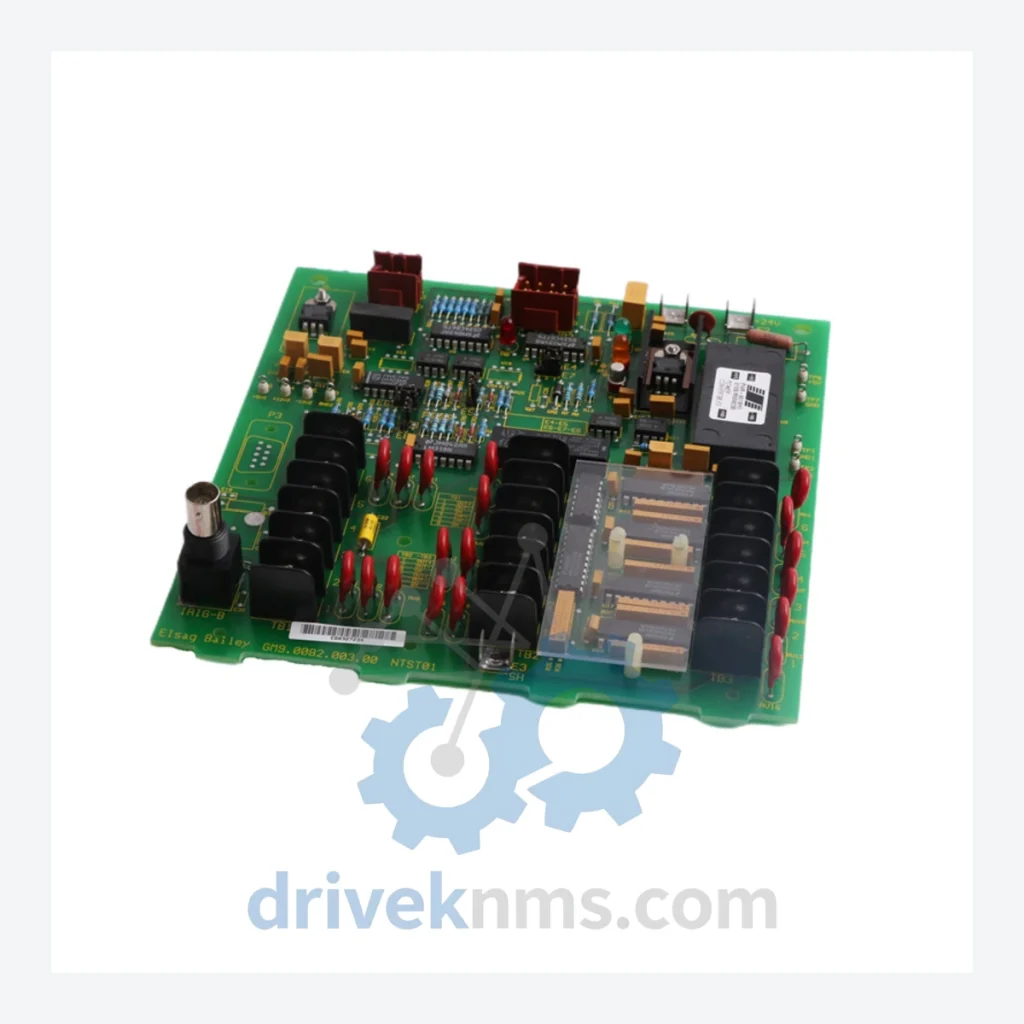

ABB NTST Series Modules

Technical Dossier

Product Details And Specifications

ABB NTST Series: Comprehensive Module Range and Technical Overview

The ABB NTST series is a family of time synchronization and termination units developed for ABB's Advant OCS and AC400/AC800 distributed control system platforms. These modules are deployed across critical infrastructure sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. The NTST series provides precision time distribution and bus termination functions essential for maintaining deterministic communication across multi-node DCS backplane architectures. Their role in plant-wide clock synchronization makes them non-negotiable components in safety-instrumented and high-availability control loops.

The Evolution of NTST Architecture

The NTST series was introduced as part of ABB's Advant Controller 400 series ecosystem in the early 1990s, designed to address the growing need for synchronized time references across distributed I/O nodes. Early implementations relied on proprietary ABB Masterbus 300 communication protocols, with termination units serving as passive endpoints to prevent signal reflection on the bus. As ABB transitioned to the AC800M platform and later Symphony+ architecture, the NTST modules were retained for backward compatibility in brownfield installations. The series bridges legacy Advant OCS hardware with modern PROFIBUS and Ethernet-based supervisory layers. In mixed-generation plants, NTST units frequently coexist with newer CI854 and CI857 communication interface modules, requiring careful impedance matching and bus topology planning. The series is now in a mature-to-end-of-life phase; ABB no longer actively manufactures most NTST variants, making third-party spare parts sourcing the primary procurement channel for maintenance teams.

NTST Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified NTST series module range. Each unit is classified by its primary function within the DCS architecture:

NTST01: Time synchronization termination unit for Masterbus 300 bus end-node signal termination.
NTST02: Dual-channel termination unit with integrated bus impedance matching for extended Masterbus segments.
NTST03: Active termination module with onboard diagnostics for bus continuity monitoring.
NTST04: Time sync distribution unit supporting IRIG-B input for GPS-referenced plant clock alignment.
NTST05: Passive termination resistor assembly for short-segment Masterbus 300 topologies.
NTST06: Enhanced termination unit with LED fault indication for field-level troubleshooting.
NTST07: High-isolation termination module rated for hazardous area adjacent cabinet installations.
NTST08: Redundant bus termination unit for hot-standby Masterbus configurations.
NTST09: Time distribution repeater with signal regeneration for long-distance bus runs exceeding 200m.
NTST10: Compact termination unit for space-constrained S100 I/O subrack installations.
NTST11: Multi-drop termination adapter for star-topology Masterbus 300 segment extensions.
NTST12: Termination unit with galvanic isolation barrier for cross-potential-zone bus connections.
NTST13: Clock synchronization master unit for AC400 controller node time reference distribution.
NTST14: Bus termination and surge protection module for outdoor or exposed cable entry points.
NTST15: Universal termination unit compatible with both Masterbus 300 and RCOM serial bus variants.

Sourcing Hard-to-Find & Obsolete NTST Series Parts

DriveKNMS maintains a dedicated inventory of discontinued and hard-to-source ABB NTST series modules. As ABB has formally discontinued active production of most NTST variants, plant operators running legacy Advant OCS or early AC800 installations face extended lead times through OEM channels — often 16 to 52 weeks — or outright unavailability. DriveKNMS sources NTST units through certified secondary market channels, decommissioned plant buybacks, and authorized distributor excess stock. All units are catalogued by revision level and firmware compatibility to ensure drop-in replacement without requiring system reconfiguration. For facilities operating under long-term service agreements or operating beyond original design life, DriveKNMS provides multi-unit buffer stock programs to eliminate single-point-of-failure risk on critical bus termination nodes.

Quality Control for the NTST Range

NTST series modules undergo a structured inspection and functional verification protocol prior to dispatch. Given the passive and semi-active nature of termination units, standard visual inspection is supplemented by impedance measurement at the bus connector pins to verify termination resistance within ABB-specified tolerances (typically 120Ω ±5% for Masterbus 300 endpoints). For active NTST variants with onboard time distribution circuitry, functional testing includes IRIG-B signal injection and output verification using calibrated time interval analyzers. Backplane connector integrity is assessed under magnification for pin deformation, oxidation, or mechanical stress fractures common in modules removed from high-vibration environments. Each unit is tested in a live Masterbus 300 segment simulator to confirm bus-level communication stability before packaging. Test records are retained and available upon request for quality-audited procurement processes.
