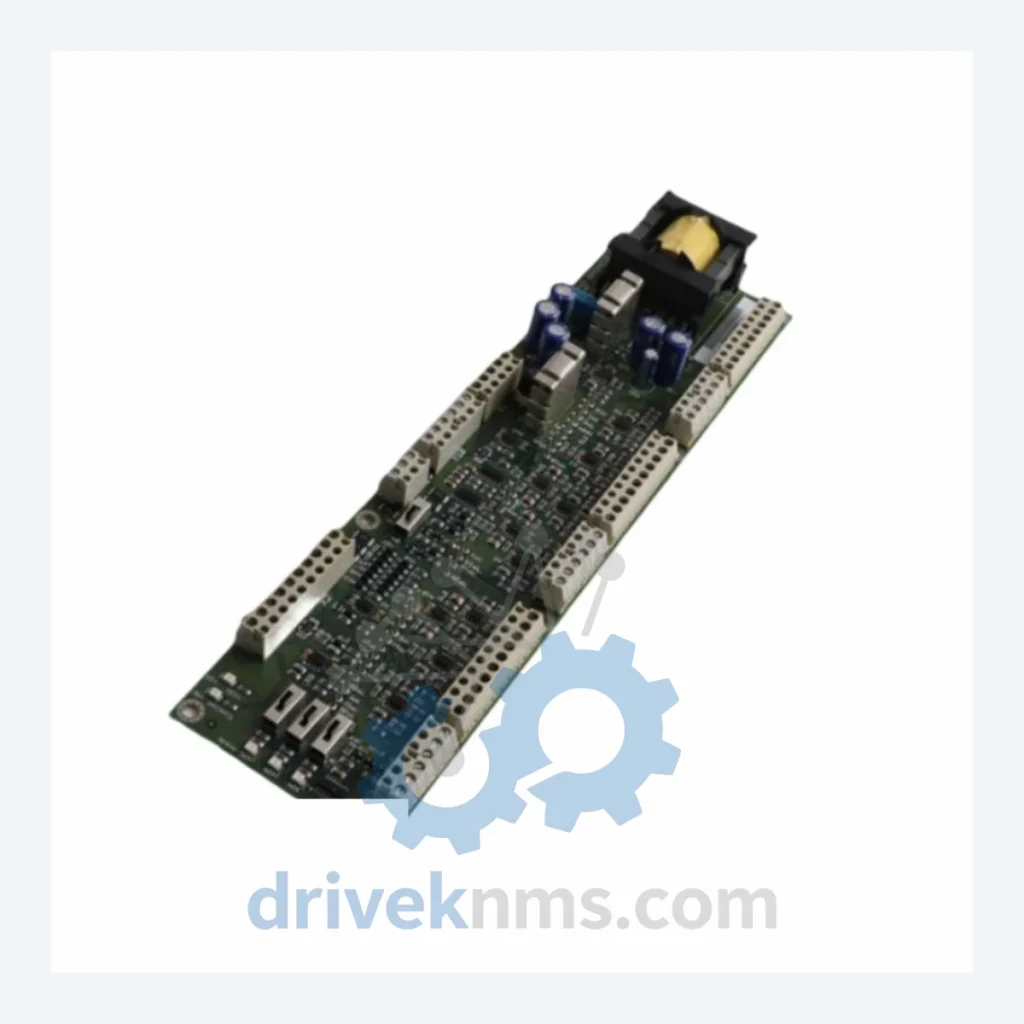

ABB PCD232A 3BHE022293R0101 Diode Supply Module – Obsolete DSCB-02 Spare Part

When the diode supply module in a legacy ABB drive system fails, the consequences extend far beyond a single component. The DSCB-02 platform — and the broader ABB AC drive infrastructure it supports — represents capital investment measured in hundreds of thousands to millions of dollars per production line. A single unplanned outage caused by this module's failure can trigger a forced system-wide upgrade: new drives, new control cabinets, new commissioning cycles, and weeks of engineering downtime. DriveKNMS holds verified physical stock of the ABB PCD232A (3BHE022293R0101), a component that has become increasingly difficult to source through standard distribution channels. Securing one unit now is not a maintenance decision — it is an asset protection decision.

Technical Specifications

Note: Electrical parameters such as input voltage range, current rating, and switching frequency are not published here to prevent inaccurate specification. Please contact us with your system nameplate data for compatibility confirmation.

Solving the Discontinued Hardware Crisis

The ABB DSCB-02 diode supply architecture was deployed extensively in medium-voltage AC drive systems throughout the 1990s and 2000s. These systems remain operational in cement plants, paper mills, water treatment facilities, and heavy process industries worldwide — not because operators are unaware of their age, but because the cost and complexity of replacing them is prohibitive.

ABB's end-of-life declaration for the PCD232A means that OEM replacement stock is exhausted. When this module fails, plant engineers face a binary choice: locate a genuine replacement from the secondary market, or initiate a full drive system retrofit. The retrofit path typically involves six to eighteen months of engineering, procurement, and commissioning work, with total project costs frequently exceeding USD 500,000 per drive train.

The PCD232A performs the rectification function within the DSCB-02 power stack. It is not a peripheral component — it is load-bearing infrastructure. Its failure mode is typically abrupt rather than gradual, which means there is rarely a warning window. Facilities that have not pre-positioned a spare unit face immediate production loss the moment failure occurs.

Extending the operational life of an ABB DSCB-02 system by five to ten years through strategic spare parts positioning is a documented and defensible maintenance strategy. The capital cost of one PCD232A spare is a fraction of one day's lost production in most process industries. For plant managers facing board-level pressure to defer capital expenditure, this approach provides a credible, low-cost alternative to premature system retirement.

Condition & Reliability Assurance

All PCD232A units supplied by DriveKNMS pass a structured five-stage inspection protocol before dispatch:

• Stage 1 – Visual and Mechanical Inspection: Full examination of housing integrity, connector condition, and PCB surface for corrosion, burn marks, or physical damage.
• Stage 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in power electronics stored beyond ten years. Each unit is evaluated for capacitor bulge, leakage, and ESR deviation from specification.
• Stage 3 – Pin and Connector Integrity: All interface pins are inspected under magnification for oxidation, micro-fractures, and contact resistance anomalies. Corroded contacts are disqualifying.
• Stage 4 – Firmware and Label Verification: Where applicable, firmware revision markings are cross-referenced against known DSCB-02 compatibility matrices to confirm the unit is not a mismatched revision.
• Stage 5 – Functional Bench Test: Units are powered and tested under controlled conditions prior to packaging.

Units that do not pass all five stages are not offered for sale. Condition grade (New Surplus, Refurbished, or Tested Used) is disclosed on the invoice and packing documentation.

Key Features for System Maintenance

• Drop-in replacement: The PCD232A installs directly into the DSCB-02 slot without mechanical modification.
• No reprogramming required: The module does not carry drive-specific configuration data. Replacement does not require drive parameter re-entry or PLC reconfiguration.
• No engineering redesign: Unlike a system retrofit, installing a like-for-like spare eliminates the need for new engineering drawings, updated safety documentation, or requalification of the drive system.
• Immediate operational restoration: A pre-positioned spare reduces mean time to repair (MTTR) from weeks to hours.
• Deferred capital expenditure: Each additional year of DSCB-02 operation defers a multi-hundred-thousand-dollar capital project, improving plant-level ROI on existing assets.

FAQ

What warranty applies to an obsolete part like the PCD232A?
DriveKNMS provides a 12-month warranty on all units graded as New Surplus or Refurbished. Tested Used units carry a 90-day warranty. Warranty terms are confirmed in writing prior to order.

How do I confirm the unit is genuine ABB and not a counterfeit?
All units are sourced from decommissioned ABB-installed systems or verified surplus channels. ABB part markings, date codes, and serial number formats are cross-checked during intake inspection. Documentation is available upon request.

Should I buy more than one unit?
For any facility operating more than one DSCB-02 drive, holding a minimum of two PCD232A spares is standard practice. Given that this part is no longer manufactured, secondary market availability will continue to decline. Procurement decisions delayed by twelve months frequently result in no available stock at any price.

Can you supply other DSCB-02 series components?
Yes. DriveKNMS maintains inventory across the broader ABB DSCB-02 and ACS/DCS legacy drive ecosystem. Contact us with your full BOM for a consolidated availability check.
