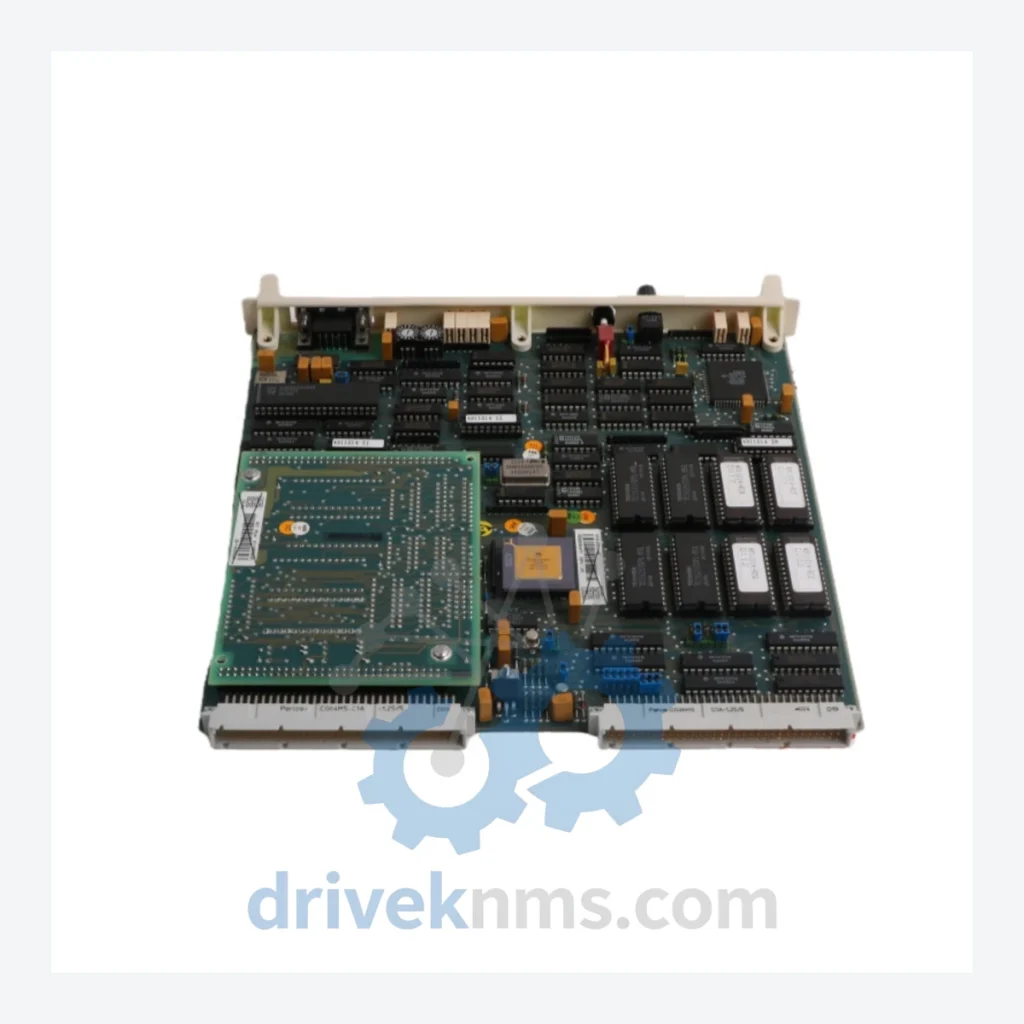

ABB PFSK Series Modules: PFSK 130 3BSE002616R1

Technical Dossier

Product Details And Specifications

ABB PFSK Series: Comprehensive Module Range and Technical Overview

The ABB PFSK series represents a core family of communication and interface modules deployed within the ABB Advant Controller 400 series (AC 400) and Master automation systems. These modules are installed across critical global heavy industries including petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing plants. The PFSK series handles fieldbus communication, inter-module data exchange, and supervisory link functions within the Advant OCS (Open Control System) architecture. Due to the long operational lifecycles typical of DCS infrastructure — often exceeding 20–30 years — PFSK modules remain in active service at facilities worldwide, making reliable spare parts sourcing a primary operational concern for maintenance engineers.

The Evolution of PFSK Series Architecture

The PFSK series was introduced as part of ABB's Advant Controller platform in the late 1980s and evolved through the 1990s alongside the AC 400 and AC 450 controller families. Early PFSK modules operated on the Advant Fieldbus 100 (AF 100) protocol, providing deterministic communication between process stations and operator workstations. As ABB transitioned toward the Industrial IT and then System 800xA platforms in the 2000s, the PFSK series entered a maintenance-only lifecycle phase. Compatibility between PFSK modules and their host backplanes (PFSK 107, PFSK 130, PFSK 160 etc.) is strictly version-dependent; substituting modules across sub-series without firmware verification risks communication faults. Engineers migrating from Advant OCS to System 800xA must account for PFSK-to-CI module mapping when planning migration paths. The series is now fully discontinued by ABB, with no new production runs; all procurement is sourced from certified aftermarket and surplus inventory channels.

PFSK Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly encountered modules within the ABB PFSK series. Each entry reflects a distinct hardware function within the Advant Controller architecture.

PFSK 107 3BSE002616R1: AF 100 fieldbus communication interface module, single channel.
PFSK 130 3BSE002616R1: Advant Fieldbus 100 communication link module; primary supervisory bus interface for AC 450 stations.
PFSK 131 3BSE002616R1: Extended AF 100 link module with enhanced diagnostic register support.
PFSK 132 3BSE002616R1: Redundant fieldbus communication module for high-availability process stations.
PFSK 140 3BSE002616R1: Optical fiber AF 100 interface module for electrically noisy environments.
PFSK 150 3BSE002616R1: Advant Fieldbus 100 station interface, used in distributed I/O expansion racks.
PFSK 151 3BSE002616R1: Dual-port AF 100 station interface for ring topology configurations.
PFSK 160 3BSE002616R1: Master fieldbus communication module; supports up to 32 nodes on a single AF 100 segment.
PFSK 161 3BSE002616R1: Extended master fieldbus module with integrated diagnostics and event logging.
PFSK 162 3BSE002616R1: Redundant master fieldbus module for fault-tolerant bus master configurations.
PFSK 170 3BSE002616R1: Advant OCS inter-station communication module; handles station-to-station data transfer.
PFSK 171 3BSE002616R1: High-speed inter-station link module; supports time-critical process data exchange.
PFSK 180 3BSE002616R1: Supervisory network interface module; connects AC 450 stations to MasterNet.
PFSK 181 3BSE002616R1: Extended MasterNet interface with dual-port redundancy support.
PFSK 190 3BSE002616R1: Gateway communication module; bridges AF 100 fieldbus to PROFIBUS DP networks.
PFSK 191 3BSE002616R1: PROFIBUS DP master module for integration of third-party field devices.
PFSK 200 3BSE002616R1: Modbus RTU communication interface module for legacy device integration.

Sourcing Hard-to-Find & Obsolete PFSK Series Parts

ABB formally discontinued the PFSK series as part of the broader Advant OCS end-of-life program. Standard ABB distribution channels no longer carry new stock. DriveKNMS maintains a dedicated inventory of tested PFSK modules sourced from decommissioned plant equipment, certified surplus distributors, and controlled factory overstock. For facilities operating AC 400 or AC 450 systems beyond their original design life, DriveKNMS provides lifecycle extension support including: module-level replacement supply, cross-reference verification against current System 800xA CI module equivalents, and batch procurement for planned maintenance shutdowns. Lead times for common PFSK variants are typically 3–10 business days from confirmed order. For obsolete or low-volume variants, DriveKNMS conducts targeted sourcing with a standard response time of 5–15 business days. All modules are supplied with full traceability documentation upon request.

Quality Control for the PFSK Series Range

PFSK modules incorporate complex backplane bus interfaces and AF 100 fieldbus transceivers that require protocol-level validation beyond standard power-on testing. DriveKNMS applies the following verification procedures to all PFSK units prior to dispatch: (1) Visual inspection for PCB damage, corrosion on edge connectors, and capacitor condition. (2) Powered functional test using an Advant-compatible test rack to verify module initialization and self-diagnostic pass status. (3) AF 100 communication test: module is placed on a live AF 100 segment and verified for correct node address assignment, data frame transmission, and error-free operation over a minimum 30-minute burn-in period. (4) Firmware version logging: firmware revision is recorded and provided to the customer to confirm compatibility with the target controller version. (5) Final inspection and ESD-safe packaging with humidity indicator card for long-distance shipment.
