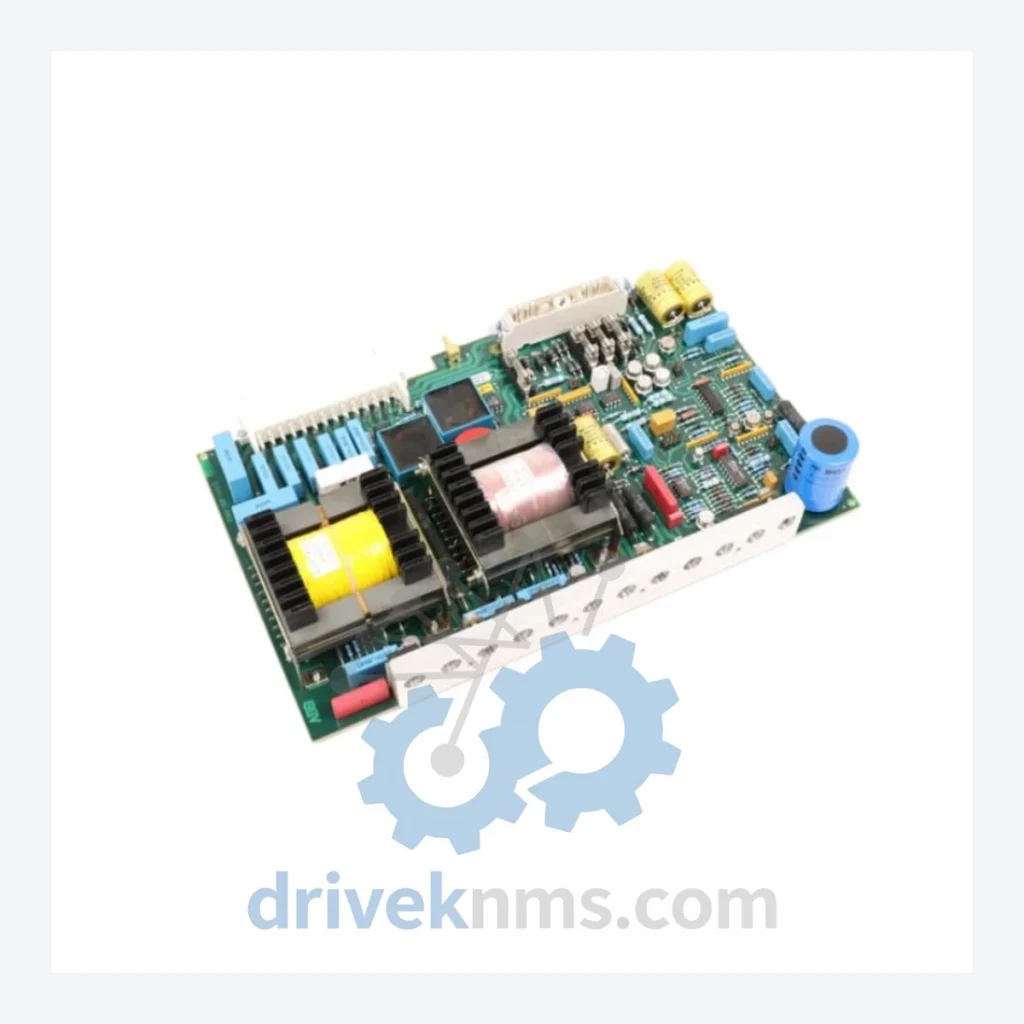

ABB PFSK102 YM322001-EG Modules

Technical Dossier

Product Details And Specifications

ABB PFSK Series: Comprehensive Module Range and Technical Overview

The ABB PFSK series constitutes a family of power supply, roll supply, and auxiliary interface modules engineered for deployment within ABB's Advant OCS and AC 800M distributed control system (DCS) platforms. These modules are installed across critical industrial infrastructure globally, including petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities. The PFSK range provides the foundational power conditioning and distribution layer that sustains continuous operation of Advant controller racks, I/O subsystems, and communication backplanes in environments where unplanned downtime carries significant operational and safety consequences.

ABB's Advant OCS architecture, introduced in the late 1980s and expanded through the 1990s, became one of the most widely deployed DCS platforms in heavy industry. The PFSK modules were integral to this architecture from its inception, and many installations remain in active service decades after initial commissioning. The longevity of these systems creates sustained demand for original spare parts, tested replacement units, and lifecycle extension support.

The Evolution of PFSK Architecture

The PFSK series was developed in parallel with ABB's Advant Controller 110 (AC 110), AC 160, and AC 410 platforms, later extending compatibility into the AC 800M generation. Early PFSK modules (PFSK101–PFSK109) were designed to interface with the S100 I/O bus and Advant Fieldbus 100 (AF 100) infrastructure. These units operated on 24 VDC or 48 VDC rail power and provided regulated outputs to controller CPUs, communication processors, and I/O module racks.

As ABB transitioned toward the AC 800M platform in the late 1990s and early 2000s, the PFSK series was extended with higher-density variants (PFSK110–PFSK164) to support expanded rack configurations and redundant power architectures. The PFSK120, PFSK130, and PFSK140 introduced modular redundancy switching, allowing hot-standby power changeover without process interruption — a requirement in nuclear and refinery applications where control system availability is mandated by regulatory frameworks.

The majority of PFSK modules are now classified as mature or end-of-life by ABB, with active production discontinued for most variants. However, installed base volumes ensure that aftermarket demand remains substantial. Compatibility between PFSK generations is constrained by backplane connector pinouts and firmware revision dependencies; substitution requires verification against the specific rack and controller revision in service.

PFSK Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the ABB PFSK series. Each entry includes a concise functional description for reference during procurement and maintenance planning.

PFSK101: 24 VDC roll supply unit for S100 I/O bus racks, single output.
PFSK102 (YM322001-EG): Roll supply unit providing regulated DC power to Advant OCS controller and I/O racks; dual-rail output configuration.
PFSK103: Auxiliary power supply module for AC 110 controller subrack, 48 VDC input.
PFSK104: Power distribution module for multi-rack Advant installations, with overcurrent protection per channel.
PFSK105: Redundant power supply interface module; supports 1+1 hot-standby configuration.
PFSK106: Low-voltage power supply unit for S100 communication processor modules.
PFSK107: Power conditioning module with EMC filtering for high-interference industrial environments.
PFSK108: DC/DC converter module for isolated 5 VDC logic supply within Advant controller racks.
PFSK109: Battery backup interface module for uninterruptible power supply integration.
PFSK110: Enhanced roll supply unit for AC 800M S800 I/O stations, 24 VDC nominal.
PFSK111: High-current power supply module for expanded I/O rack configurations.
PFSK112: Dual-output power supply for mixed-voltage rack assemblies in AC 800M systems.
PFSK120: Redundancy switching module for PFSK power supply pairs; automatic changeover on fault detection.
PFSK130: Power supply module with integrated diagnostics and PROFIBUS DP status reporting.
PFSK140: High-availability power unit for safety-instrumented system (SIS) rack integration.
PFSK150: Extended-temperature power supply module for outdoor and harsh-environment enclosures.
PFSK160: Power supply module for AC 800M PM865/PM866 processor rack, 120/230 VAC input.
PFSK164: Dual-redundant AC input power supply for critical AC 800M controller stations.

Sourcing Hard-to-Find & Obsolete PFSK Parts

DriveKNMS maintains a dedicated inventory program for ABB PFSK series modules, with particular focus on variants that ABB has discontinued from active production. For plant operators running Advant OCS or early AC 800M installations, the inability to source a failed PFSK power supply module can result in forced shutdown of an entire controller rack — an outcome with direct production and safety implications.

DriveKNMS sources PFSK modules through a combination of decommissioned plant equipment, authorized surplus channels, and long-term storage inventory. All units are catalogued by part number, hardware revision, and firmware version where applicable. For models such as PFSK101, PFSK103, PFSK106, and PFSK109 — which have been out of ABB production for over a decade — DriveKNMS provides the primary aftermarket supply channel for many operators in Asia, the Middle East, and Europe.

Quality Control for the PFSK Range

ABB PFSK modules incorporate multi-layer power conversion circuitry, backplane bus interfaces, and in some variants, active redundancy switching logic. Standard visual inspection and continuity testing are insufficient to verify functional integrity of these units. DriveKNMS applies a structured test protocol specific to the PFSK series:

Each module undergoes input voltage sweep testing across the specified operating range (typically 18–30 VDC for 24 V nominal units) to verify regulation performance and protection circuit activation thresholds. Output voltage accuracy is measured under no-load, half-load, and full-load conditions against ABB's published specifications. Backplane connector integrity is verified using impedance testing to detect oxidation or mechanical damage on the S100 or S800 bus interface pins. For redundancy modules (PFSK120, PFSK140), automatic changeover function is validated by simulating primary supply failure and confirming switchover time within specification. Thermal performance is assessed during extended load testing to identify capacitor degradation or thermal derating in aged units. All tested units are issued a DriveKNMS inspection record documenting test date, measured parameters, and pass/fail status.
