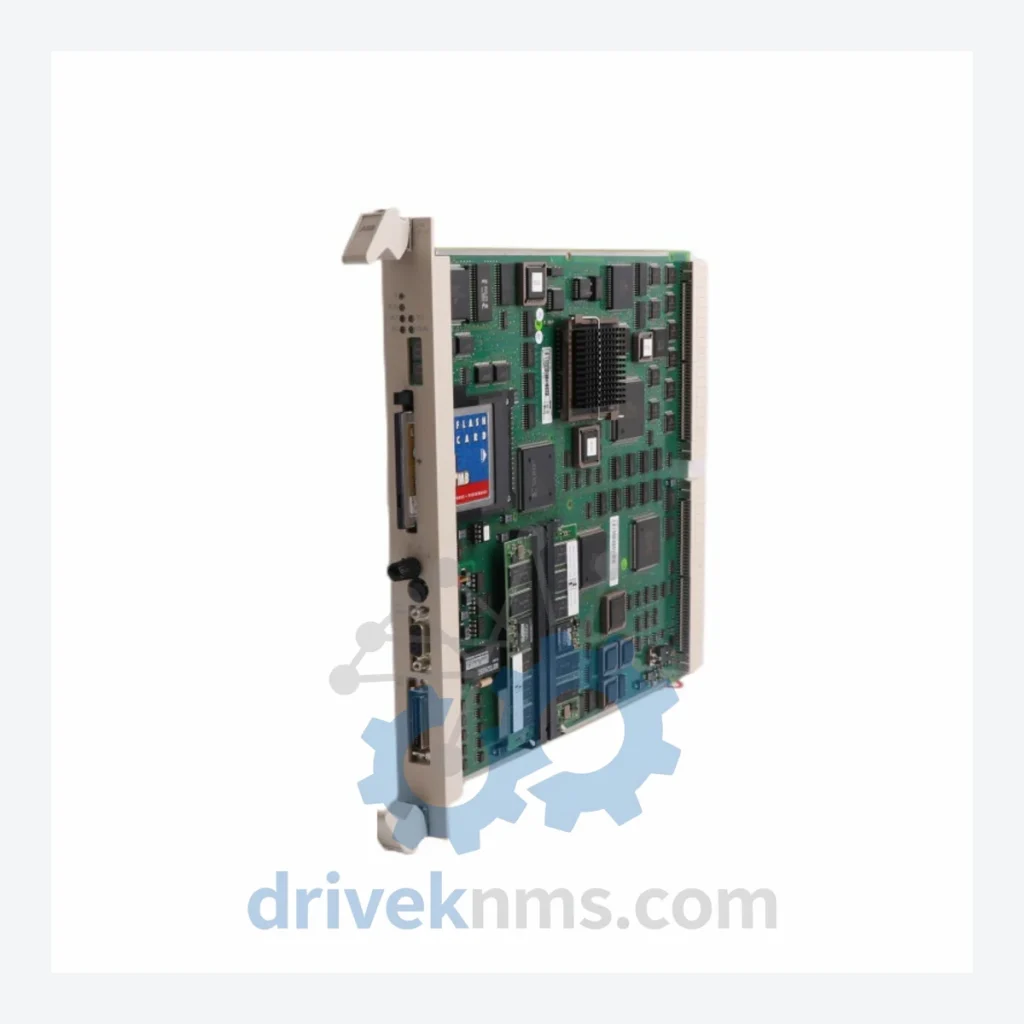

ABB PM511V16 Processor Module – AC500 PLC Critical Spare Part

Solving the Long Lead-Time Hardware Crisis

The PM511V16 is not a commodity component. It carries the application program, manages I/O communication across the AC500 rack, and handles real-time task scheduling. There is no field-expedient substitute. When this module fails, the system stops — and it stays stopped until a verified replacement is installed and the program is restored. For plant managers operating under production KPIs, that scenario is unacceptable.

How to Extend Your AC500 System Life by 5–10 Years

For facilities where a full PLC platform migration is not yet budgeted, a structured spare parts strategy is the most cost-effective path to continued operation. The following approach has been applied successfully across industrial sites managing aging AC500 installations:

1. Identify single-point-of-failure modules. The PM511V16 CPU is the highest-risk component in any AC500 rack. A failure here affects the entire system, not just one I/O channel. Prioritize this module above all others in your spare parts plan.

2. Maintain at least one cold spare per system. For critical lines, a second spare is justified. Storage requirements are minimal — a dry, temperature-stable environment is sufficient. The module does not degrade in storage if handled correctly.

3. Document your firmware version. When sourcing a replacement PM511V16, confirm that the firmware version on the spare is compatible with your existing application. DriveKNMS can advise on version compatibility before dispatch review.

4. Schedule periodic functional testing. A spare that has never been powered on should be bench-tested annually to confirm it initializes correctly. This takes less than 30 minutes and eliminates the risk of discovering a faulty spare during an emergency.

5. Negotiate a vendor-managed spare agreement. For multi-site operations, DriveKNMS can discuss reserved inventory arrangements that guarantee unit availability without requiring full upfront purchase.

This approach defers a full system migration by 5 to 10 years at a fraction of the capital cost, while maintaining production reliability and regulatory compliance.

Condition & Reliability Assurance

Every PM511V16 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

Step 1 – Visual and mechanical inspection: Enclosure integrity, connector pin condition, and PCB surface examination for corrosion, burn marks, or physical damage.

Step 2 – Electrolytic capacitor assessment: Aging capacitors are the most common failure mode in stored industrial electronics. Each unit is inspected for capacitor bulging, leakage, or ESR deviation.

Step 3 – Firmware version verification: The installed firmware version is documented and provided to the customer prior to shipment to confirm compatibility with the target system.

Step 4 – Pin and connector integrity check: All backplane connector pins are inspected for oxidation, bending, or contamination that could cause intermittent communication faults.

Step 5 – Power-on functional test: Where test infrastructure permits, the module is powered on and initialization is confirmed before packaging.

Key Features for System Maintenance

The PM511V16 is a direct drop-in replacement for any AC500 rack position currently occupied by the same part number. No hardware reconfiguration of the rack is required. The application program is stored externally on the SD memory card or uploaded from the engineering workstation via Automation Builder — the replacement module does not require factory reprogramming. This eliminates the need for ABB field engineering involvement in most swap scenarios, avoiding both the scheduling delay and the associated service cost.

For maintenance teams managing multiple AC500 systems, a single PM511V16 spare can serve as a rotating emergency unit across sites, provided firmware versions are aligned. This further reduces the per-site spare parts investment while maintaining system coverage.

Q: Are units new or refurbished?
A: DriveKNMS supplies both new (factory-sealed where available) and professionally refurbished units. Condition is clearly stated on each quotation. Refurbished units pass the full 5-step QA protocol described above.

Q: How do I confirm compatibility with my existing AC500 system?
A: Provide your current firmware version and AC500 configuration. DriveKNMS will confirm compatibility before invoicing.
