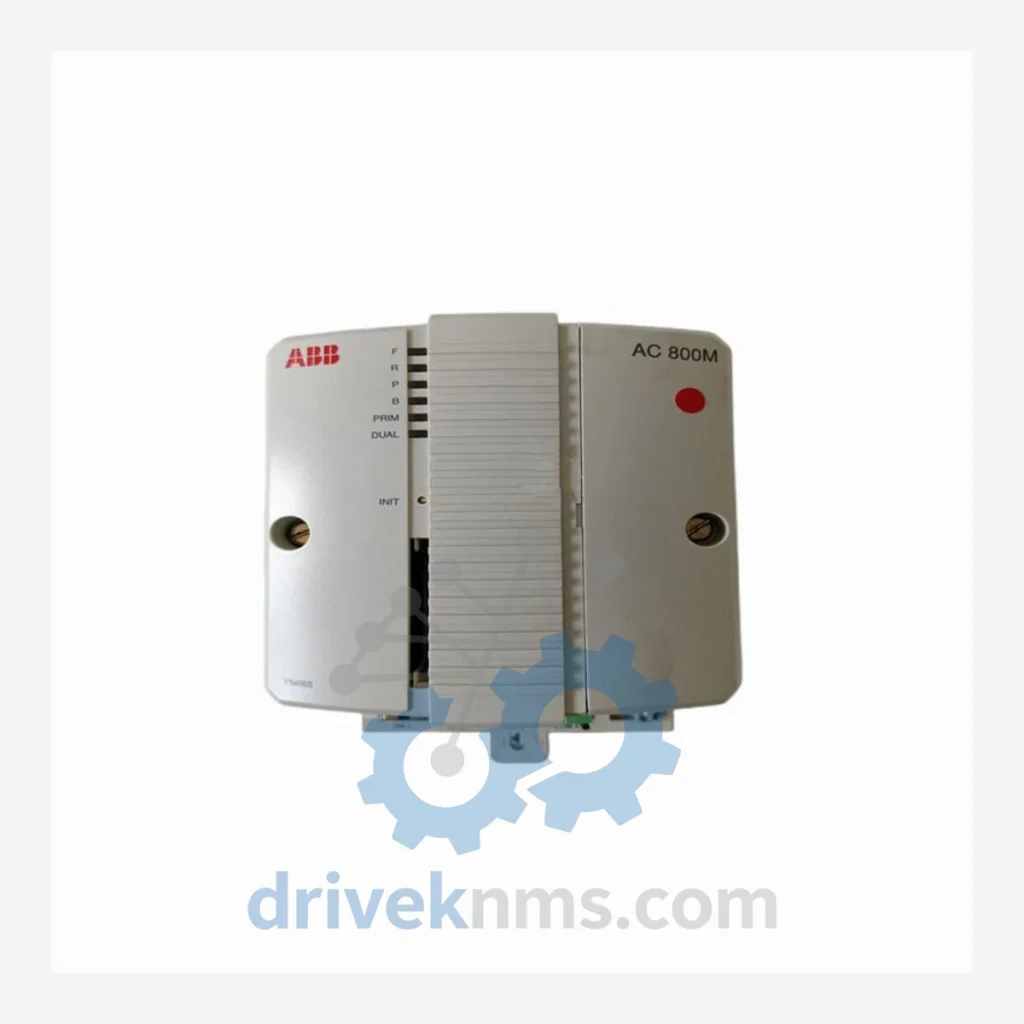

ABB PM865 Modules: PM865K01 3BSE031151R1

Technical Dossier

Product Details And Specifications

ABB PM865 Series: Comprehensive Module Range and Technical Overview

The ABB PM865 series is the primary processor module family for the ABB AC 800M distributed control system (DCS), one of the most widely deployed process automation platforms in global heavy industry. AC 800M controllers running PM865-series CPUs are installed across petrochemical complexes, offshore oil & gas platforms, nuclear power auxiliary systems, pulp and paper mills, and large-scale water treatment facilities. The PM865K01 (3BSE031151R1) represents the standard-performance variant of this controller family, offering dual Ethernet ports, redundancy support, and compatibility with the full S800 I/O range via ModuleBus. Its long production run and broad installed base make it one of the most frequently sourced spare processor modules in the DCS aftermarket.

The Evolution of PM865 Architecture

The AC 800M controller platform was introduced by ABB in the late 1990s as a successor to the Advant OCS and MOD 300 systems. The PM865 processor module entered production as a high-capacity replacement for the earlier PM864 series, offering increased RAM, faster cycle times, and native support for IEC 61131-3 programming environments via ABB's Control Builder M software suite.

Early PM865 variants (suffix K01) shipped with firmware supporting up to 64 MB application memory and dual 10/100 Ethernet interfaces. Subsequent hardware revisions introduced improved EMC shielding and extended operating temperature tolerance. The PM865 family is fully backward-compatible with PM864-era I/O configurations, allowing phased migration without rewiring. As of 2024, ABB has transitioned new project specifications toward the AC 800M High Integrity (PM891) and AC 800PEC platforms, placing the PM865 series in a mature/end-of-active-development lifecycle phase. Installed base support and spare parts availability remain critical for facilities operating multi-decade DCS lifecycles.

PM865 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB AC 800M / PM865 ecosystem. Each entry reflects a distinct hardware configuration or accessory role within the controller architecture.

PM865K01 3BSE031151R1: AC 800M standard processor, dual Ethernet, redundancy-capable CPU module.
PM865K02 3BSE031151R2: PM865 variant with extended firmware revision for enhanced diagnostics support.
PM864AK01 3BSE018161R1: Predecessor processor module; compatible I/O base, lower memory ceiling.
PM864AK02 3BSE018161R2: PM864A revision 2; extended application memory vs. K01 baseline.
PM891K01 3BSE053240R1: High-integrity SIL-certified processor; functional upgrade path from PM865.
CI854AK01 3BSE030220R1: PROFIBUS DP communication interface module for AC 800M backplane.
CI854BK01 3BSE025255R1: PROFIBUS DP/V1 interface, revision B; supports acyclic data exchange.
CI857K01 3BSE018144R1: FOUNDATION Fieldbus HSE communication interface module.
CI858K01 3BSE018135R1: DeviceNet communication interface for AC 800M controller rack.
CI860K01 3BSE032444R1: IEC 61850 Ethernet communication module for substation automation integration.
SM811K01 3BSE018172R1: Redundancy module enabling hot-standby CPU switchover for PM865 pairs.
SM812K01 3BSE018173R1: Extended redundancy module with diagnostics bus for dual-controller configurations.
TB807 3BSE008534R1: ModuleBus optical interface module; connects remote S800 I/O clusters to AC 800M.
TB820V2 3BSE013208R1: ModuleBus modem, version 2; supports up to 12 S800 I/O modules per cluster.
SD821 3BSC610036R1: 24 VDC power supply unit for AC 800M controller rack; 5 A rated output.
SD822 3BSC610037R1: 24 VDC redundant power supply; paired with SD821 for uninterrupted controller power.
AI810 3BSE008516R1: 8-channel analog input module, 4–20 mA / 0–10 V, S800 I/O series.
AO810V2 3BSE038415R1: 8-channel analog output module, version 2; HART-capable, S800 I/O series.
DI810 3BSE008508R1: 16-channel 24 VDC digital input module, S800 I/O series.
DO810 3BSE008510R1: 16-channel 24 VDC digital output module, 0.5 A per channel, S800 I/O series.

Sourcing Hard-to-Find & Obsolete PM865 Parts

DriveKNMS maintains a dedicated inventory program for ABB AC 800M components, with particular focus on PM865-series processor modules and associated communication interfaces that have transitioned to limited or discontinued production status. For facilities operating PM865-based DCS installations beyond the standard 20-year lifecycle, sourcing replacement CPUs and redundancy modules through the open market is the primary strategy for avoiding forced platform migration.

Quality Control for the PM865 Range

PM865-series processor modules present specific verification challenges due to their integrated backplane communication logic and dual-port Ethernet subsystems. DriveKNMS applies the following inspection protocol to all PM865 units prior to dispatch:

Visual inspection covers PCB surface condition, connector pin integrity on the 48-pin backplane interface, and front-panel LED indicator housing. Firmware version is read via Control Builder M diagnostic interface and recorded against the unit's hardware revision label. Ethernet port continuity is verified using loopback testing on both RJ-45 interfaces. ModuleBus communication is validated by inserting the module into a live AC 800M test rack and confirming controller-to-I/O cluster handshake at the TB820V2 interface. Units exhibiting backplane bus errors, firmware read failures, or Ethernet subsystem faults are quarantined and not offered for resale.
