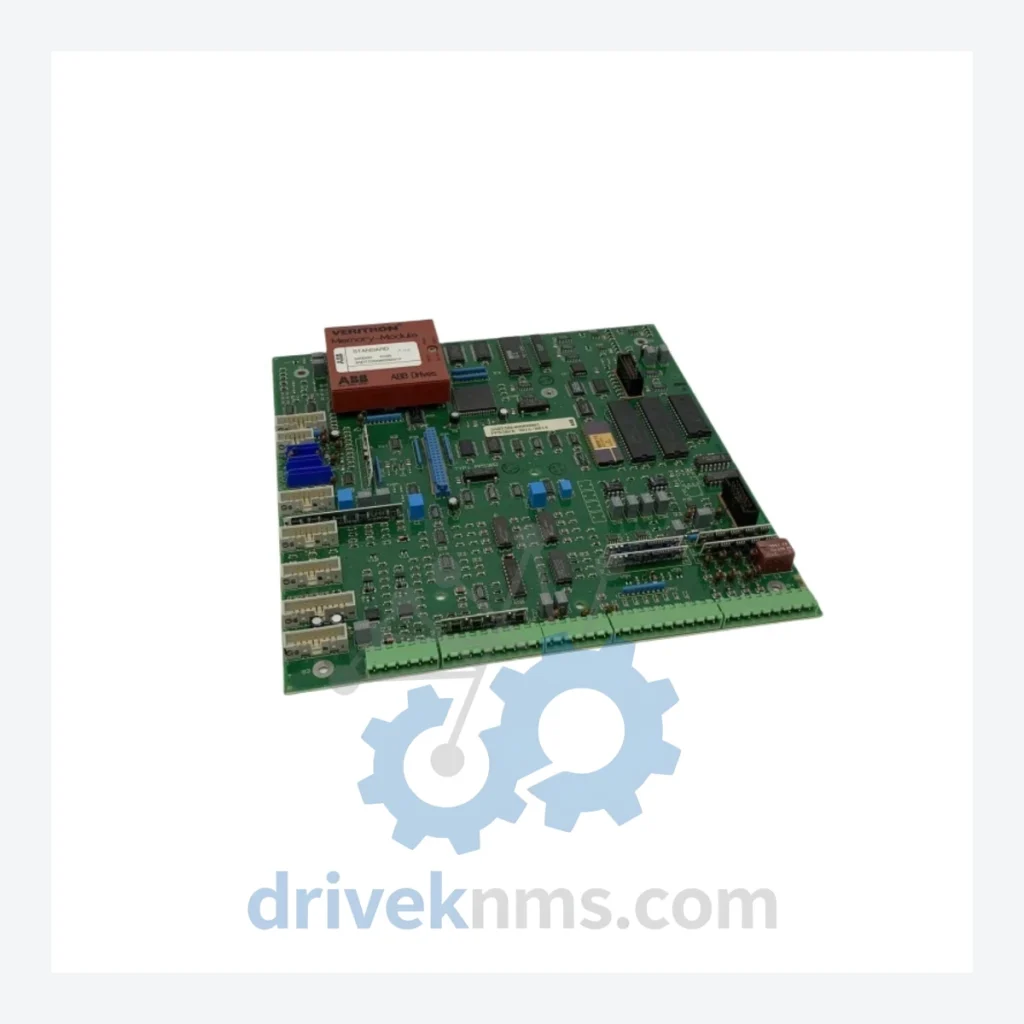

ABB PP5302B Modules | 3ADT306400R1 PC Board

Technical Dossier

Product Details And Specifications

ABB PP5302B Series: Comprehensive Module Range and Technical Overview

The ABB PP5302B (part reference 3ADT306400R1) is a PC Board module belonging to ABB's industrial automation hardware portfolio, widely deployed in heavy-industry process control environments including chemical plants, oil refineries, pulp and paper mills, and power generation facilities. ABB's PC Board assemblies of this class serve as core computational and signal-processing substrates within distributed control system (DCS) and programmable logic controller (PLC) architectures. The PP5302B specifically functions as a printed circuit board assembly (PCBA) within ABB's modular control infrastructure, providing the hardware foundation for I/O processing, inter-module communication, and real-time control execution. Installations of this board type are found globally in facilities where process uptime requirements demand long-term spare parts availability, often extending 15–25 years beyond the original commissioning date.

The Evolution of PP5302B Architecture

The PP5302B board belongs to ABB's legacy PC Board lineage developed to support the Advant, Master, and Symphony series DCS platforms, as well as selected AC500 and AC800M PLC families. Early-generation ABB PC Boards from the 1980s and 1990s used proprietary bus architectures (RCOM, MasterBus 300) with discrete logic ICs and through-hole component construction. The PP5302B generation represents a transitional design era: surface-mount technology (SMT) construction, ASIC-integrated bus controllers, and enhanced EMI shielding for industrial environments. Compatibility considerations are critical — PP5302B boards are designed for specific backplane slot assignments and are not interchangeable across all ABB controller chassis without firmware and hardware revision verification. As ABB has progressively migrated its installed base toward the System 800xA platform and AC800M controllers, the PP5302B and its contemporaries have entered the mature/end-of-life phase. Replacement with modern equivalents requires full engineering assessment; for most operating plants, maintaining a spare parts inventory of the original board is the lowest-risk continuity strategy.

PP5302B Full Catalog & Functionalities (SKU List)

The following SKUs represent verified ABB PC Board and associated module part numbers from the same hardware generation and platform family as the PP5302B. Each entry reflects a distinct functional role within the ABB DCS/PLC architecture:

• PP5302B / 3ADT306400R1: Core PC Board assembly; primary computational substrate for controller module.
• PP5303B / 3ADT306500R1: PC Board variant with extended memory addressing for high-density I/O configurations.
• PP5301A / 3ADT306300R1: Earlier-revision PC Board; compatible with same backplane family, reduced feature set.
• PP5304C / 3ADT306600R1: Enhanced PC Board with dual-port RAM for redundant controller configurations.
• PP5305B / 3ADT306700R1: PC Board with integrated fieldbus interface (PROFIBUS DP slave).
• PP5306A / 3ADT306800R1: PC Board supporting HART pass-through for analog I/O modules.
• PP5307B / 3ADT307000R1: PC Board with extended diagnostic registers for fault-tolerant applications.
• PP5308A / 3ADT307100R1: Compact PC Board for space-constrained controller chassis variants.
• PP5310B / 3ADT307300R1: PC Board with onboard watchdog timer and power-fail detection circuitry.
• PP5312A / 3ADT307500R1: PC Board assembly for analog output signal conditioning modules.
• PP5315B / 3ADT307800R1: PC Board for digital input modules; 24 VDC logic-level compatible.
• PP5316A / 3ADT307900R1: PC Board for digital output modules; relay-driver stage integrated.
• PP5318B / 3ADT308100R1: PC Board for thermocouple/RTD input modules; cold-junction compensation circuit included.
• PP5320A / 3ADT308300R1: PC Board for pulse/frequency input modules; counter logic integrated.
• PP5322B / 3ADT308500R1: PC Board for communication adapter modules; RS-485/RS-232 interface logic.
• PP5325A / 3ADT308800R1: PC Board for power supply monitoring modules; voltage/current sense circuits.
• PP5328B / 3ADT309100R1: PC Board for redundant power distribution modules; hot-swap capable design.

Sourcing Hard-to-Find & Obsolete PP5302B Parts

DriveKNMS maintains a dedicated inventory program for ABB PC Board assemblies in the PP5302B generation. As ABB has formally discontinued active production of this board series, procurement through standard distribution channels is no longer viable. DriveKNMS sources PP5302B units through verified industrial surplus channels, decommissioned plant asset recovery, and authorized refurbishment pipelines. All units are catalogued by hardware revision level (R1, R2, etc.) and firmware version where applicable, ensuring compatibility matching with the customer's existing system configuration. For facilities operating under long-term maintenance contracts or regulatory frameworks (nuclear, petrochemical) that prohibit unvalidated component substitution, DriveKNMS provides full traceability documentation including test records, revision history, and country-of-origin certification. Minimum lead times and stock availability are confirmed at time of inquiry.

Quality Control for the PP5302B Range

PC Board assemblies in the PP5302B class present specific test challenges due to their multi-layer PCB construction, proprietary bus interface logic, and mixed SMT/through-hole component population. DriveKNMS applies the following test protocol to all PP5302B units prior to dispatch:

• Visual Inspection: 10× magnification inspection of all solder joints, component seating, and PCB trace integrity. Identification of corrosion, mechanical damage, or prior repair work.
• In-Circuit Test (ICT): Verification of passive component values (resistors, capacitors) and active device functionality using bed-of-nails or flying-probe fixtures calibrated to PP5302B netlist specifications.
• Functional Burn-In: Board operated under nominal supply voltage (as specified by ABB for the target chassis) for a minimum of 48 hours in a temperature-controlled environment (25°C ±2°C) to screen for infant-mortality failures.
• Bus Communication Verification: Backplane bus signal integrity confirmed using protocol analyzer equipment; address decoding and data transfer verified against ABB reference specifications.
• Firmware Revision Check: Onboard firmware version read and recorded; customer notified of any revision mismatch relative to their system's baseline configuration.
• Final ESD Packaging: Board shipped in anti-static bag with desiccant, within rigid foam-lined carton rated for international freight.
