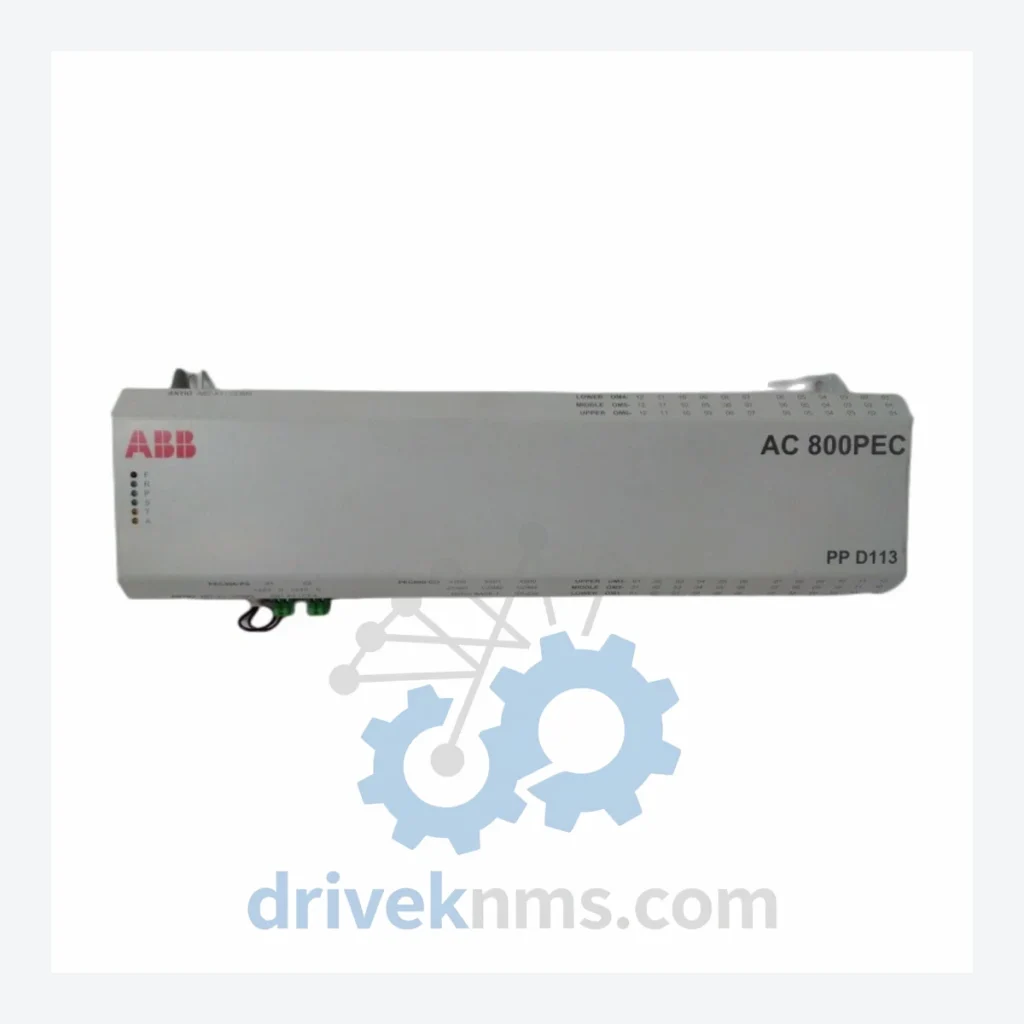

ABB PPD113B01 3BHE023784R1010 Circuit Board – Obsolete ACS800 Drive Spare Part

When an ABB ACS800 medium-voltage drive goes offline due to a failed control board, the consequences are not limited to the cost of the part itself. A full drive replacement or system migration to a current-generation ACS880 platform involves engineering re-commissioning, motor parameter re-tuning, safety re-certification, and production downtime — a total project cost that routinely exceeds USD $200,000–$500,000 in heavy process industries such as oil refining, pulp and paper, and mineral processing. The ABB PPD113B01 (order code 3BHE023784R1010) is the control board assembly used in the ACS800 drive series. ABB has discontinued active production of this board. Replacement units are no longer available through standard distribution channels. DriveKNMS maintains a limited inventory of this component, sourced through verified industrial decommissioning and surplus channels.

Technical Specifications

Note: Electrical parameters specific to individual drive configurations are not published here to prevent misapplication. Contact our technical team for compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The ACS800 drive platform was deployed extensively from the late 1990s through the 2010s across petrochemical plants, water treatment facilities, cement production lines, and offshore platforms. Many of these installations are mid-lifecycle assets — the mechanical infrastructure (motors, gearboxes, piping) has 15–25 years of remaining service life, but the control electronics are now unsupported by the OEM.

The PPD113B01 board is the central control intelligence of the ACS800 drive. It manages the IGBT gate firing sequence, fault diagnostics, fieldbus communication (DDCS protocol), and the interface to the ACS800's I/O extension modules. A failure of this board renders the entire drive inoperable. There is no field-repairable substitute — the board must be replaced with an identical unit to maintain the existing drive configuration without re-engineering.

For plant managers facing OEM end-of-support pressure, the strategic calculus is straightforward: sourcing one or two PPD113B01 boards as long-term spares costs a fraction of a full drive replacement project. A single board in storage can extend the operational life of an ACS800 installation by 5–10 years, deferring a capital expenditure that may not align with current budget cycles or production plans.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality assurance process to all obsolete circuit boards before dispatch:

• Step 1 – Visual Inspection: Full board examination under magnification. Checks for cracked solder joints, burnt components, PCB delamination, and physical damage from prior installation.
• Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary failure point in aged power electronics. Each capacitor is tested for capacitance value, ESR (equivalent series resistance), and leakage current. Units showing degradation are replaced with specification-matched components.
• Step 3 – Firmware Version Verification: The firmware revision on the board's onboard memory is identified and documented. Compatibility with the target drive's software version is confirmed prior to shipment.
• Step 4 – Pin and Connector Inspection: All edge connectors, ribbon cable interfaces, and backplane pins are inspected for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.
• Step 5 – Functional Power-On Test: Where test fixtures are available for the ACS800 platform, boards are powered and subjected to communication and I/O response testing. Test results are documented and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The PPD113B01 is a direct hardware substitute for the original board. No drive cabinet modifications are required.
• No re-programming required: Drive parameters are stored in the ACS800's parameter memory, not on this board. Replacing the board does not erase existing motor or application parameters.
• No engineering re-commissioning: Unlike a full drive replacement, a board swap does not trigger safety re-certification or motor re-tuning requirements in most jurisdictions.
• Minimal downtime: A trained drive technician can complete a board replacement in 1–4 hours, compared to weeks for a full drive changeout project.
• Asset life extension: A single spare board in inventory provides insurance against unplanned production loss for the remaining service life of the drive installation.

FAQ

Q: What warranty applies to obsolete parts?
A: DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New Old Stock (NOS) units carry a 180-day warranty. Warranty covers functional failure under normal operating conditions and excludes damage from incorrect installation or electrical overstress.

Q: How do I confirm this is a genuine ABB board and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects or verified surplus distributors. ABB board markings, PCB revision codes, and component date codes are inspected as part of our intake process. Certificates of conformance and sourcing documentation are available upon request.

Q: Should I buy more than one unit as a long-term spare?
A: For facilities operating multiple ACS800 drives, holding two units is the standard recommendation. One unit covers an immediate failure; the second covers the period required to source a replacement after the first is consumed. Given the declining availability of this part, procurement delay risk increases each year.

Q: Can this board be used in all ACS800 variants?
A: The PPD113B01 / 3BHE023784R1010 is specific to defined ACS800 configurations. Compatibility depends on the drive's power rating, software version, and installed option modules. Contact our technical team with your drive's full type code before ordering.
