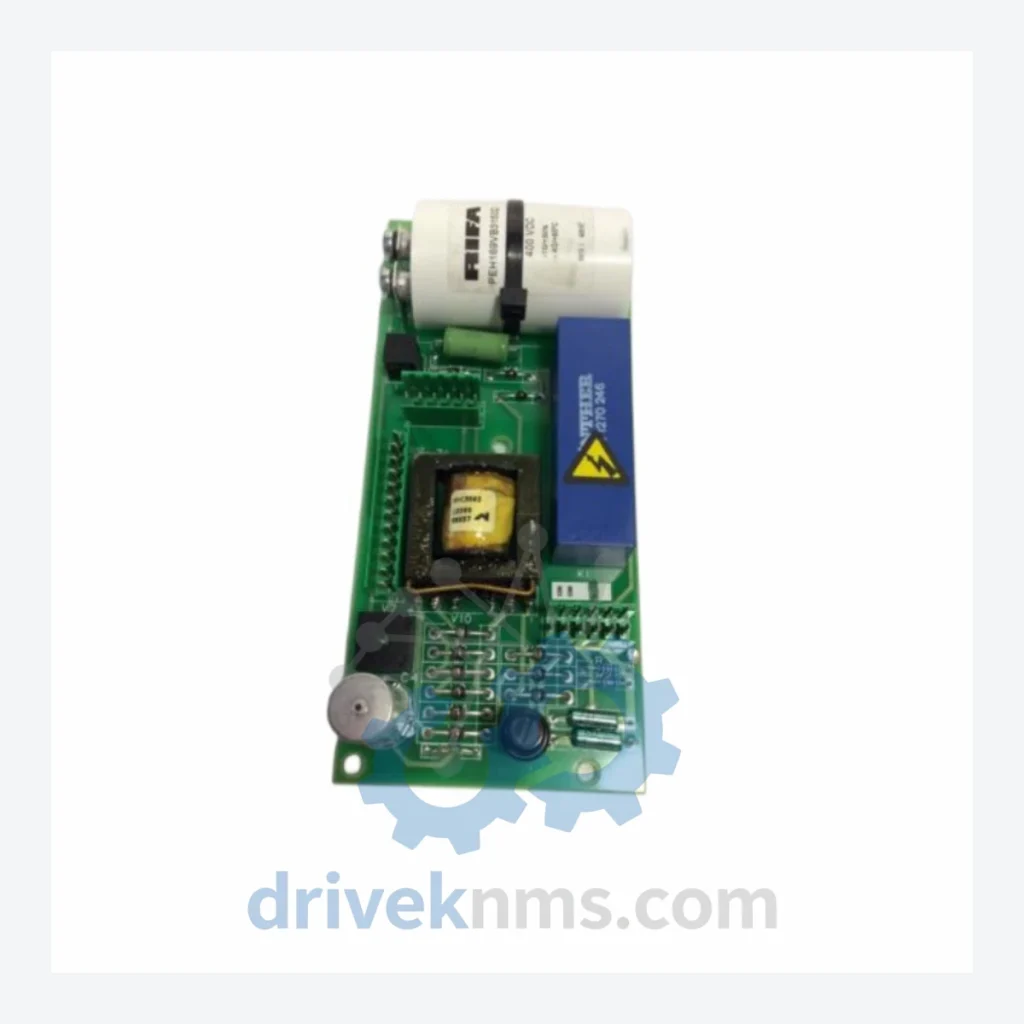

ABB SAFT166APC Power Connection Board – Obsolete SAFT 160 Series Spare Part

Technical Dossier

Product Details And Specifications

ABB SAFT166APC Power Connection Board – Obsolete SAFT 160 Series Spare Part

When an ABB SAFT166APC Power Connection Board fails inside a running production line, the consequences are not limited to a single drive. The SAFT 160 series drive system — long discontinued by ABB — is deeply embedded in legacy automation infrastructure across steel mills, paper plants, cement facilities, and marine propulsion systems worldwide. A single board failure can halt an entire process line. Sourcing a replacement through OEM channels is no longer possible. Engineering a retrofit to a modern drive platform requires months of project planning, re-commissioning, and retraining — costs that routinely exceed hundreds of thousands of dollars before the first test run.

DriveKNMS maintains verified physical stock of the SAFT166APC. This is not a catalog listing. This is a confirmed, inspected unit available for immediate dispatch.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB SAFT 160 drive series was a workhorse of industrial automation through the 1980s and 1990s. Its control architecture — built around modular boards including the SAFT166APC — was designed for long service life in demanding environments. That durability is now a double-edged reality: these systems are still running, but the supply chain that supported them has been closed for years.

The SAFT166APC Power Connection Board sits at the interface between the drive's control logic and its power stage. It is not a peripheral component. Its failure directly disables drive output. There is no field workaround. There is no software patch. The board must be replaced with an electrically and mechanically compatible unit — and the SAFT166APC is the only drop-in solution.

Factory managers operating legacy ABB SAFT 160 installations face a clear decision: maintain a strategic spare inventory now, or accept the operational and financial exposure of an unplanned outage with no replacement path. The cost of a single unplanned shutdown — lost production, emergency engineering, expedited freight — typically exceeds the cost of maintaining a multi-year spare inventory by an order of magnitude.

Extending the service life of a SAFT 160 installation by 5 to 10 years through targeted spare parts management is a documented, low-cost strategy used by maintenance teams in industries where process continuity is non-negotiable. The approach requires three things: a current condition assessment of installed boards, identification of the highest-failure-risk modules, and secured stock of those modules before the next failure event. The SAFT166APC is consistently on that list.

Condition & Reliability Assurance

Every SAFT166APC unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual Inspection: Full board examination for physical damage, burn marks, cracked solder joints, and contamination.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are individually checked for signs of aging, electrolyte leakage, and bulging — the most common failure mode in boards of this age.
• Step 3 – Pin and Connector Integrity: All edge connectors and pin headers are inspected for corrosion, oxidation, and mechanical deformation. Affected contacts are cleaned or flagged for disclosure.
• Step 4 – Firmware and Revision Verification: Board revision markings are recorded and cross-referenced against known compatible revisions for the SAFT 160 platform.
• Step 5 – Functional Verification: Where test equipment permits, boards are bench-tested under controlled conditions prior to packaging.

Condition grade and any noted observations are disclosed in full prior to order confirmation. We do not ship units with undisclosed defects.

Key Features for System Maintenance

• Drop-in Replacement: The SAFT166APC installs directly into the existing drive chassis with no mechanical modification required.
• No Reprogramming Required: Drive parameter sets stored in the control unit are unaffected by a power connection board replacement. Commissioning time is limited to standard post-replacement checks.
• No Engineering Redesign: Unlike a drive platform migration, a board-level replacement preserves the existing control architecture, wiring, and operator interface — eliminating project management overhead and retraining costs.
• Immediate Dispatch: Stock is held at our warehouse. Orders confirmed before cut-off ship same day or next business day.

FAQ

What warranty applies to an obsolete part like the SAFT166APC?
DriveKNMS provides a 90-day warranty against defects identified through our inspection process. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All units are sourced through verified industrial channels. Board markings, revision codes, and physical construction are cross-checked against known authentic references. Inspection records are available on request.

Should I buy more than one unit?
For any installation running a SAFT 160 drive where the SAFT166APC is a single point of failure, holding a minimum of one cold spare is standard practice. For multi-drive installations or facilities with extended lead times for emergency procurement, two to three units is a defensible position. Stock is finite and not replenishable on demand.

Can you source other SAFT 160 series boards?
Yes. DriveKNMS specializes in the full SAFT 100/160 module range. Contact us with your complete parts list for availability confirmation.
