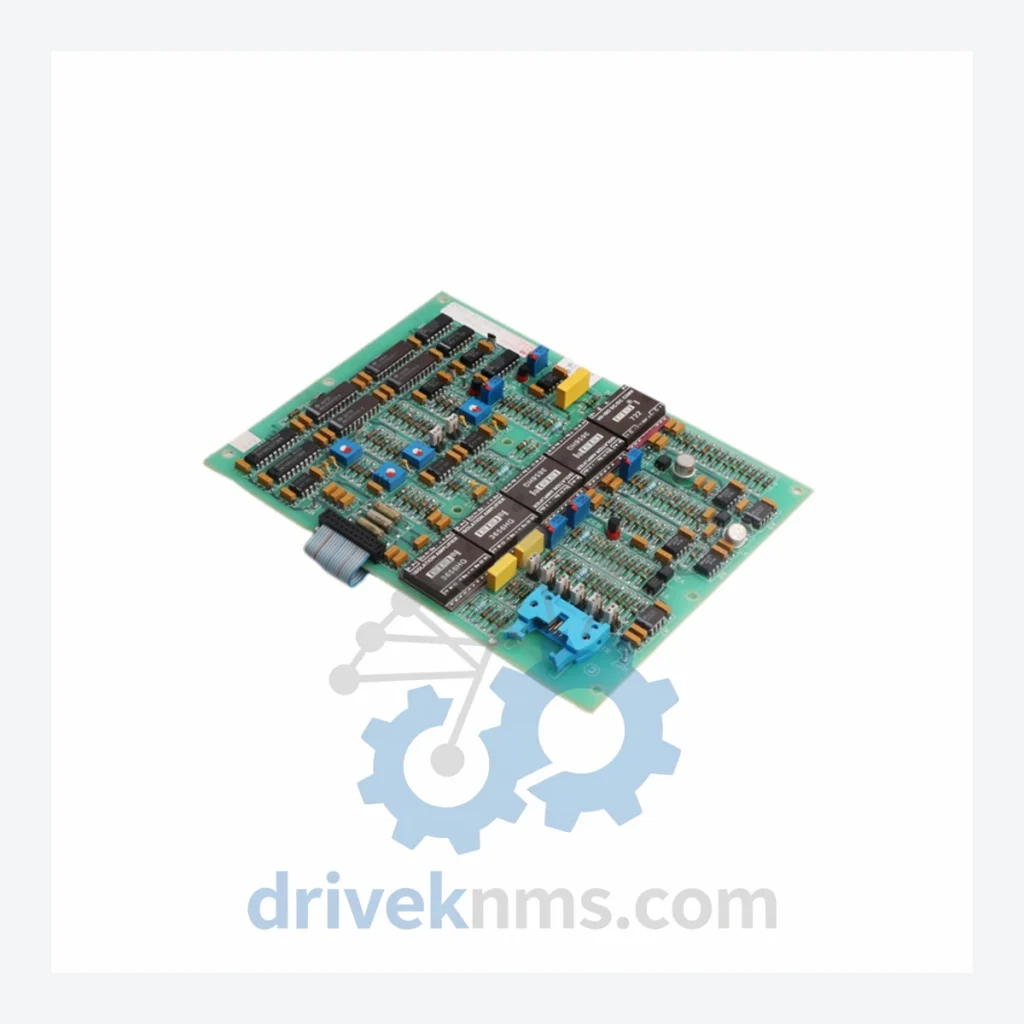

ABB SAFT164AIO Analog I/O Module – Obsolete MasterPiece 200 Spare Part

Technical Dossier

Product Details And Specifications

ABB SAFT164AIO Analog I/O Module – Obsolete MasterPiece 200 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Detailed electrical parameters (channel count, signal range, resolution) are confirmed against physical unit documentation at time of order. No parameters are published speculatively — accuracy on obsolete hardware is a safety matter.

Solving the Discontinued Hardware Crisis

The ABB MasterPiece 200 was a dominant DCS platform across heavy industry from the 1980s through the early 2000s. Thousands of installations remain in service globally — not because operators are unaware of newer alternatives, but because the cost-benefit calculation consistently favors maintenance over replacement when the underlying process control logic is stable and the hardware failure rate remains manageable.

The SAFT164AIO sits at the intersection of field instrumentation and the DCS backplane. It handles analog signal conditioning for process variables — flow, pressure, temperature, level — that feed directly into control loops. There is no generic substitute. The module communicates over the MasterPiece 200 internal bus using a proprietary protocol. Installing a non-compatible module does not result in degraded performance; it results in no communication at all. The engineering effort required to retrofit a modern analog I/O module into a MasterPiece 200 rack — including bus interface adaptation, firmware patching, and loop reconfiguration — is rarely justified for a single-module failure when a verified SAFT164AIO replacement is available.

Facilities that have extended MasterPiece 200 service life by 5–10 years beyond the original decommission plan share a common strategy: they maintain a documented critical spares inventory, they source replacement modules from verified obsolete parts specialists rather than waiting for failure, and they treat the cost of a spare module as insurance against a production loss event that would dwarf the procurement cost by orders of magnitude. A single SAFT164AIO held in a climate-controlled spare parts cabinet represents a fraction of one hour of lost production on most process lines.

Condition & Reliability Assurance

Every SAFT164AIO unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Board-level examination for physical damage, connector pin integrity, and housing condition. Units with bent or corroded pins are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode on boards of this era. Each unit is assessed for capacitor condition; units showing visible bulging, leakage, or ESR anomalies are either recapped with specification-matched components or rejected.
• Step 3 – Firmware Version Verification: Where firmware version markings are present on onboard EPROMs or labels, these are documented and cross-referenced against known MasterPiece 200 compatibility matrices.
• Step 4 – Connector and Pin Corrosion Check: Backplane and field wiring connectors are inspected under magnification. Contact surfaces are cleaned and treated where oxidation is present but the base metal is intact.
• Step 5 – Functional Verification: Where test infrastructure permits, modules are powered and basic I/O response is verified prior to packaging.

Key Features for System Maintenance

• Drop-in Replacement: The SAFT164AIO installs directly into the existing MasterPiece 200 rack slot. No backplane modification, no wiring changes.
• No Reprogramming Required: The replacement module operates with existing DCS configuration. Control loop parameters, tag assignments, and alarm setpoints remain intact.
• Avoids Engineering Reconstruction Costs: A forced migration triggered by unavailable spare parts requires full loop documentation, new I/O mapping, FAT/SAT testing, and operator requalification. A verified spare module eliminates this exposure entirely.
• Extends Asset Service Life: Facilities using a proactive critical spares strategy routinely extend MasterPiece 200 operational life by 5–10 years beyond the point at which OEM support was withdrawn — deferring capital expenditure to a planned, budgeted cycle rather than an emergency response.
• Documented Traceability: Each unit shipped by DriveKNMS is accompanied by inspection records and condition documentation, supporting your internal maintenance management system records.
