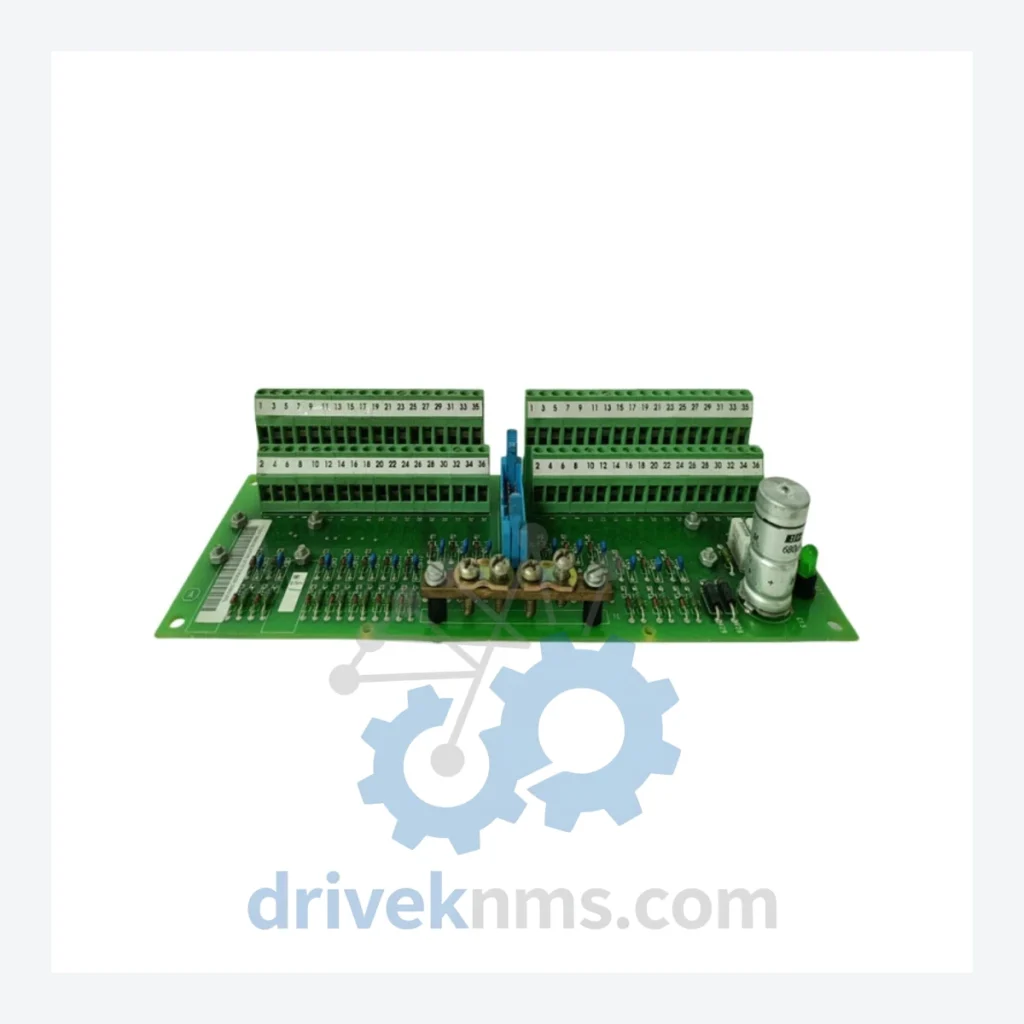

ABB SCYC55830 Modules

Technical Dossier

Product Details And Specifications

ABB SCYC55830 Series: Comprehensive Module Range and Technical Overview

The ABB SCYC55830 series is a family of printed circuit boards and sub-assemblies deployed within ABB's Advant OCS / Master DCS platform — one of the most widely installed distributed control systems in global heavy industry. Installations span petrochemical complexes, nuclear power auxiliary systems, offshore oil & gas platforms, pulp and paper mills, and large-scale water treatment facilities. The SCYC55830 designation covers a range of board-level assemblies differentiated by sub-revision codes (e.g., 58063282A, 58063282B), each corresponding to specific hardware revisions within the Advant Master controller and I/O subsystem architecture. Due to the long operational lifespan of Advant OCS installations — commonly 20 to 30 years — demand for SCYC55830 series boards as spare parts and lifecycle replacements remains active well into the 2020s.

The Evolution of SCYC55830 Architecture

The SCYC55830 board family was introduced as part of ABB's Advant Master (AM) platform, which succeeded the earlier ASEA MASTER series in the late 1980s and was progressively developed through the 1990s. The Advant Master architecture is built around a proprietary MasterBus 300 (MB300) communication backbone, operating at 2 Mbit/s, which interconnects the Master Controller (MC) units, I/O stations, and operator workstations. SCYC55830-series boards function at the backplane and controller interface level, managing signal conditioning, bus arbitration, and inter-module communication within the AM controller subrack.

Hardware revisions within the SCYC55830 family (suffix codes A through D) reflect incremental changes to component specifications — primarily EPROM/EEPROM upgrades, capacitor reformulations for extended temperature tolerance, and EMC compliance updates for successive EU directives. Compatibility between revisions is generally maintained at the subrack level, but firmware dependencies must be verified against the installed MC software version. The Advant Master platform reached end-of-active-development in the mid-2000s; ABB's successor platform is the System 800xA, which does not offer direct hardware backward compatibility with SCYC55830-series boards. This discontinuity makes original spare boards the only viable replacement path for sites not undertaking full DCS migration.

SCYC55830 Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the ABB SCYC55830 board family and closely associated Advant Master controller-level assemblies. Each entry reflects a distinct hardware revision or functional sub-assembly.

SCYC55830 58063282A: Controller interface board, Rev A; primary backplane communication and signal routing assembly for Advant Master subrack.

SCYC55830 58063282B: Controller interface board, Rev B; updated EMC shielding and revised EPROM addressing over Rev A.

SCYC55830 58063282C: Controller interface board, Rev C; capacitor specification update for extended industrial temperature range.

SCYC55830 58063282D: Controller interface board, Rev D; final production revision; component substitutions for long-term supply continuity.

SCYC55830 58063281A: Auxiliary signal conditioning board; analog input pre-processing sub-assembly within the AM controller subrack.

SCYC55830 58063283A: Bus arbitration and watchdog board; manages MasterBus 300 token-passing and controller heartbeat monitoring.

SCYC55830 58063284A: Power distribution board; internal 5 VDC / 24 VDC rail distribution and overcurrent protection for subrack modules.

SCYC55830 58063285A: Digital I/O interface board; 32-channel DI/DO signal termination and isolation within the AM I/O station.

SCYC55830 58063286A: Analog output board; 8-channel 4–20 mA AO module with HART protocol pass-through capability.

SCYC55830 58063287A: Analog input board; 16-channel AI module supporting thermocouple, RTD, and 4–20 mA inputs.

SCYC55830 58063288A: Communication adapter board; RS-232/RS-485 serial interface for legacy field device integration.

SCYC55830 58063289A: Redundancy switchover board; manages hot-standby controller changeover logic and status signaling.

SCYC55830 58063290A: Memory expansion board; extended RAM/EPROM capacity for large application program storage in MC units.

SCYC55830 58063291A: Fieldbus gateway board; PROFIBUS-DP master interface for integration of third-party field devices.

SCYC55830 58063292A: Diagnostic and test board; onboard self-test routines and LED status indicators for subrack-level fault isolation.

SCYC55830 58063293A: Clock synchronization board; GPS/NTP time reference distribution across the Advant Master controller network.

Sourcing Hard-to-Find & Obsolete SCYC55830 Parts

ABB formally discontinued active production of SCYC55830-series boards following the end-of-life declaration for the Advant Master platform. Standard ABB distribution channels no longer carry new stock. DriveKNMS maintains a dedicated inventory of tested SCYC55830 boards sourced through controlled decommissioning projects, authorized surplus channels, and long-term storage programs. All units are catalogued by part number, revision suffix, and functional test status prior to listing.

For operators of Advant Master systems who are not yet in a position to undertake full migration to System 800xA, DriveKNMS provides lifecycle extension support including: board-level exchange programs, pre-tested replacement units with documented test records, and multi-unit lot procurement for planned maintenance shutdowns. Lead times and stock availability are confirmed at the time of inquiry. Emergency same-day dispatch is available for in-stock units.

Quality Control for the SCYC55830 Range

SCYC55830-series boards present specific test challenges due to their role in backplane communication and bus arbitration. DriveKNMS applies the following test protocol to all SCYC55830 units prior to dispatch:

Visual inspection covers solder joint integrity, capacitor condition (ESR measurement for electrolytic types), EPROM socket contact condition, and connector pin alignment. Functional testing is performed using an Advant Master subrack test fixture that replicates the MB300 bus environment, verifying correct token-passing behavior, watchdog timer operation, and I/O signal routing. Boards with firmware-dependent functions are tested against the specific MC software version specified by the customer where possible. All test results are documented and supplied with the unit. Units that do not pass full functional verification are not listed as serviceable stock.
