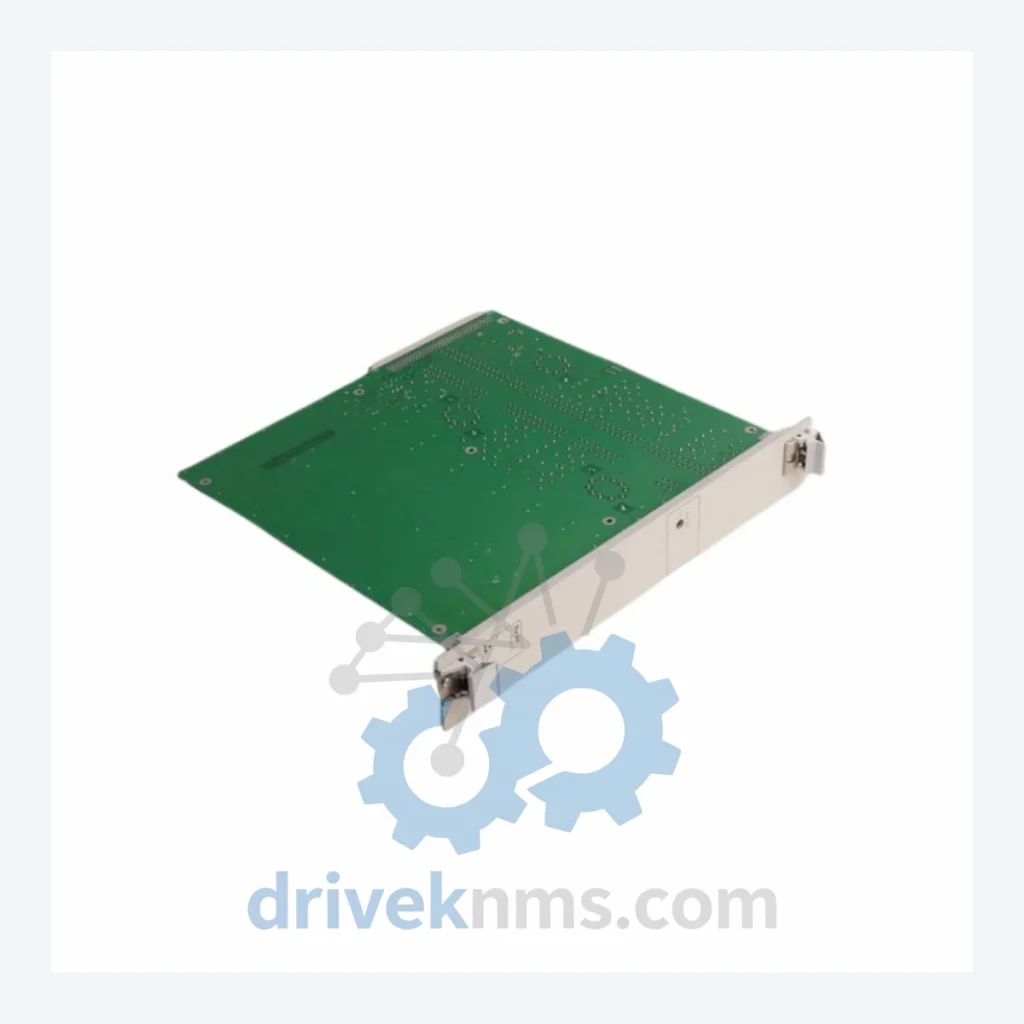

ABB SPCD3D53 Differential Unit – Obsolete SPCD Series Spare Part

Technical Dossier

Product Details And Specifications

ABB SPCD3D53 Differential Unit – Obsolete SPCD Series Spare Part

When an ABB SPCD3D53 Differential Unit fails in a live substation or industrial power protection system, the consequences extend far beyond a single module replacement. The SPCD series was a cornerstone of ABB's numerical protection relay platforms deployed throughout the 1990s and early 2000s. These systems were engineered for 20–30 year service cycles, and many remain in active operation today — embedded in protection schemes that cannot be casually decommissioned.

A forced system retirement triggered by a single unavailable module can require complete relay panel redesign, new IEC 61850 integration engineering, updated protection coordination studies, and extended outage windows. Conservative estimates place such upgrade projects in the range of hundreds of thousands to several million dollars, depending on substation scale. DriveKNMS maintains verified inventory of the SPCD3D53 to eliminate that risk.

Technical Specifications

Note: Electrical parameters such as rated current, operating thresholds, and auxiliary voltage are unit-specific and must be verified against the original system documentation. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

The ABB SPCD series was designed for high-reliability environments — power utilities, industrial substations, and process plants where protection relay failure carries direct safety and financial consequences. Unlike general-purpose automation components, protection relay modules such as the SPCD3D53 are deeply integrated into protection coordination schemes. Replacing them is not a matter of swapping hardware; it requires re-validation of the entire protection logic, updated relay setting calculations, and in many jurisdictions, regulatory re-approval of the protection scheme.

ABB ceased production of the SPCD series as part of its transition to the REF, RET, and RED615 platform generations. While the newer platforms offer expanded functionality, the engineering cost of migrating an existing SPCD-based protection scheme to a modern platform is substantial. For facilities operating multiple SPCD relay panels, maintaining a strategic spare inventory of modules like the SPCD3D53 is the only operationally sound approach to managing this transition on the facility's own timeline — not on the timeline dictated by component failure.

Facilities that have extended SPCD system service life by 5–10 years through proactive spare management report a consistent pattern: the cost of sourcing and holding critical spare modules represents less than 2–5% of the cost of an unplanned forced migration. The SPCD3D53 Differential Unit is among the highest-criticality modules in this family, as differential protection failures directly affect transformer and busbar integrity.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality assurance process to all obsolete and legacy protection relay components before shipment:

• Step 1 – Visual and Mechanical Inspection: Full examination of PCB surfaces, connector pins, and housing integrity. Any evidence of physical damage, corrosion, or prior repair work is documented and disclosed.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are a primary failure mode in relay modules of this era. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with compromised capacitors are either reconditioned with matched-specification replacements or rejected from inventory.
• Step 3 – Firmware and Configuration Verification: Where applicable, firmware version is confirmed against known SPCD3D53 release records. Units with unknown or mismatched firmware states are flagged.
• Step 4 – Pin and Contact Integrity Check: All edge connectors and terminal pins are inspected for oxidation, fretting corrosion, and mechanical deformation. Contact surfaces are cleaned and verified for reliable mating.
• Step 5 – Functional Verification: Units are powered and tested for basic operational response prior to packaging. Test records are retained and available upon request.

Key Features for System Maintenance

• Drop-in Replacement: The SPCD3D53 is a direct hardware replacement for the same module position within existing SPCD relay panels. No panel rewiring or structural modification is required.
• No Reprogramming Required: Protection settings are stored in the relay panel's setting registers, not in the module itself. Module replacement does not require re-entry of protection settings in standard configurations — verify against your specific panel documentation.
• Avoids Engineering Reconstruction Costs: Sourcing a verified spare SPCD3D53 eliminates the need to engage protection engineers for system redesign, avoiding project costs that routinely exceed the value of the original installation.
• Maintains Existing Protection Coordination: Retaining the original hardware preserves the validated protection coordination scheme, avoiding the re-approval process required when changing relay types in regulated environments.
• Extends Asset Service Life: A single verified spare module can extend the operational life of an entire SPCD relay panel by 5–10 years, deferring capital expenditure on system replacement to a planned budget cycle.

FAQ

Q: What warranty applies to obsolete parts like the SPCD3D53?
A: DriveKNMS provides a standard 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available for volume orders — contact us to discuss.

Q: How do I know the unit is genuine and not a counterfeit?
A: All ABB SPCD3D53 units in our inventory are sourced through verified industrial decommissioning channels and authorized surplus networks. Physical markings, date codes, and construction details are cross-referenced against known genuine units. Our QA process documentation is available for review upon request.

Q: Should I purchase more than one unit as a long-term reserve?
A: For facilities operating SPCD-based protection schemes with no near-term migration plan, holding a minimum of two SPCD3D53 units as strategic spares is a standard risk management practice. Global availability of this module continues to decline as decommissioned systems are scrapped. Current inventory levels at DriveKNMS are limited.

Q: Can DriveKNMS source additional units if I need more than currently listed?
A: Yes. Submit your requirement to our procurement team with quantity and delivery timeline. We maintain active sourcing channels for ABB SPCD series components globally.
