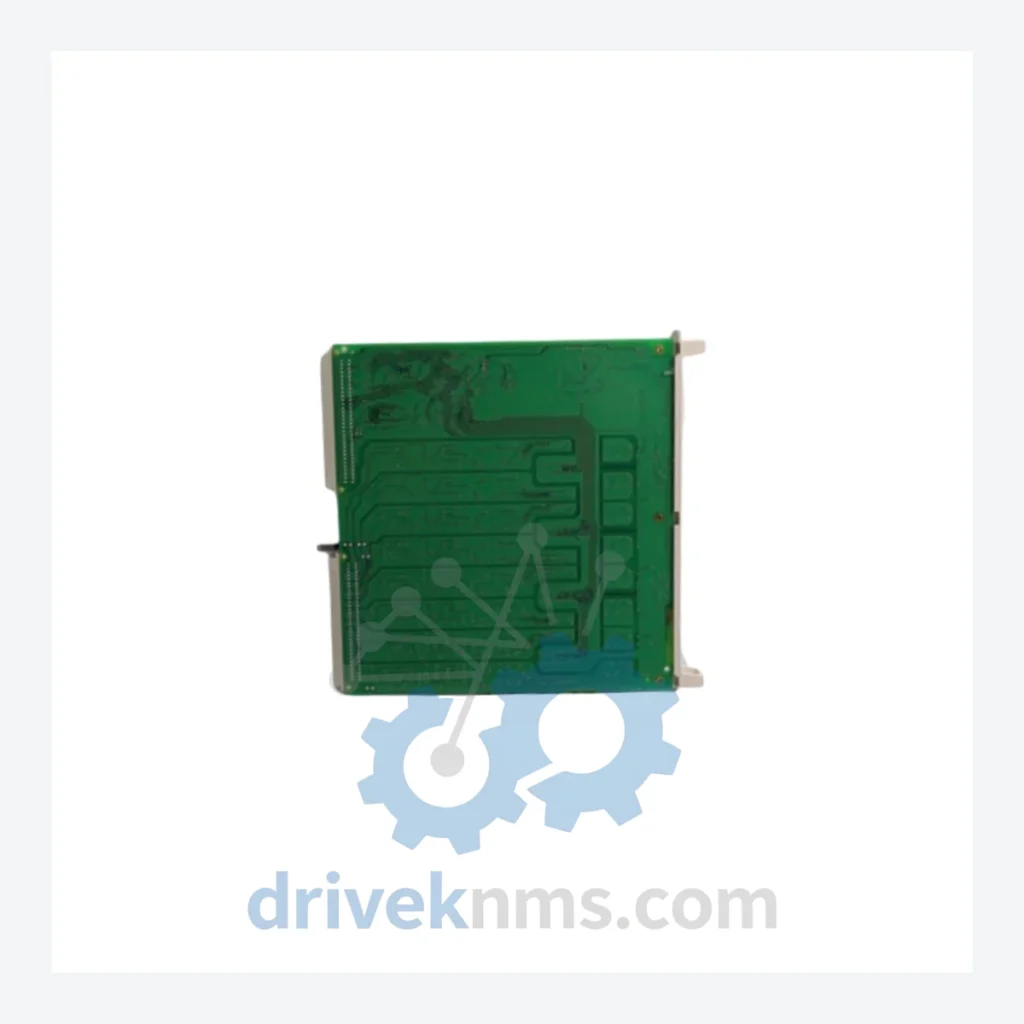

ABB TC512 Modules: TC512V1 3BSE018059R1

Technical Dossier

Product Details And Specifications

ABB TC512 Series: Comprehensive Module Range and Technical Overview

The ABB TC512 series is a dedicated twisted pair modem communication module developed under ABB's Advant / Master fieldbus architecture. It is deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and offshore oil & gas platforms. The TC512 series enables reliable RS-485 / twisted pair serial communication between Advant Controller stations and remote I/O clusters, making it a critical backbone component in legacy DCS installations that remain operational worldwide. Its continued demand in the spare parts market reflects the long service life of ABB Advant-based control systems, many of which are still under active maintenance contracts with 10–20 year extension horizons.

The Evolution of TC512 Architecture

The TC512 modem module was introduced as part of ABB's Advant OCS (Open Control System) platform in the late 1980s and early 1990s. It operates within the Advant Fieldbus 100 (AF100) and MasterBus 300 communication layers, providing point-to-point and multi-drop twisted pair connectivity at baud rates up to 1 Mbit/s. Early revisions of the TC512 were designed for integration with the Advant Controller 110 (AC110) and AC160 families. Subsequent hardware revisions — including the V1 suffix variant (TC512V1, catalog number 3BSE018059R1) — introduced improved EMI shielding, extended temperature tolerance, and enhanced diagnostic LED indicators for field troubleshooting. As ABB transitioned its DCS portfolio toward the System 800xA platform, the TC512 series entered a maintenance-only lifecycle. No direct functional replacement exists within 800xA that preserves backward compatibility without a full migration project, making original TC512 hardware the only viable option for system-consistent repairs. Compatibility spans: AC110, AC160, AC450, Advant Station 500 series, and selected Harmony configurations.

TC512 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the ABB TC512 and associated Advant communication module range. Each entry reflects a distinct hardware configuration or catalog revision:

TC512V1 / 3BSE018059R1: Twisted pair modem V1, AF100 fieldbus, RS-485, 1 Mbit/s, DIN-rail mount
TC512 / 3BSE000435R1: Base revision twisted pair modem, Advant Fieldbus 100 interface module
TC514V2 / 3BSE018369R1: Coaxial modem V2, MasterBus 300 coax segment interface
TC515 / 3BSE018369R2: Coaxial modem, extended temperature variant for harsh environments
TC560V2 / 3BSE001449R1: Optical modem, fiber optic AF100 segment, single-mode
TC562 / 3BSE004818R1: Optical modem, multi-mode fiber, short-distance fieldbus extension
TC570 / 3BSE001450R1: Bus terminator unit for AF100 twisted pair segment
TC575 / 3BSE003816R1: Repeater module, AF100 signal regeneration for extended cable runs
TC580 / 3BSE003816R2: Redundant repeater, dual-channel AF100 segment bridging
DSCS140 / 3BSE003641R1: Communication supervisor module, Advant OCS station-level bus control
DSAI130A / 3BSE003127R1: Analog input module, 16-channel, 4–20 mA, Advant I/O rack
DSAO120A / 3BSE003128R1: Analog output module, 8-channel, 4–20 mA, Advant I/O rack
DSDI110A / 3BSE003130R1: Digital input module, 32-channel, 24 VDC, Advant I/O rack
DSDO110A / 3BSE003131R1: Digital output module, 32-channel, 24 VDC, relay-isolated
DSDP140 / 3BSE003132R1: Pulse counter / digital processing module, high-speed input
DSMB175 / 3BSE018168R1: MasterBus 300 interface module, station-to-station communication
DSPC172 / 3BSE003573R1: CPU processor module, Advant Controller 450, 32-bit
DSQC503 / 3HAC1462-1: I/O unit, robot controller interface, Advant-compatible I/O bus

Sourcing Hard-to-Find & Obsolete TC512 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life ABB Advant communication modules, including the full TC512 modem family. As ABB has formally discontinued production of TC512-series hardware, procurement through authorized new-stock channels is no longer possible. DriveKNMS sources verified surplus, refurbished, and new-old-stock (NOS) units through a global network of industrial decommissioning projects, OEM overstock liquidations, and long-term storage facilities. Each unit is cataloged by hardware revision, firmware label, and physical condition grade (Grade A: unused NOS; Grade B: tested pull with full functionality; Grade C: cosmetic wear, full electrical function). For customers operating Advant-based DCS systems under long-term service agreements, DriveKNMS offers reserved stock allocation — guaranteeing unit availability for a defined contract period. This service is specifically designed for power generation, water treatment, and chemical processing facilities that cannot execute a full DCS migration within their current maintenance window.

Quality Control for the TC512 Range

All TC512V1 and related Advant communication modules processed by DriveKNMS undergo a structured multi-stage inspection protocol before dispatch. Stage 1 — Visual Inspection: PCB examined under 10x magnification for solder joint integrity, capacitor condition, and connector pin alignment. Stage 2 — Power-On Functional Test: Module energized at rated 24 VDC supply; LED diagnostic indicators verified against ABB factory test matrix. Stage 3 — Communication Loop Test: TC512 units are tested in a live AF100 twisted pair segment using an Advant Controller test bench; data throughput verified at 1 Mbit/s with error-rate monitoring over a 30-minute cycle. Stage 4 — Backplane Bus Integrity Check: Module seated in Advant S100 I/O rack; backplane communication signals probed for timing compliance. Stage 5 — Final Documentation: Each unit ships with a DriveKNMS test report, including serial number, test date, technician ID, and pass/fail log. Units that do not pass all five stages are quarantined and not offered for sale.
