ABB TC513 3BSE006385R1 AF100 Modem – Obsolete AF100 Fieldbus Spare Part

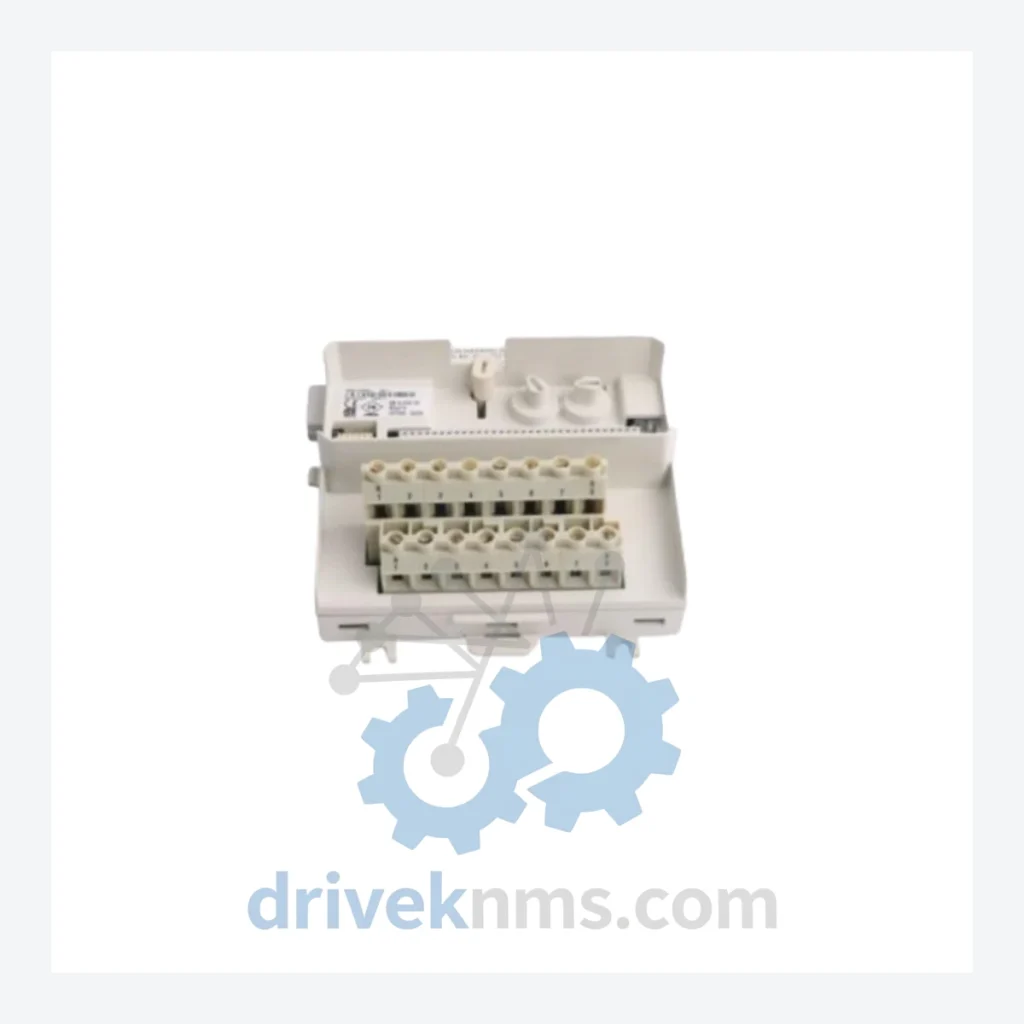

When the ABB TC513 modem fails, the conversation in your plant stops — literally. This module is the physical communication bridge between field devices and the AF100 fieldbus backbone found in ABB Advant Controller 110/160 and MasterPiece 200/1 systems. These platforms were engineered for 30-year service lives, and many are still running critical processes in power generation, pulp & paper, and chemical plants worldwide. ABB discontinued the TC513 years ago. No current-generation replacement drops in without a full engineering rework of the control architecture — a project that routinely costs $500,000 to several million dollars when you factor in hardware, software migration, process downtime, and recommissioning. A single TC513 unit on the shelf eliminates that risk entirely. DriveKNMS maintains verified stock of this module for exactly this scenario.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on published ABB documentation. No parameters are fabricated. Contact us for datasheet confirmation.

Solving the Discontinued Hardware Crisis

The AF100 fieldbus was ABB's proprietary high-speed communication standard for the Advant and MasterPiece control families — systems that managed safety-critical loops in industries where unplanned downtime is measured in tens of thousands of dollars per hour. The TC513 modem is not a generic component. It implements the AF100 protocol at the physical layer, handling the impedance matching and signal conversion between twisted-pair field wiring and the coaxial backbone. No off-the-shelf industrial modem replicates this function.

Plant managers facing TC513 failure have two realistic options: source a verified replacement unit, or commit to a full DCS migration. The migration path is not a maintenance decision — it is a capital project. It requires new I/O hardware, controller licensing, HMI redevelopment, loop-by-loop functional testing, and a planned production shutdown. For a mid-size process unit, total cost of ownership for that migration rarely falls below $800,000. For facilities running multiple Advant or MasterPiece nodes, the figure scales accordingly.

Extending the life of an existing AF100 system by 5 to 10 years through strategic spare parts procurement is not a compromise — it is a defensible asset management strategy. The capital expenditure deferred, combined with the operational continuity maintained, produces a return that no migration project can match on a short timeline. The TC513 is a low-cost insurance policy against a high-consequence failure mode.

Condition & Reliability Assurance

Obsolete parts sourced without verification introduce their own failure risk. DriveKNMS applies a 5-step inspection protocol to every TC513 unit before it ships:

• Step 1 – Visual & Mechanical Inspection: Board-level examination for physical damage, corrosion on edge connectors, and pin integrity on all interface points.
• Step 2 – Electrolytic Capacitor Assessment: Targeted inspection of electrolytic capacitors for bulging, leakage, or ESR drift — the primary age-related failure mode in modules of this vintage.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is confirmed against known-compatible versions for the target controller platform.
• Step 4 – Functional Bench Test: Module is powered and communication function is verified under controlled conditions prior to packaging.
• Step 5 – Anti-Static Packaging & Documentation: Unit is sealed in ESD-safe packaging with inspection record. Condition grade (New Surplus or Refurbished) is clearly documented on the shipping label and invoice.

Key Features for System Maintenance

• Drop-in replacement: The TC513 installs directly into the existing rack slot. No hardware modification to the controller backplane is required.
• No reprogramming required: The AF100 fieldbus configuration resides in the controller, not the modem. Swapping the TC513 does not require re-engineering the communication topology or reloading application software.
• Avoids engineering rework costs: Replacing this module keeps your existing I/O mapping, loop tuning, and HMI tag structure intact. There is no migration project, no recommissioning schedule, and no production window required beyond the physical swap.
• Supports long-term asset lifecycle planning: Procurement of one or two additional TC513 units as cold spares provides a 5–10 year buffer against fieldbus communication failure — at a fraction of the cost of any migration alternative.

FAQ

What warranty applies to an obsolete part like the TC513?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on new surplus stock. Warranty covers failure under normal operating conditions and excludes damage from incorrect installation or electrical overstress.

How do I know the unit is genuine and not counterfeit?
All TC513 units are sourced from decommissioned ABB systems or verified industrial surplus channels. Each unit carries original ABB labeling. Our inspection report, including photos, is available upon request before purchase.

Should I buy more than one unit?
For any facility running a single-source critical communication path on an obsolete fieldbus, holding a minimum of one cold spare is standard practice. If your plant operates multiple AF100 nodes, two to three units is a reasonable strategic reserve. The cost of a spare TC513 is negligible relative to the cost of an unplanned outage while sourcing a replacement under pressure.

Can you source other ABB Advant or MasterPiece spare parts?
Yes. DriveKNMS specializes in hard-to-find components across the full ABB Advant, MasterPiece, and Freelance legacy portfolios. Contact us with your part number for availability and lead time.
