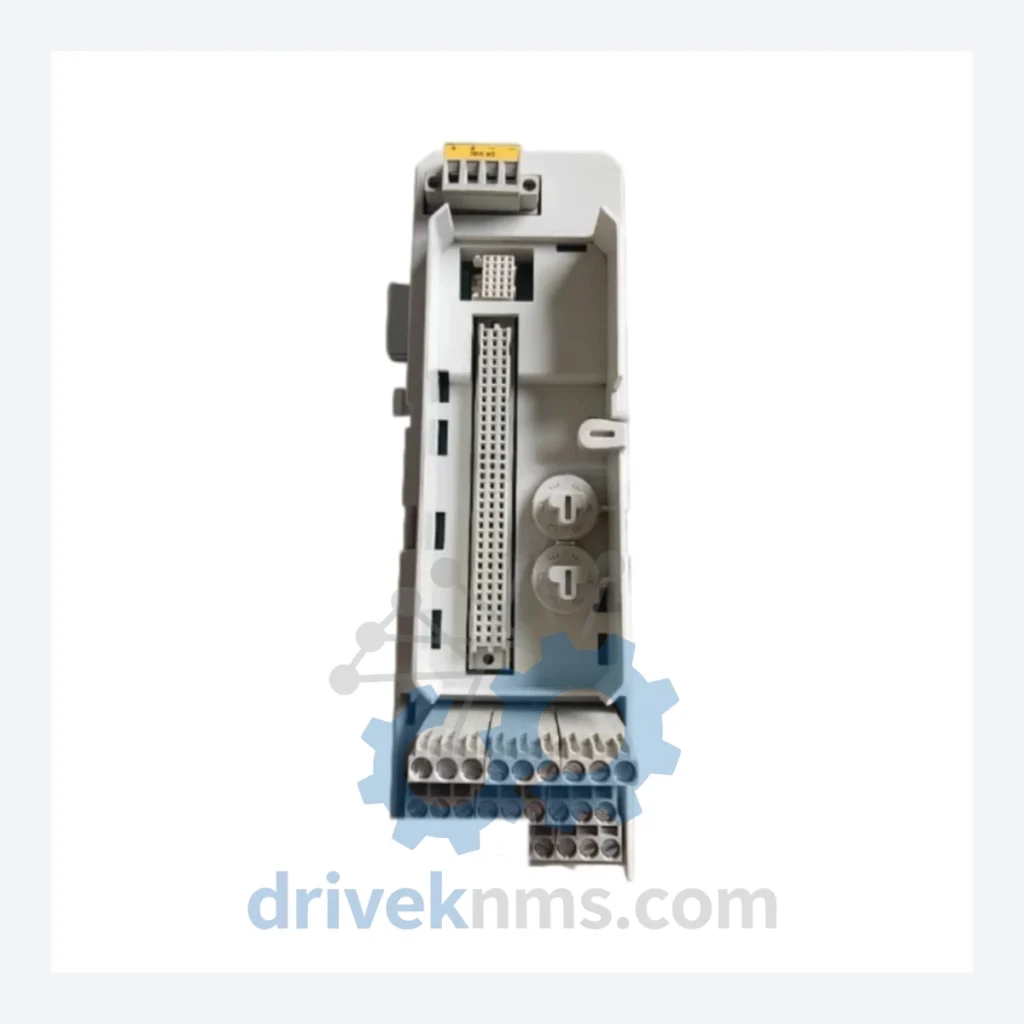

ABB TU891 3BSC840157R1 Termination Unit – Obsolete S800 I/O Spare Part

Technical Dossier

Product Details And Specifications

ABB TU891 3BSC840157R1 Termination Unit – Obsolete S800 I/O Spare Part

When a termination unit fails inside an ABB S800 I/O rack, the consequences extend far beyond a single module. The TU891 serves as the physical and electrical interface between field wiring and the I/O module above it. Without a direct replacement, the entire I/O station becomes inoperable — and in a process plant running ABB System 800xA or the earlier Advant OCS / Master architecture, that means a forced shutdown. Engineering teams that have not secured a spare face a stark choice: source a compatible unit immediately, or begin a capital-intensive migration project that routinely costs USD 500,000 to several million dollars once engineering, re-commissioning, and lost production are factored in. DriveKNMS holds verified physical stock of the TU891 3BSC840157R1. This is not a catalogue listing — the unit is on the shelf.

Technical Specifications

Electrical parameters are not published here to prevent misapplication. Confirmed specifications are provided upon request alongside the unit's documentation package.

Solving the Discontinued Hardware Crisis

The ABB S800 I/O family was the backbone of distributed control across refining, pulp and paper, power generation, and chemical processing for more than two decades. The TU891 termination unit is the mechanical and electrical foundation of that architecture — it carries the field terminal connections and mates directly with the I/O module seated above it. ABB has discontinued this product line, and the secondary market supply is finite and shrinking each year.

Plant managers operating System 800xA or legacy Advant installations understand the risk: a single failed termination unit can take an entire I/O cluster offline. The control system cannot simply be patched around it. The field wiring is landed on the TU891 itself, meaning there is no workaround that does not involve either a replacement unit or a full re-termination exercise — which itself requires a planned outage, engineering hours, and re-validation of the loop.

The strategic case for holding at least two TU891 units in your critical spares inventory is straightforward. The cost of one spare is measured in hundreds of dollars. The cost of an unplanned outage on a process line — lost throughput, emergency engineering mobilisation, expedited freight, and regulatory reporting — is measured in hundreds of thousands. Facilities that have adopted a structured obsolete-parts buffer strategy consistently report that the programme pays for itself within the first avoided incident.

For plant engineers and reliability managers facing pressure to defer capital expenditure on system upgrades, the TU891 spare represents the lowest-cost path to maintaining system integrity through the next planned maintenance window — and the one after that.

Condition & Reliability Assurance

Every TU891 unit that leaves DriveKNMS passes through a five-stage inspection protocol before it is offered for sale. This process was developed specifically for obsolete ABB S800 I/O hardware, where age-related degradation follows predictable failure modes.

Step 1 – Visual and mechanical inspection: Terminal blocks, module retention clips, and DIN rail mounting hardware are examined for physical damage, deformation, and corrosion. Units with compromised terminal integrity are rejected at this stage.

Step 2 – Electrolytic capacitor assessment: Where applicable, capacitor condition is evaluated. Aged electrolytic capacitors are a primary failure mechanism in legacy automation hardware; any unit showing signs of bulging, leakage, or elevated ESR is quarantined.

Step 3 – Pin and connector inspection: All backplane connector pins are inspected under magnification for oxidation, fretting corrosion, and mechanical deformation. Pin condition is critical for reliable signal integrity in S800 I/O applications.

Step 4 – Firmware and label verification: Where the unit carries revision markings, these are cross-referenced against known ABB revision histories to confirm compatibility with the target system version.

Step 5 – Functional continuity check: Terminal-to-terminal continuity is verified to confirm the internal wiring paths are intact prior to packaging.

Units are packaged in anti-static bags with physical protection against transit damage. Condition grade (New / Refurbished-Grade A) is declared on the invoice.

Key Features for System Maintenance

The TU891 3BSC840157R1 is a direct, drop-in replacement for the original unit installed in your S800 I/O rack. Field wiring re-lands onto the same terminal positions. The I/O module above seats onto the same backplane connector. No firmware changes are required on the controller side. No re-engineering of the I/O configuration is necessary.

This matters because the alternative — migrating to a current-generation I/O platform — is not a simple hardware swap. It involves re-engineering the I/O configuration in the DCS, re-validating every loop, updating the system documentation, and scheduling a commissioning outage. For a facility running 24/7 operations, that process is measured in weeks of engineering time and a planned production stop. A TU891 replacement eliminates all of that. The module goes in, the wiring re-lands, and the system returns to service.

For maintenance teams operating under tight budgets and tighter schedules, this is the difference between a two-hour corrective maintenance task and a six-week capital project.

FAQ

What warranty applies to an obsolete part?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. This applies to both new-old-stock and Grade A refurbished units. Warranty claims are handled directly — no third-party process.

How do I know the unit is genuine ABB and not a counterfeit?
All units are sourced through traceable industrial channels. ABB part markings, revision labels, and order codes are verified against manufacturer documentation. We do not source from unverified grey-market aggregators. Documentation is available upon request.

Should I buy more than one unit?
For any S800 I/O installation with more than one TU891 installed, holding a minimum of two spares is the standard recommendation for critical-spares programmes. ABB no longer manufactures this unit. Secondary market availability will continue to decline. Procurement cost today is materially lower than procurement cost in 18 months.

Can you supply multiple units for a plant-wide spares programme?
Contact us with your quantity requirement. We will confirm available stock and can discuss staged delivery or reserved allocation for larger orders.
