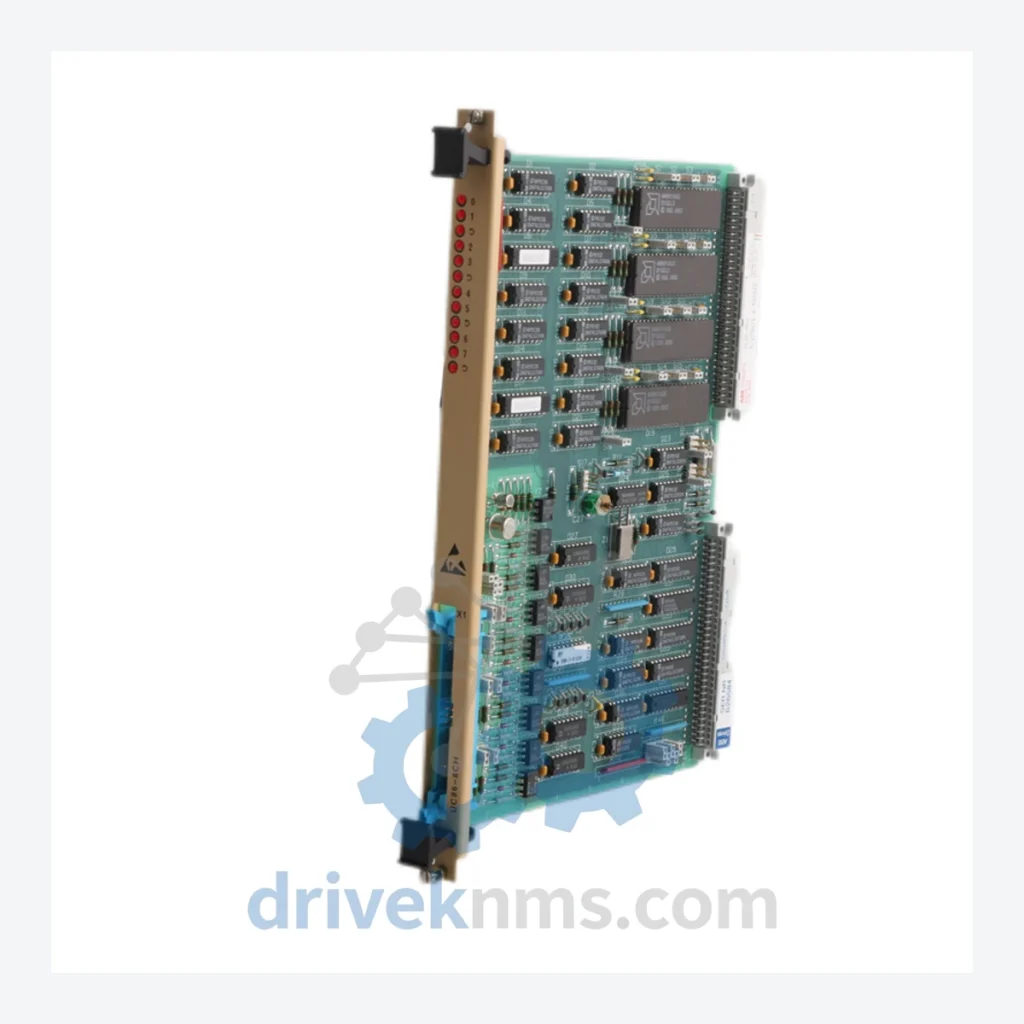

ABB UC86-8CH 57275871 Counter Board – Obsolete Advant Series Spare Part

Technical Dossier

Product Details And Specifications

ABB UC86-8CH 57275871 Counter Board – Obsolete Advant Series Spare Part

When an 8-channel counter board fails inside an ABB Advant-based control system, the consequences extend far beyond a single module replacement. A full system migration — encompassing engineering redesign, new PLC hardware, software re-commissioning, operator retraining, and production downtime — routinely costs manufacturing operations between $500,000 and $3,000,000 USD. The ABB UC86-8CH (57275871) is a discontinued module, and sourcing it through conventional distribution channels is no longer possible. DriveKNMS maintains verified stock of this board, providing a direct path to restoring production without triggering a capital-intensive system overhaul.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on known ABB Advant series documentation. No parameters have been fabricated. Buyers requiring certified datasheets should contact us directly.

Solving the Discontinued Hardware Crisis

The ABB Advant Controller platform was a dominant force in process automation throughout the 1990s and early 2000s, deployed extensively in pulp and paper, oil and gas, chemical processing, and power generation facilities. Many of these installations remain operational today — not because replacement is impossible, but because the cost and risk of migration are prohibitive.

The UC86-8CH counter board occupies a specific functional role within the Advant I/O architecture. It handles pulse counting and frequency measurement tasks that are tightly integrated into the application software running on the AC-series controllers. Replacing this board with a modern equivalent is not a plug-and-swap operation — it requires software reconfiguration, signal rewiring, and in many cases, a full functional safety review. For a plant running 24/7 with contractual uptime obligations, this is not a risk that can be absorbed casually.

The practical reality for maintenance engineers is this: one failed UC86-8CH board, left unaddressed, can halt a production line that generates tens of thousands of dollars per hour. Sourcing a verified replacement from DriveKNMS eliminates that exposure at a fraction of the cost of any alternative.

How to extend your ABB Advant system life by 5–10 years without a full migration:

• Identify your single points of failure. Audit which I/O boards and processor modules have no on-site spares. The UC86-8CH is frequently overlooked until it fails.
• Build a tiered spare parts inventory. Classify boards by criticality and lead time. Obsolete modules with zero supply chain availability belong in Tier 1 — procure at least two units per critical node.
• Establish a scheduled inspection cycle. Advant-era hardware is now 20–30 years old. Electrolytic capacitors, battery-backed RAM, and backplane connectors degrade on predictable timelines. Proactive inspection prevents unplanned failures.
• Negotiate a maintenance contract with a specialist supplier. DriveKNMS provides long-term spare parts reservation programs for facilities committed to sustaining legacy ABB infrastructure.
• Document your system configuration in full. Firmware versions, rack slot assignments, and I/O mapping should be archived off-system. This documentation is irreplaceable if a processor board fails and must be restored.

Condition & Reliability Assurance

Every UC86-8CH unit processed by DriveKNMS undergoes a structured 5-step quality verification protocol before dispatch:

1. Visual and mechanical inspection: Board surface, component seating, PCB trace integrity, and connector pin condition are examined under magnification. Corrosion, burn marks, and physical damage are grounds for rejection.
2. Electrolytic capacitor assessment: Capacitors on boards of this age are the most common failure point. Each capacitor is tested for capacitance drift and ESR deviation from specification. Units with degraded capacitors are either recapped or rejected.
3. Firmware and revision verification: Where applicable, firmware version and hardware revision markings are recorded and cross-referenced against known compatible revisions for the target Advant controller generation.
4. Pin and connector integrity check: All edge connectors and backplane pins are inspected for oxidation, bending, and contact resistance. Affected contacts are cleaned using approved methods.
5. Functional burn-in test: Units are powered and subjected to operational testing under controlled conditions prior to packaging.

Condition grades (New, Refurbished-Grade-A, Tested-Used) are disclosed on the invoice. No unit is shipped without a documented inspection record.

Key Features for System Maintenance

• Drop-in replacement: The UC86-8CH installs directly into the existing Advant rack slot with no hardware modification required.
• No reprogramming required: The application software running on the AC-series controller does not require modification. The board communicates via the standard Advant I/O bus protocol.
• Avoids engineering reconstruction costs: A verified spare eliminates the need to engage a systems integrator for migration work, which typically runs $150,000–$800,000 for a mid-size Advant installation.
• Preserves validated process configurations: In regulated industries (pharmaceutical, food processing, power), replacing a control system requires re-validation. Maintaining the existing hardware avoids this regulatory burden entirely.
• Immediate dispatch: In-stock units are available for same-day or next-business-day shipment via DHL Express, FedEx International Priority, or customer-nominated freight.

FAQ

What warranty applies to an obsolete part like the UC86-8CH?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New old-stock units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine ABB and not a counterfeit?
All units are sourced from decommissioned ABB Advant installations or verified surplus channels. ABB part markings, revision labels, and serial number formats are authenticated during intake inspection. We do not source from unverified brokers.

Should I buy more than one unit?
For any facility running an ABB Advant system, holding a minimum of two UC86-8CH boards is a defensible maintenance position. This module is no longer manufactured, and available global stock is finite. Procurement decisions made today determine whether a future failure becomes a manageable event or a production crisis.

Can you reserve stock for future delivery?
Yes. DriveKNMS offers a long-term reservation program for customers who require guaranteed access to specific obsolete modules over a 12–36 month horizon. Contact us to discuss terms.

Do you ship internationally?
Yes. DriveKNMS ships to all major industrial markets including the EU, Southeast Asia, the Middle East, and the Americas. Export documentation and customs declarations are handled by our logistics team.
