ABB VV11 VV 11

Technical Dossier

Product Details And Specifications

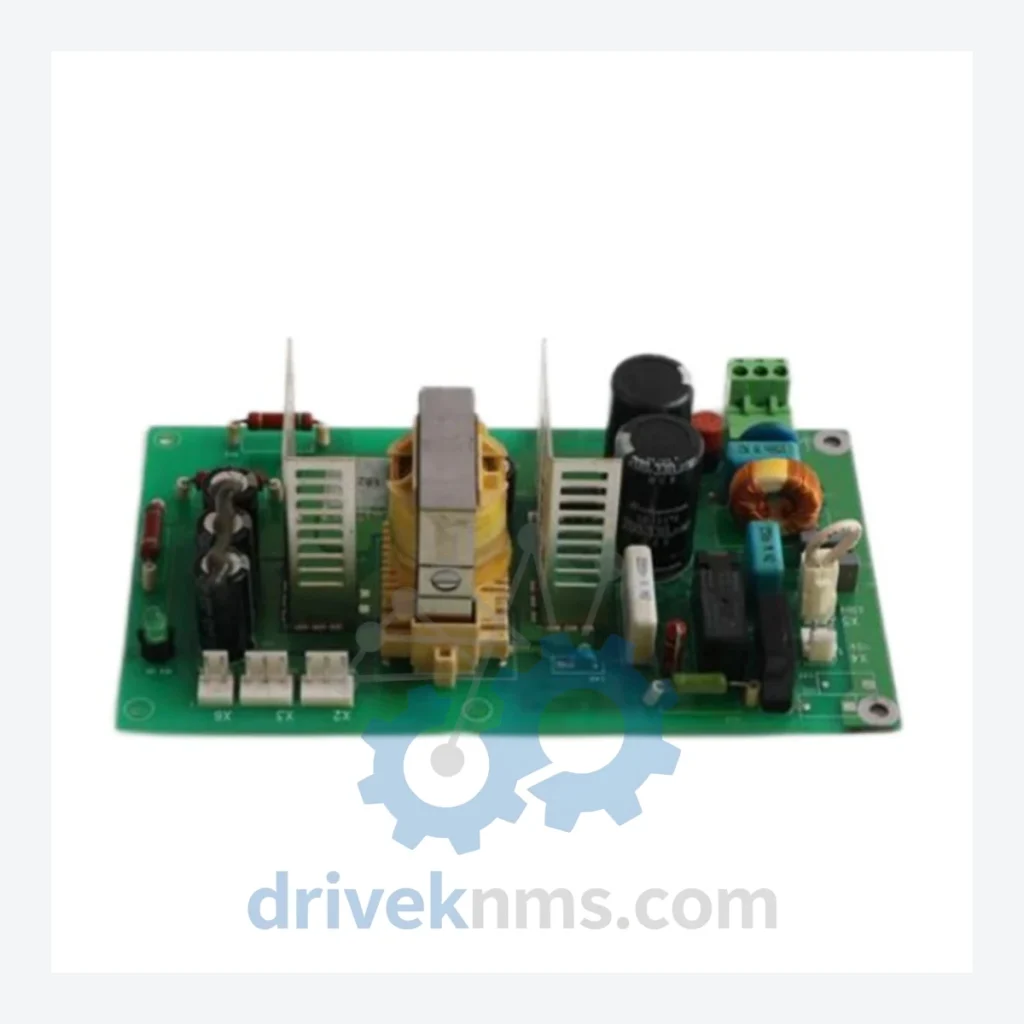

ABB H&B Contronic VV11 Series Technical Notes

The H&B Contronic VV11 (also referenced as VV 11) is a process automation module series developed by Hartmann & Braun (H&B), subsequently integrated into the ABB group following the acquisition of H&B's process automation division. The VV11 series occupies a critical position in legacy distributed control system (DCS) architectures deployed across global heavy industry sectors, including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and large-scale chemical processing plants. Installations of the Contronic E and Contronic P platforms — which the VV11 module family supports — remain operational across Europe, the Middle East, and Asia-Pacific, with documented service lives exceeding 25 years. The continued demand for VV11 spare parts is driven by the prohibitive cost of full DCS migration projects and the operational risk associated with replacing proven control infrastructure during active production cycles.

The Evolution of VV11 Architecture

The H&B Contronic platform was introduced in the late 1970s as a modular, rack-based process control system designed for continuous industrial processes. The VV11 designation refers to a specific functional module class within the Contronic E (Enhanced) and Contronic P (Process) system generations. Early VV11 variants operated on proprietary H&B backplane bus standards, with inter-module communication governed by parallel data bus architectures typical of that era. As the platform matured through the 1980s and into the 1990s, successive hardware revisions introduced improved noise immunity, expanded I/O channel density, and enhanced diagnostic capabilities via front-panel LED status indicators.

Following ABB's acquisition of Hartmann & Braun in 1996, the Contronic product line was maintained under the ABB Automation Products umbrella. ABB continued to supply VV11 series modules as spare parts while simultaneously developing migration pathways toward the ABB Symphony Plus (S+) platform. The Symphony Plus system represents the modern successor architecture, offering backward-compatible engineering tools and structured migration kits for Contronic installations. However, the physical module form factor, backplane connector pinout, and firmware of VV11 series hardware are not interchangeable with Symphony Plus hardware, making original VV11 spare parts the only viable option for like-for-like replacement in non-migrated systems.

Compatibility constraints are a defining characteristic of VV11 lifecycle management. Modules are slot-specific in many rack configurations, and firmware versions must be matched to the host system's software revision. Cross-generation substitution between early H&B-branded and later ABB-branded VV11 variants requires engineering validation and is not universally supported.

H&B Contronic VV11 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified modules within the H&B Contronic VV11 and closely associated Contronic E/P module families. Each entry reflects a distinct hardware function within the system architecture:

VV11: Core process controller module, Contronic E/P platform base unit.
VV 11: Alternate part number notation for the VV11 controller module (same hardware).
VV12: Extended memory process controller, VV11 successor variant with expanded RAM.
VV13: High-speed process controller module for fast-loop control applications.
AI620: Analog input module, 8-channel, 4–20 mA, HART-compatible signal conditioning.
AI630: Analog input module, 16-channel, thermocouple and RTD input types.
AO610: Analog output module, 8-channel, 4–20 mA current output, isolated.
AO620: Analog output module, 16-channel, voltage and current configurable outputs.
DI610: Digital input module, 32-channel, 24 VDC, optically isolated inputs.
DI620: Digital input module, 16-channel, 110/220 VAC compatible, isolated.
DO610: Digital output module, 32-channel, 24 VDC transistor outputs, short-circuit protected.
DO620: Digital output module, 16-channel, relay contact outputs, 250 VAC rated.
CI630: Communication interface module, PROFIBUS-DP master/slave adapter.
CI640: Communication interface module, Modbus RTU/TCP gateway for Contronic backplane.
PS610: Power supply module, 24 VDC rack power, redundant configuration support.
PS620: Power supply module, 48 VDC input variant, for telecom-standard power environments.
TB820: Termination board, field wiring interface for AI/AO modules, screw terminal.
TB840: Termination board, field wiring interface for DI/DO modules, high-density.
DP820: Distributed peripheral unit, remote I/O expansion node for Contronic E systems.
SC610: Signal conditioner module, galvanic isolation and signal conversion for field inputs.

Quality Control for the VV11 Range
