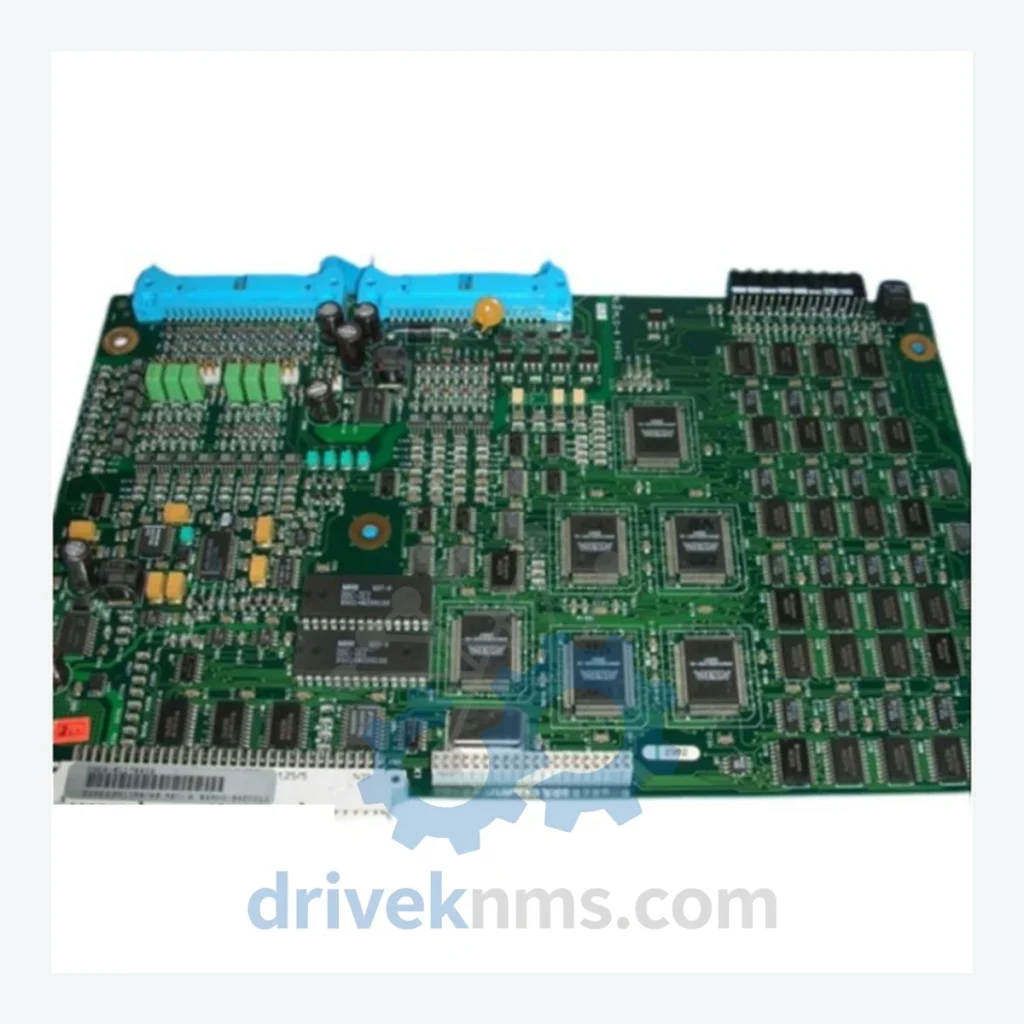

ABB Masterpiece Series Modules

Technical Dossier

Product Details And Specifications

ABB Masterpiece Series: Comprehensive Module Range and Technical Overview

The ABB Masterpiece series — encompassing the Masterpiece 200 (MP200) and its associated Advant Controller 160 (AC160) platform — represents one of ABB's most widely deployed distributed control system (DCS) architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale refinery operations, the Masterpiece platform established ABB's position as a tier-one DCS supplier throughout the 1980s and 1990s. Its modular backplane architecture, deterministic scan cycle, and robust I/O subsystem made it the reference standard for process-critical applications requiring high availability and long operational lifecycles. Installed base units remain operational in facilities across Europe, Asia-Pacific, and the Middle East, creating sustained demand for spare parts, replacement modules, and lifecycle extension services.

The Evolution of Masterpiece Series Architecture

The Masterpiece platform originated from ABB's ASEA heritage, with the MP200 introduced in the early 1980s as a modular, rack-based process controller. The architecture was built around a proprietary RCOM (Remote Communication) bus and a parallel backplane that allowed hot-swap of I/O modules without process interruption — a significant engineering achievement for its era.

The AC160 generation succeeded the MP200, introducing a 32-bit processor architecture, enhanced memory capacity, and compatibility with ABB's MasterBus 300 fieldbus protocol. This transition created a compatibility boundary: MP200-era I/O modules (YPH, YPK, YPL prefix families) are physically and electrically incompatible with later AC450 and AC800M platforms, which migrated to IEC 61131-3 programming and Ethernet-based communication. Facilities operating mixed-generation ABB DCS infrastructure must maintain separate spare parts inventories for each platform generation. The YPH108B/SPC specifically belongs to the MP200/AC160 I/O module family, functioning as a signal processing and conditioning card within the Masterpiece backplane ecosystem.

Masterpiece Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB Masterpiece MP200 / AC160 platform. Modules are classified by functional category:

Signal Processing & Conditioning Modules

• YPH108B/SPC: Analog signal processing card, MP200 backplane-compatible, 8-channel configuration
• YPH110A: Analog input module, 4–20 mA process signal interface, 16-channel
• YPH112A: High-density analog input, thermocouple/RTD compatible, 8-channel
• YPH115B: Analog output module, 4–20 mA, 8-channel, loop-powered

Digital I/O Modules

• YPK114A: Digital input module, 24 VDC, 32-channel, isolated
• YPK116A: Digital output module, 24 VDC relay, 16-channel
• YPK118B: Digital input/output mixed module, 16 DI / 16 DO, 24 VDC
• YPK120A: High-speed digital input, pulse counting, 8-channel

CPU & Controller Modules

• YPP110A: MP200 main processor module, 32-bit CPU, 512 KB RAM
• YPP112A: Redundant processor module, hot-standby configuration
• YPP115B: Enhanced CPU module, extended memory, AC160-compatible

Communication & Fieldbus Adapters

• YPL112A: MasterBus 300 communication adapter, coaxial interface
• YPL114B: RCOM bus interface module, MP200 backplane
• YPL116A: PROFIBUS DP adapter, AC160 platform
• YPL118A: Modbus RTU communication module, RS-485 interface

Power Supply Modules

• YPT110A: 24 VDC rack power supply, 10 A, redundancy-capable
• YPT112B: Redundant power supply module, automatic failover, MP200 rack
• YPT115A: 48 VDC input power conditioner, surge-protected

Sourcing Hard-to-Find & Obsolete Masterpiece Series Parts

ABB formally discontinued active production of the Masterpiece MP200 and AC160 module families. Replacement with the AC800M platform is ABB's recommended migration path; however, the capital cost and process downtime associated with full DCS migration make like-for-like spare part replacement the preferred strategy for the majority of operating facilities during the interim period.

DriveKNMS maintains a dedicated inventory of Masterpiece series modules including the YPH108B/SPC, sourced through certified industrial surplus channels, decommissioned plant buybacks, and authorized distributor overstock. All units are subject to pre-shipment functional verification. DriveKNMS provides lifecycle extension support including: obsolescence risk assessment for installed Masterpiece fleets, cross-reference mapping to compatible substitute modules where applicable, and long-term supply agreements for facilities requiring guaranteed availability over multi-year maintenance windows.

Quality Control for the Masterpiece Series Range

Masterpiece series modules present specific test challenges due to their proprietary backplane bus protocol and non-standard I/O signal conditioning circuitry. DriveKNMS applies a structured verification protocol for all YPH, YPK, YPL, YPP, and YPT family modules:

• Backplane bus continuity and impedance verification using MP200-compatible test fixtures
• Analog channel calibration check against NIST-traceable reference signals (4–20 mA, 0–10 V)
• Digital I/O channel functional test under rated load conditions (24 VDC, rated current)
• Communication module loopback test on MasterBus 300 and RCOM bus segments
• Power supply output regulation test under full load and transient conditions
• Visual inspection per IPC-A-610 Class 2 workmanship standard
• Firmware version verification and documentation for CPU modules

Test records are retained per unit and available upon request for quality-critical procurement processes.
