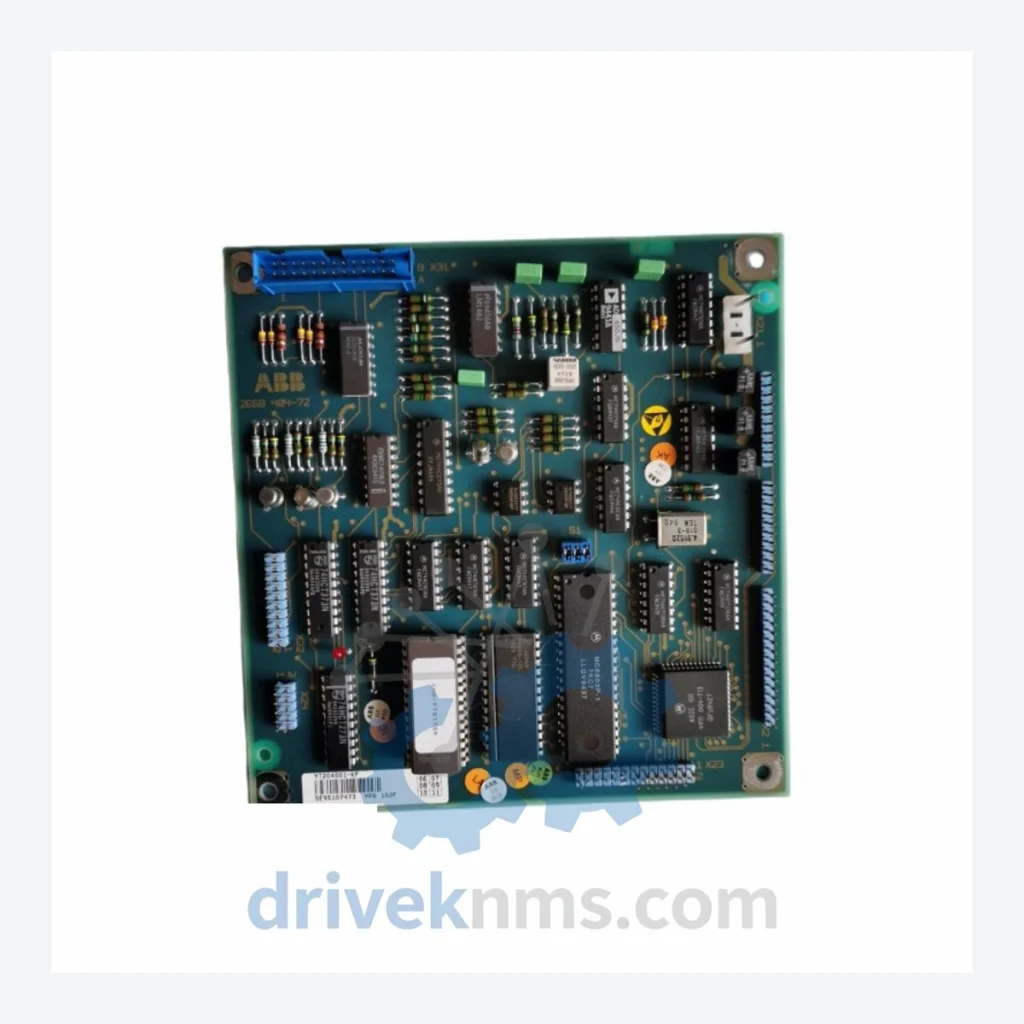

ABB YPQ Series Field Control Boards

Technical Dossier

Product Details And Specifications

ABB YPQ Series: Comprehensive Module Range and Technical Overview

The ABB YPQ series of Field Control Boards occupies a critical position in global heavy industry automation infrastructure. Deployed extensively across chemical processing plants, oil refineries, nuclear power facilities, and large-scale utilities, the YPQ series serves as the backbone of ABB's distributed control system (DCS) field-level architecture. These boards interface directly with field instruments — transmitters, actuators, and sensors — translating analog and digital signals into structured data for higher-level controllers. Their ruggedized design, wide operating temperature tolerance, and compatibility with ABB's INFI-90, Harmony, and System 800xA platforms have made them a long-term standard in facilities where replacement cycles span decades, not years.

The Evolution of YPQ Series Architecture

The YPQ series was introduced as part of ABB's INFI-90 open distributed control system, a platform designed in the late 1980s and refined through the 1990s to address the growing complexity of process automation in continuous-operation industries. Early YPQ boards operated on a proprietary backplane bus with fixed I/O addressing, requiring manual jumper configuration for channel assignment. As the platform matured into the Harmony DCS generation, the YPQ series was updated to support semi-automatic address recognition and improved EMI shielding to meet IEC 61000-4 immunity standards.

By the mid-2000s, ABB began transitioning customers toward the System 800xA architecture, which introduced Ethernet-based field communication and redundant controller topologies. However, the YPQ series remained in active production and support due to the enormous installed base in brownfield facilities. Many plants operating YPQ-based control loops have chosen lifecycle extension over full migration, citing the cost and risk of replacing validated control logic in regulated environments such as nuclear and pharmaceutical manufacturing. ABB's Extended Lifecycle Support (ELS) program formally covers select YPQ variants, and third-party MRO suppliers such as DriveKNMS provide sourcing continuity for discontinued part numbers.

YPQ Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the core and extended range of the ABB YPQ series. Each module is classified by primary function. Only verified, real-world part numbers are listed.

Field Control & Analog I/O Boards

• YPQ102F: Field control board, analog signal conditioning, INFI-90 compatible backplane interface
• YPQ100F: Base field control board, standard analog I/O, predecessor to YPQ102F
• YPQ101F: Field control board with enhanced noise filtering for high-EMI environments
• YPQ103F: Extended-range analog input board, supports 4–20 mA and 0–10 V field signals
• YPQ104F: Dual-channel analog output field board, used in valve positioner control loops
• YPQ105F: High-density analog input board, 16-channel configuration for compact panel installations

Digital I/O Modules

• YPQ110F: 24 VDC digital input board, 16-point, DIN rail mountable, INFI-90 bus compatible
• YPQ111F: 24 VDC digital output board, 16-point relay-isolated, for discrete actuator control
• YPQ112F: Mixed digital I/O board, 8DI/8DO, used in interlock and permissive logic circuits
• YPQ113F: High-voltage digital input board, 120 VAC input compatible, field-hardened design

Communication & Interface Modules

• YPQ120F: INFI-90 bus communication adapter, bridges field boards to plant control network
• YPQ121F: Redundant communication interface board, supports hot-standby controller configurations
• YPQ122F: Serial communication board, RS-232/RS-485 dual-port, for legacy device integration

Power Supply & Auxiliary Boards

• YPQ130F: Field panel power distribution board, 24 VDC regulated output, short-circuit protected
• YPQ131F: Redundant power input board, automatic switchover, for critical loop power continuity
• YPQ132F: Auxiliary signal conditioning board, used with thermocouple and RTD field inputs

Sourcing Hard-to-Find & Obsolete YPQ Series Parts

A significant portion of the YPQ series has reached end-of-production status with ABB. Part numbers including YPQ100F, YPQ101F, YPQ110F, and YPQ120F are no longer available through standard ABB distribution channels. For facilities operating INFI-90 or early Harmony systems, this creates a critical spare parts gap — particularly for unplanned failures in continuous-process environments where downtime is measured in tens of thousands of dollars per hour.

Quality Control for the YPQ Series Range

The YPQ series presents specific testing challenges due to its backplane-dependent architecture. Boards cannot be fully validated in isolation — functional testing requires a compatible INFI-90 or Harmony backplane, a live bus controller, and appropriate field signal simulation. DriveKNMS employs a structured test protocol for all YPQ boards:

• Visual Inspection: Component-level examination for corrosion, capacitor bulge, trace damage, and connector wear
• Power-On Test: Verification of onboard voltage rails and LED status indicators against factory specifications
• Backplane Bus Communication Test: Board is seated in a live INFI-90 test rack; bus address recognition and data exchange are confirmed
• Analog Channel Calibration: Each analog I/O channel is tested across the full signal range using calibrated signal generators and meters
• Digital I/O Functional Test: All digital channels are cycled through ON/OFF states; relay contact resistance is measured on output boards
• Burn-In Cycle: Boards are operated under load for a minimum of 24 hours to screen for latent component failures
• Final Documentation: Test results are recorded and shipped with each unit; traceability maintained for 5 years
