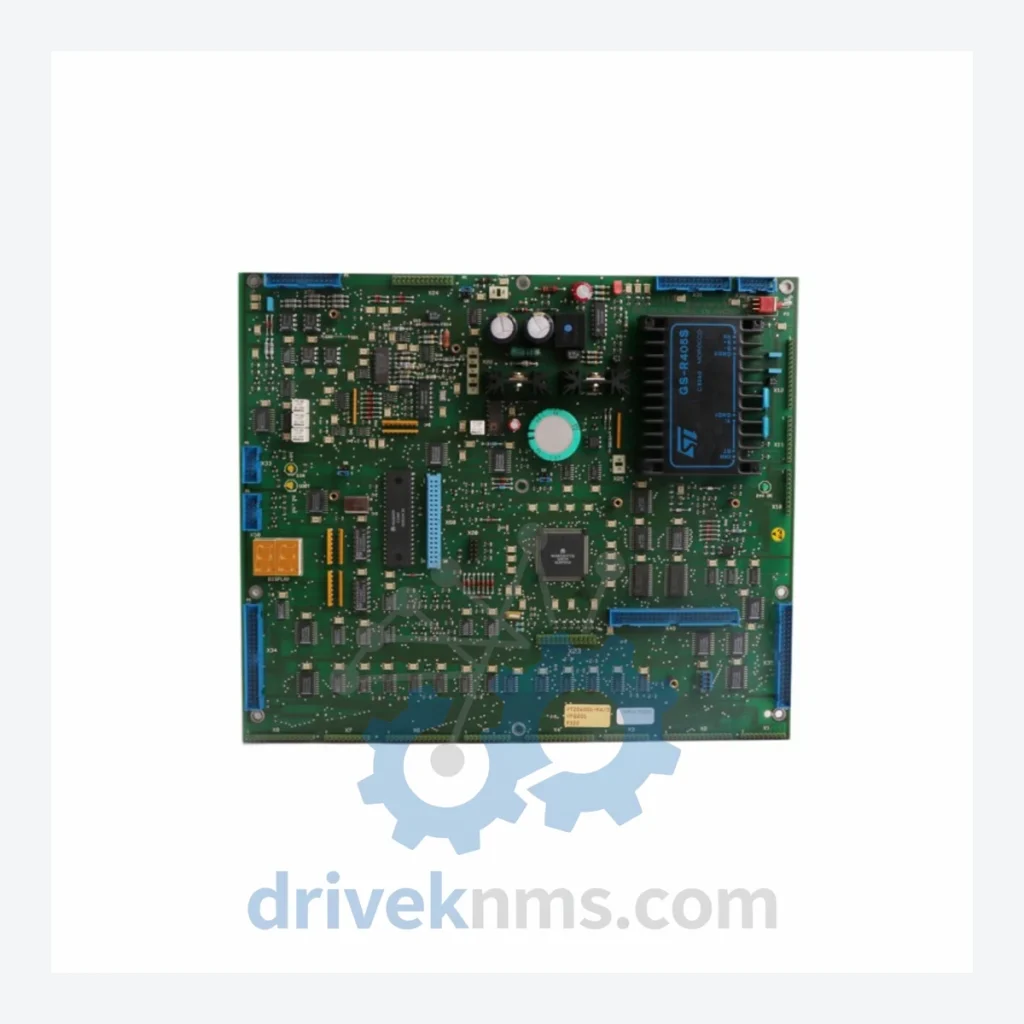

ABB YPQ201A

Technical Dossier

Product Details And Specifications

ABB YP Series Technical Notes

The Evolution of YP Series Architecture

The YP Series architecture traces its origins to ABB's analog excitation control platforms of the 1980s, where discrete analog circuitry handled voltage regulation and field forcing functions. The transition to hybrid analog-digital designs in the early 1990s introduced microprocessor-supervised control loops while retaining analog power stages for robustness in high-EMI generator environments. By the mid-1990s, fully digital YP modules — including the YPQ201A — incorporated DSP-based regulation algorithms, serial fieldbus interfaces (primarily PROFIBUS-DP and proprietary ABB communication protocols), and modular backplane architectures compatible with the UNITROL 5000 and UNITROL 6000 platform families.

Compatibility considerations are significant for maintenance engineers: early YP analog modules are not directly interchangeable with later digital variants without firmware and parameter migration. Backplane bus pinouts differ between UNITROL 5000 (18-slot) and UNITROL 6000 (24-slot) chassis generations. Cross-generation replacement requires ABB-certified parameter transfer procedures and, in some cases, chassis adapter kits. The YPQ201A specifically targets the UNITROL 5000 mid-generation platform and is not forward-compatible with UNITROL 6800 without hardware modification.

YP Series Full Catalog & Functionalities (SKU List)

Voltage Regulation & Control Processors

• YPQ201A: Digital AVR processor board, UNITROL 5000, DSP-based voltage regulation
• YPQ110A: Analog voltage regulator card, early UNITROL 5000, single-channel
• YPQ110B: Revised analog AVR card, improved thermal tolerance over YPQ110A
• YPQ202A: Dual-channel digital AVR board, redundant regulation for critical generators
• YPQ203A: Advanced AVR processor, extended diagnostics, UNITROL 5000/6000 bridge

Power Interface & Thyristor Firing Modules

• YPT101A: Thyristor firing pulse board, 6-pulse bridge configuration
• YPT102A: 12-pulse thyristor firing module, reduced harmonic distortion variant
• YPT103A: High-current thyristor gate driver, for exciter ratings above 500A DC
• YPT201A: Digital pulse transformer interface, replaces YPT101A in retrofit applications

I/O & Signal Conditioning Modules

• YPI101A: Analog input conditioning card, 8-channel, ±10V / 4–20mA selectable
• YPI102A: Digital I/O expansion module, 16 DI / 8 DO, 24VDC logic
• YPI201A: Measurement input board, CT/PT signal conditioning for generator protection
• YPI202A: Transducer interface module, reactive power and power factor measurement

Communication & Fieldbus Adapters

• YPC101A: PROFIBUS-DP communication adapter, slave mode, 12 Mbit/s
• YPC102A: Modbus RTU interface card, RS-485, for legacy SCADA integration
• YPC201A: Ethernet TCP/IP gateway module, IEC 61850 GOOSE messaging support

Power Supply Modules

• YPS101A: 24VDC internal power supply, 5A rated, for UNITROL 5000 chassis
• YPS102A: Redundant power supply module, hot-swap capable, dual-feed input

Quality Control for the YP Series Range

YP Series modules present specific quality control challenges due to their mixed analog-digital architecture and backplane bus communication dependencies. DriveKNMS applies a multi-stage inspection protocol tailored to this series:

• Visual & Physical Inspection: PCB trace integrity, capacitor condition assessment (electrolytic aging is a primary failure mode in YP analog boards), connector pin inspection, and conformal coating evaluation.
• Power-On Functional Test: Each module is energized on a dedicated UNITROL 5000 test chassis. Supply rail voltages (±15V analog, +5V digital, +24V I/O) are verified against ABB tolerance specifications.
• Backplane Communication Verification: For digital YP modules including the YPQ201A, backplane serial communication integrity is validated using ABB UNITROL diagnostic software. Register read/write cycles and interrupt response timing are logged.
• Analog Signal Path Calibration: For AVR and I/O modules, input-output linearity, offset, and gain are measured across the full operating range and compared against factory calibration records where available.
• Burn-In Cycle: Modules are subjected to a minimum 24-hour powered burn-in at elevated ambient temperature (45°C) to screen for early-life component failures prior to shipment.
