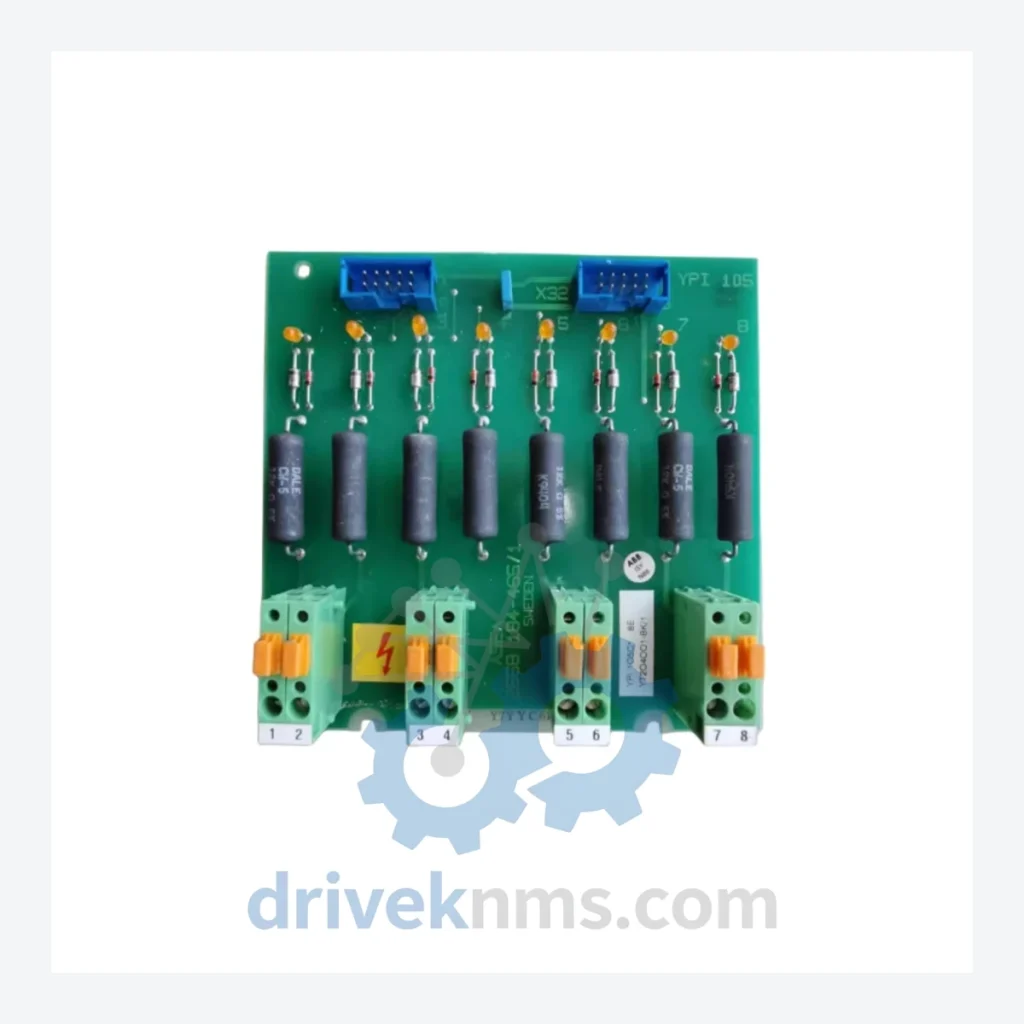

ABB YPQ201T 3ASD299001B2 Control Board – Obsolete IRC5 / S4C Spare Part

When a single control board failure forces a production line shutdown, the financial exposure is immediate. For facilities still operating ABB IRC5 or S4C robot controllers, sourcing a replacement YPQ201T (part reference 3ASD299001B2) through standard distribution channels is no longer possible — ABB has discontinued this component. A full robot cell upgrade to current-generation hardware routinely costs USD 150,000–400,000 per unit, excluding engineering, re-programming, and lost production time. DriveKNMS maintains verified stock of this board specifically to close that gap.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known system compatibility. Do not substitute without confirming your controller revision.

Solving the Discontinued Hardware Crisis

The ABB IRC5 and S4C controller platforms were deployed across automotive, metal fabrication, and electronics manufacturing lines throughout the 1990s and 2000s. Many of these installations remain in active production today — not because operators are unaware of newer platforms, but because the cost and disruption of a full migration cannot be justified against current production margins.

The YPQ201T board sits within the controller's core processing and I/O management architecture. When this component degrades or fails, the entire robot cell goes offline. Unlike peripheral components, this board cannot be bypassed or emulated with off-the-shelf hardware. The only operationally viable path — short of a full controller replacement — is a direct board swap.

Facilities that have mapped their critical single-point-of-failure components and pre-positioned spares have documented asset life extensions of 5 to 10 years beyond the manufacturer's support window. The capital cost of holding two YPQ201T boards is a fraction of one week of unplanned downtime on a high-throughput robot cell. For plant managers facing board-level failures on legacy ABB systems, the procurement decision is not whether to source this part — it is whether to source it before or after the failure event.

Condition & Reliability Assurance

Every YPQ201T unit processed by DriveKNMS passes a structured 5-stage inspection protocol before it is offered for sale:

• Stage 1 – Visual & Mechanical Inspection: Board surface examined for physical damage, burn marks, delamination, and component displacement.
• Stage 2 – Electrolytic Capacitor Assessment: All electrolytic capacitors checked for bulging, leakage, and ESR drift — the primary failure mode in boards of this age.
• Stage 3 – Pin & Connector Integrity: All edge connectors and pin headers inspected for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned or flagged for rejection.
• Stage 4 – Firmware Version Verification: Where applicable, firmware revision is documented and disclosed to the buyer prior to shipment to ensure compatibility with the target controller revision.
• Stage 5 – Functional Bench Test: Unit is powered and tested under controlled conditions. Results are logged and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The YPQ201T installs directly into the existing controller slot with no hardware modification required.
• No re-programming required: Robot programs, calibration data, and I/O configurations stored in the controller are not affected by a board-level swap.
• Avoids engineering reconstruction costs: A controller-level board replacement eliminates the need for system integrator involvement, new safety validation cycles, and production re-qualification — costs that routinely exceed the hardware price by a factor of 10 or more.
• Extends asset service life: Restoring a functional IRC5 or S4C controller preserves the full investment in tooling, end-effectors, fixtures, and process programs built around that robot cell.

FAQ

What warranty applies to a discontinued part?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 30-day warranty on New Old Stock units. Warranty covers board-level functional failure under normal operating conditions. Physical damage caused during installation is excluded.

How do I confirm this is a genuine ABB board and not a counterfeit?
All units are sourced from decommissioned OEM equipment or verified surplus channels. Board markings, PCB revision codes, and component date codes are inspected and documented. Buyers may request pre-shipment photos and documentation.

Should I hold more than one unit?
For any production line where this controller is a single point of failure, holding a minimum of two spare boards is standard practice. Controller boards of this generation are not being re-manufactured. Once existing global surplus stock is exhausted, no further supply will be available at any price. Procurement decisions deferred to the point of failure carry significant schedule and cost risk.

What is the lead time?
In-stock units ship within 2 business days of payment confirmation. Lead time for sourced units varies; contact us for current availability.
