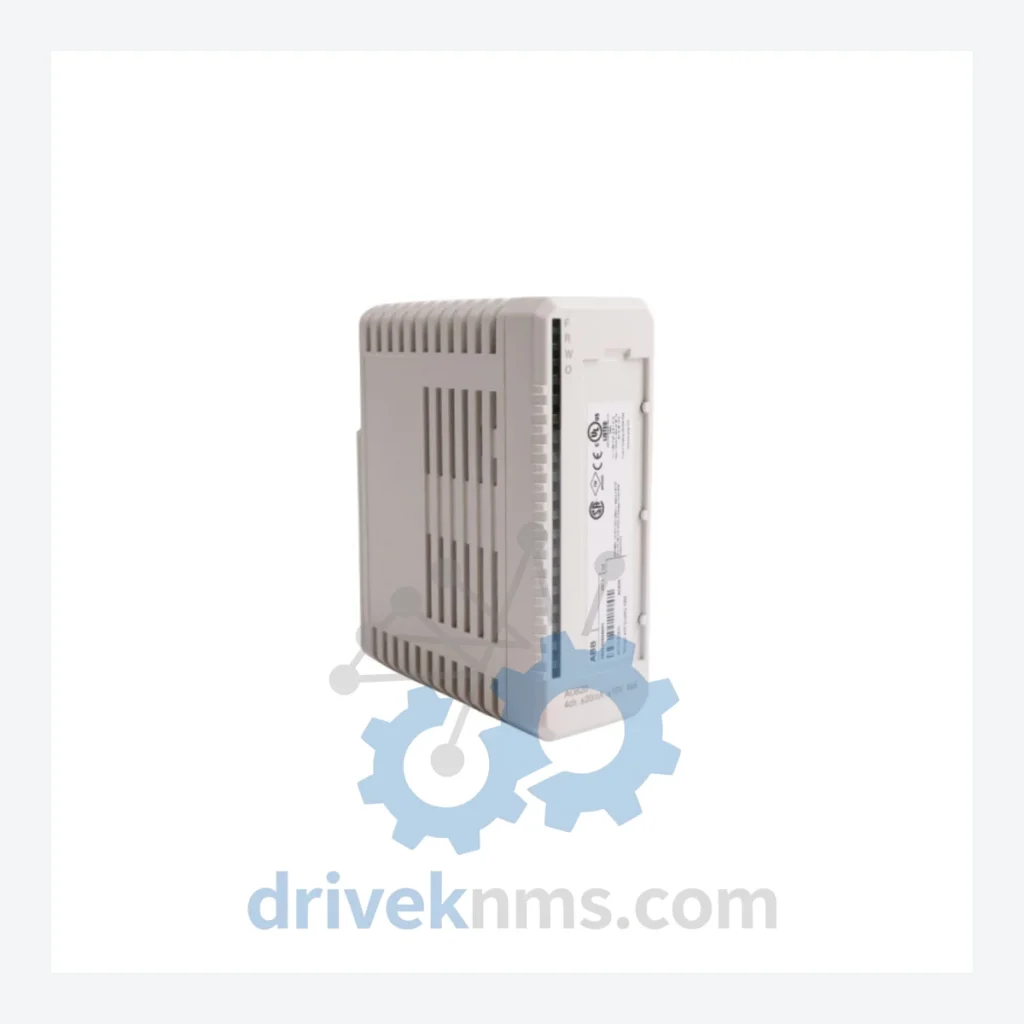

ABB YPQ203A 3ASD510001C17 Control Boards

Technical Dossier

Product Details And Specifications

ABB YPQ203A Series: Comprehensive Module Range and Technical Overview

The ABB YPQ203A series represents a family of pulse encoder interface and control boards deployed within ABB's ACS800 and ACS600 variable frequency drive (VFD) platforms. These boards are installed across high-demand industrial environments including petrochemical refineries, nuclear auxiliary systems, offshore platforms, pulp and paper mills, and steel rolling lines. The YPQ203A functions as a critical interface between the drive's main control unit and external encoder feedback systems, enabling closed-loop vector control with high-precision speed and torque regulation. Its global installed base spans tens of thousands of drive units, making long-term spare parts availability a primary operational concern for plant maintenance engineers.

The Evolution of YPQ203A Architecture

The YPQ203A board was introduced as part of ABB's second-generation drive control architecture, succeeding earlier NAMC and RMIO board families used in the ACS600 platform. The 3ASD510001C17 revision code denotes a specific hardware revision within the YPQ203A product line, incorporating updated ASIC logic and improved EMC filtering compared to earlier C-series revisions (C14, C15, C16). Compatibility is maintained across ACS800-01, ACS800-02, ACS800-04, ACS800-07, ACS800-11, and ACS800-17 drive frame sizes when paired with the corresponding RMIO-02C or RDCU-02C main control boards. Engineers integrating replacement boards must verify the firmware revision on the RDCU unit to ensure handshake compatibility, as revisions below 19.x may require parameter re-initialization after board swap. The YPQ203A series has entered the mature/end-of-active-production phase; ABB no longer manufactures new units under this part number, making certified refurbished and new-old-stock (NOS) inventory the primary sourcing channel for maintenance operations.

YPQ203A Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, real-world part numbers within the ABB YPQ203A and closely associated ACS800 control board ecosystem. Each entry reflects a distinct hardware configuration or revision:

• YPQ203A 3ASD510001C17: Pulse encoder interface board, HTL/TTL input, ACS800 platform, revision C17
• YPQ203A 3ASD510001C16: Pulse encoder interface board, HTL/TTL input, ACS800 platform, revision C16
• YPQ203A 3ASD510001C15: Pulse encoder interface board, earlier ASIC revision, ACS800 compatible
• YPQ203A 3ASD510001C14: Initial production revision, ACS800/ACS600 cross-compatible variant
• RTAC-01: Absolute encoder interface module, SSI protocol, ACS800 auxiliary slot
• RMIO-02C: Main control board for ACS800, hosts YPQ203A in encoder slot
• RDCU-02C: Drive control unit, primary CPU board for ACS800 modular drives
• RINT-5611C: Fiber optic interface board, DDCS communication, ACS800 inverter unit
• AINT-02C: Auxiliary inverter control board, ACS800 multi-drive cabinet
• APBU-44C: Branching unit for DDCS fiber ring topology, ACS800 multi-drive
• RDIO-01C: Digital I/O extension board, 8DI/6DO, ACS800 option slot
• RAIO-01C: Analog I/O extension board, 2AI/2AO, ACS800 option slot
• RCAN-01: CANopen fieldbus adapter, ACS800 option slot D
• RPBA-01: PROFIBUS-DP adapter module, ACS800 option slot
• RMBP-01: Modbus Plus adapter, ACS800 fieldbus option
• RDNA-01: DeviceNet adapter module, ACS800 option slot
• RETA-01: Ethernet adapter, Modbus TCP/EtherNet/IP, ACS800
• NAMC-11: Main control board, ACS600 predecessor platform to RMIO series
• NAMC-51: Extended memory control board, ACS600 high-performance variant

Sourcing Hard-to-Find & Obsolete YPQ203A Parts

DriveKNMS maintains a dedicated inventory program for end-of-life ABB ACS800 control boards, including all known revisions of the YPQ203A series. As ABB has transitioned its drive portfolio toward the ACS880 and ACS580 platforms, original YPQ203A boards are no longer available through standard distribution channels. DriveKNMS sources units through decommissioned plant buybacks, authorized surplus liquidations, and direct factory-sealed new-old-stock (NOS) acquisitions. All units are catalogued by revision code and batch date to ensure traceability. For facilities operating ACS800 drives under long-term service agreements (LTSA) or requiring IEC 61511 functional safety compliance documentation, DriveKNMS provides full material traceability records upon request. Customers requiring cross-reference to ACS880 RDCU-12C or BCON-12 replacement architectures can request a migration assessment.

Quality Control for the YPQ203A Range

Each YPQ203A board processed by DriveKNMS undergoes a structured inspection and functional verification protocol. Visual inspection covers solder joint integrity, capacitor condition, ASIC package seating, and connector pin alignment on the 48-pin backplane interface. Functional testing is performed using an ABB-compatible drive test bench that replicates the ACS800 backplane bus environment, verifying encoder signal pass-through at 5V TTL and 24V HTL levels across the full frequency range of 0–300 kHz. EEPROM parameter retention is verified after a 72-hour power cycle soak test. Boards exhibiting any deviation in encoder channel symmetry, differential signal integrity, or backplane communication handshake are quarantined and not released for sale. Factory-sealed units such as the YPQ203A 3ASD510001C17 are verified against original ABB packaging authentication markers before listing.
