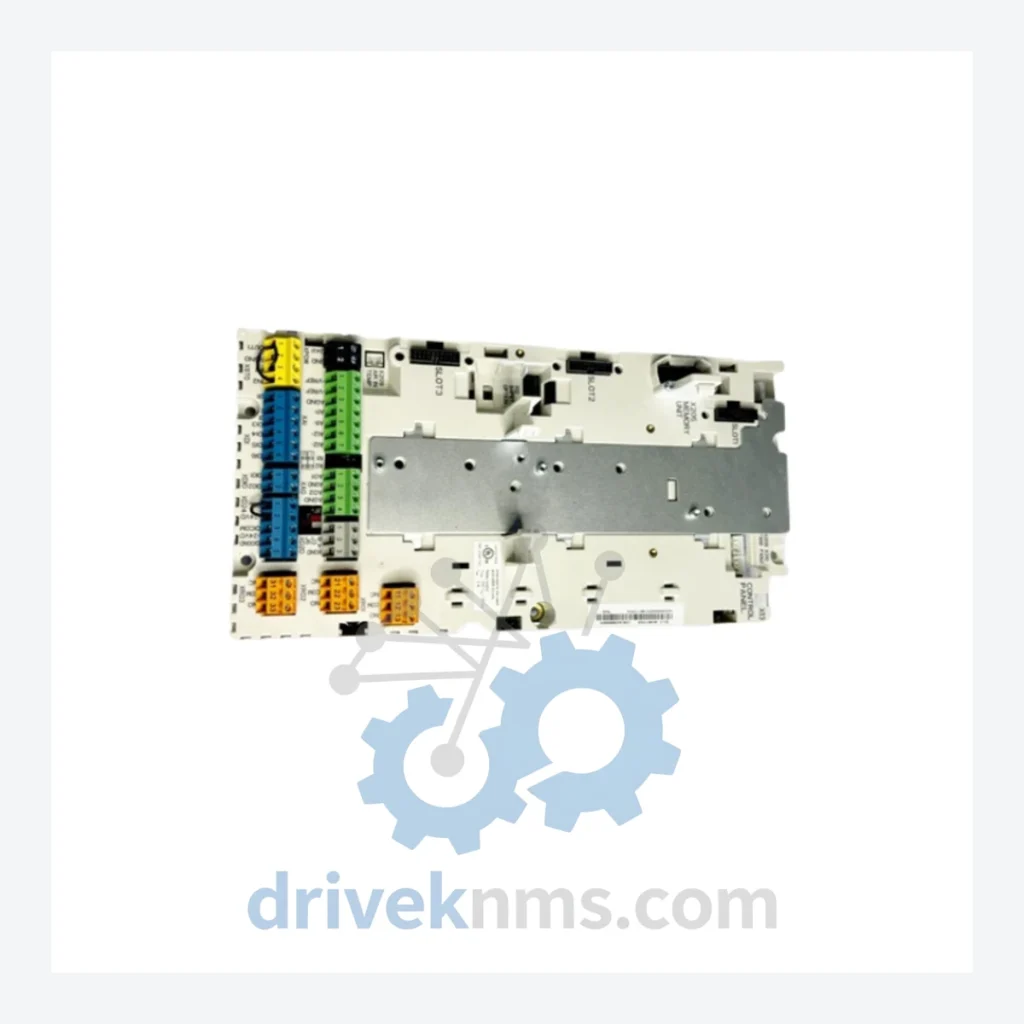

ABB ZCU Series Control Units: ZCU-12 3AXD50000005751

Technical Dossier

Product Details And Specifications

ABB ZCU Series: Comprehensive Module Range and Technical Overview

The ABB ZCU (Zone Control Unit) series is the dedicated control platform for ABB's ACS800 and ACS880 industrial variable speed drives. Deployed across global heavy industry — including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and large-scale cement and mining operations — ZCU modules serve as the central intelligence layer governing motor control, fieldbus communication, I/O interfacing, and drive protection logic. The ZCU series is embedded in tens of thousands of installed drive cabinets worldwide, making long-term spare parts availability a critical operational concern for plant maintenance engineers and reliability teams.

The Evolution of ZCU Architecture

The ZCU control board lineage originates from ABB's RMIO (Rectifier Motor I/O) board architecture used in the ACS600 and early ACS800 platforms. As drive technology matured through the 2000s and 2010s, ABB transitioned to the ZCU form factor, consolidating motor control, encoder feedback, and fieldbus adapter interfacing onto a single compact board. The ZCU-12 and ZCU-14 variants represent the primary control boards for the ACS880 single-drive series, while earlier ZCU-10 and ZCU-11 variants served ACS800 multi-drive configurations. Key architectural milestones include the integration of the DDCS (Distributed Drives Communication System) fiber-optic link, support for FSO-xx functional safety modules, and compatibility with the Drive Composer PC tool for parameter management. As the ACS800 platform has entered end-of-life status and the ACS880 approaches maturity, ZCU modules are increasingly sourced as maintenance spares rather than new-build components — a lifecycle phase that demands verified refurbished inventory and rigorous functional testing.

ZCU Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented ZCU series control and interface modules. Each entry reflects a distinct hardware revision or functional variant within the ABB drive control ecosystem:

ZCU-12 3AXD50000005751: ACS880 primary control unit, single-drive, standard I/O configuration
ZCU-12 3AXD50000038968: ACS880 control unit, revised firmware-compatible hardware revision
ZCU-14 3AXD50000038969: ACS880 control unit with extended I/O, dual encoder support
ZCU-14 3AXD50000005752: ACS880 multi-drive control board, DDCS fiber-optic interface
ZCU-10 3AFE68315735: ACS800 single-drive control board, legacy RMIO replacement
ZCU-11 3AFE68315736: ACS800 multi-drive control board, DDCS-compatible
ZCU-02 3AFE64527098: ACS800 control unit, early-generation, limited fieldbus support
ZCU-12 3AXD50000019792: ACS880 control unit, North American market variant
ZCU-14 3AXD50000019793: ACS880 extended I/O board, North American market variant
ZCU-12 3AXD50000044539: ACS880 control unit, latest production revision as of 2023
ZCU-14 3AXD50000044540: ACS880 extended control unit, latest production revision
RDCU-12C 3AFE64527098: ACS800 drive control unit, predecessor to ZCU-10/11 family
RMIO-11C 3AFE64527098: ACS600/ACS800 rectifier motor I/O board, early ZCU ancestor
ZCU-12 3AXD50000005751-R: Factory-refurbished ZCU-12, ABB-certified remanufactured unit
ZCU-14 3AXD50000038969-R: Factory-refurbished ZCU-14, extended I/O, ABB-certified
APBU-44C 3AFE68259739: Branching unit for DDCS fiber ring, used with ZCU multi-drive systems
RDCU-02C 3AFE64527098: ACS800 drive control unit, compact variant for bookshelf drives

Sourcing Hard-to-Find & Obsolete ZCU Series Parts

DriveKNMS maintains a dedicated inventory of ZCU series control boards covering both active production variants and discontinued part numbers. The ACS800 platform, which relies on ZCU-10 and ZCU-11 boards, has been formally discontinued by ABB, with OEM spare parts availability declining year-over-year. For plant operators running ACS800 installations with 10–20 year remaining service horizons, third-party verified spares represent the only viable maintenance path. DriveKNMS sources ZCU modules through authorized surplus channels, decommissioned equipment recovery, and direct OEM overstock acquisition. All units are catalogued by part number, hardware revision, and firmware compatibility level prior to listing. Cross-reference support is available for customers identifying ZCU replacements by drive model number (e.g., ACS880-01, ACS880-07, ACS800-01) rather than board part number.

Quality Control for the ZCU Series Range

ZCU control boards integrate multiple subsystems — DDCS fiber-optic transceivers, encoder feedback circuits, analog and digital I/O channels, fieldbus adapter slots (FCAN, FDNA, FPBA), and the main drive CPU — each of which requires independent verification. DriveKNMS applies a structured test protocol to all ZCU units: (1) Visual inspection for capacitor degradation, PCB trace damage, and connector pin integrity; (2) Power-on functional test using a compatible ACS880 or ACS800 drive chassis to verify boot sequence and firmware load; (3) I/O channel verification across all DI, DO, AI, and AO points using calibrated signal injection; (4) DDCS fiber-optic link test at rated baud rate; (5) Encoder feedback channel continuity check; (6) Fieldbus adapter slot functional test where applicable. Units that pass all stages are issued a DriveKNMS test certificate with date, technician ID, and test configuration record. Units with partial functionality are listed separately with explicit fault disclosure.
